Pneumatic Jumbo Bag Packing Machine 50 Bag/H Calcium Carbonate Powder

Product Description

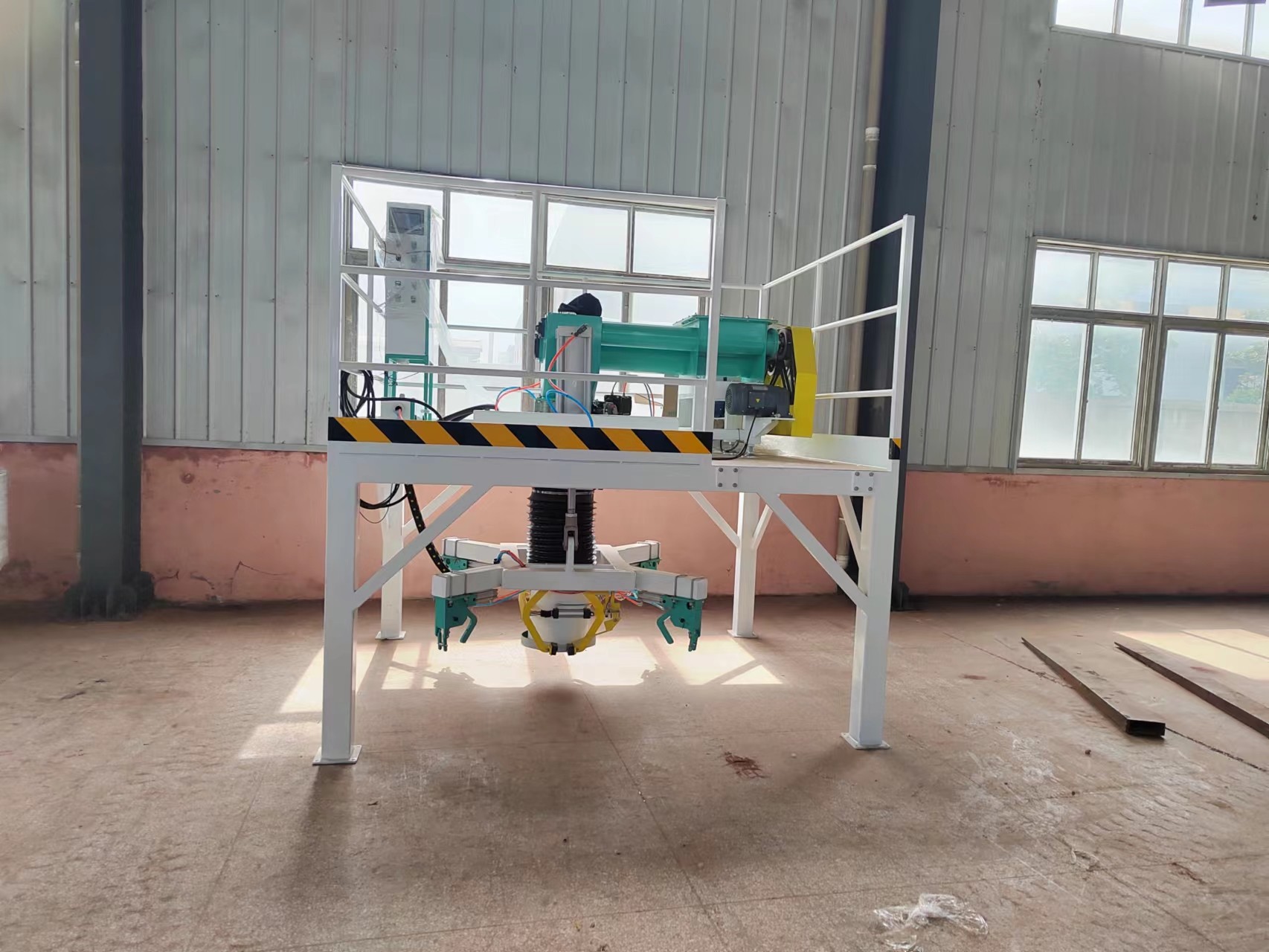

Calcium Carbonate Powder Jumbo Bag Packing Machine Ton Bag Filling Station

The jumbo bag packing machine working process is: Manual giving the jumbo bag to the packing machine bag clamp then touch the switch then will automatically clamp the bag and lock the 4pcs loop-automatic feeding the materials-automatic weighing-automatic discharge the materials into the jumbo bags well-finished jumbo bag will convey out from the packing machine by the big heavy conveyor-move by the forklift.


Main features:

1. The function of collecting the thickness and thickness is integrated, which effectively solves the requirements of speed and precision in the packaging process.
2. For the different weight of the packaging process, the bag can be automatically peeled, cleared, and has automatic correction function to ensure the accuracy requirements.
3. For the requirement to detect whether the material contains metal particles, a metal detector can be installed at the inlet.
4. After the bag is automatically dropped, it can be transported to the next process by automatic roller conveyor, power roller or belt conveyor.
5. It can be equipped with shaker function or flexible adjustment of bag machine and hook height according to requirements.
6. The system has two modes of operation, automatic and manual, which can be switched at will.

Technical parameters:



Equipment structure:
Weighing mechanism, decoupling device, lifting device, outer frame, feeding device and clamping mechanism

Workflow:
Put the bulk bag on the clamping mechanism, hang the four corners of the bag on the hook device and press the "start" button. At this time, the clamping cylinder starts to work and presses the bag mouth. The cylinder will open the four corners of the bag. The controller will automatically remove the weight of the bag. The feeding mechanism will quickly fill the bag with materials. The vibration device will start to vibrate the materials in the bag, and the dust will overflow with the air in the bag When the feeding speed reaches the set value, the feeding speed will slow down and increase slowly, and the vibration will stop. When the setting value is reached, the feeding will stop. The error is less than 0.5%. At this time, the bag pressing cylinder releases the bag opening, the cylinder releases the four corners of the bag, and the forklift truck takes the bag away.





About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.

No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
