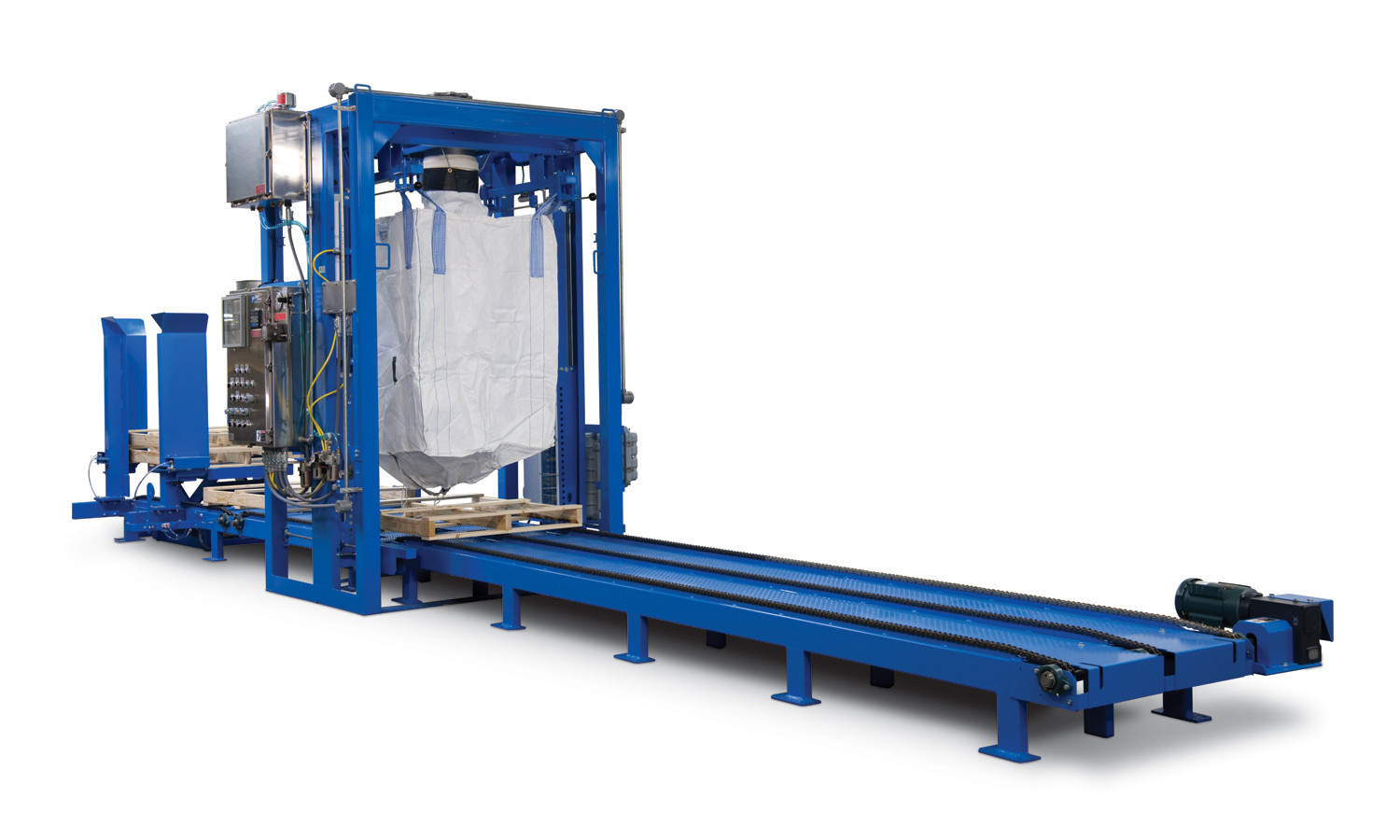

1 Tonne Candy Jumbo Bagging Machine For Rice Grain Big Bag Loading System

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-TB

Detail Information

Name: Big Bag Packing Scale Packing Speed: 8-40 Bag / Hour (It Depends On The Material Characteristics And Net Weight)
Packaging Error: ≤± 0.2% Spiral Feeding: ≤ 5kW
Weight Range: 500kg ~ 2000kg Main Engine Power: Gravity Flow Feeding ≤ 2KW
Manufacturer: Wuxi Jianlong Packing Co., Ltd.
High Light:

1 tonne bagging machine


candy bagging machine


bagging machine grain

Product Description

Big Bag Packing Scale For 1000kg 500kg, 1 Ton Jumbo Bag Filling Packing


Product Application

Free flow big bag packing machine for packing high bulk density, free-flowing powdery and granular materials into big bags, representative materials are PVC, Polystyrene Resin, Compound Fertilizer, Urea, Grain, Refractory Materials, and etc.


Main features:

1. bag clamper and hanging apparatus function:After weighing is completed, the bag is automatically released from bag clamper and hanging apparatus

2. Fast packaging speed and high precision.

3. Out-of-tolerance alarm function: if the packaging weight is no longer within the preset tolerance, an alarm indication will be output.

4. Automatic drop correction function: with the change of the material in the silo, the advance volume is automatically corrected to make the packaging accuracy more stable.

5. Automatic / manual function: It can be continuously packaged in automatic state, or it can be packed in jog mode using manual function.

6. Final counting function: it can record the quantity of finished packaging for each shift or every day.

7. Feeding method: Gravity flow feeding ; spiral feeding; vibration feeding; belt type feeding;


Main technical parameters:

Weight range 500kg ~ 2000kg
Packing speed 8-40 bag / hour (It depends on the material characteristics and net weight)
Packaging error ≤± 0.2%
Main engine power

Gravity flow feeding ≤ 2KW

Spiral feeding ≤ 5kW

Power source AC380V, 50Hz
Working air pressure 0.4 ~ 0.7MPa


1 Tonne Candy Jumbo Bagging Machine For Rice Grain Big Bag Loading System 0


About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
