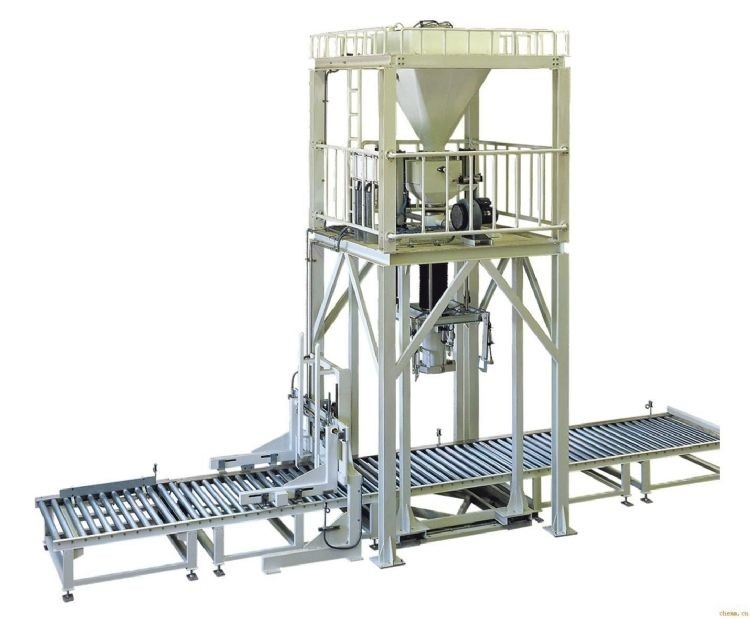

Cement Fertilizer Jumbo Bag Filling System Loading Powder Sack Filling Machine

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-TB

Detail Information

Name: Bulk Bagging Machine Weight Range: 500kg ~ 2000kg
Output Per Hour: 5-40 Bags/hour Machine Type: Automatic, Semi-Automatic
Air Supply: 5-16 Bar Filling Accuracy: +/-0.5%
High Light:

cement bag filling system


fertilizer bag filling system


jumbo bag loading system

Product Description

Bulk bagging machine, big bag filler, sack filling machine



Bulk bagging machine is an automatic weighing and packaging machine suitable for grain, beans, fertilizer, chemical and other industries. For example, package granulated health materials, corn, rice, wheat and granular seeds, medicines, etc. to your requirements, the rated range of packaging weight is 5kg ~ 80kg. The quantitative filling and packaging scale machine is mainly composed of four parts: automatic weighing, conveying equipment, bag sealing equipment and computer control. It has the characteristics of reasonable structure, beautiful appearance, stable operation, energy saving and power saving, easy operation and accurate weighing. The main engine adopts dual-frequency spiral propulsion, dual-barrel measurement, advanced digital frequency conversion control technology, sample processing technology, and anti-interference technology to achieve automatic error compensation and correction.


Technical Parameters:

Weighing range 500-2000 (kg/bag)
Quantitative error ±0.2%FS
Packing speed 30-50 (bags/hr)
Power supply 380/220V, 50HZ (adjustable)
Power 6.5KW
Air source 0.4-0.6MPA
Temperature -20-40℃

<95% (no condensation water)


Technical features:

1. The bulk bag filler adopts stepless speed motor, and its performance is stable, the packaging precision is high, and the speed is fast.


2. Integrate metering, loose bag, dust removal, control interlocking, fault alarm in one


3. Bench-scale measurement, adopts full-panel digital adjustment and parameter setting, has the functions of weight accumulation display and automatic peeling, automatic zero calibration, automatic fall correction, etc., with high sensitivity and strong anti-interference ability


4. Programmable electronic control system, the control process is highly reliable


5. The instrument is equipped with a communication interface, which is convenient for online networking, and can perform real-time monitoring and network management of the packaging machine and industrial ton bag scale, is a special bulk material packaging equipment with unique structure and large packaging capacity, integrating weight display, packaging sequence, process interlocking, and fault alarm.
