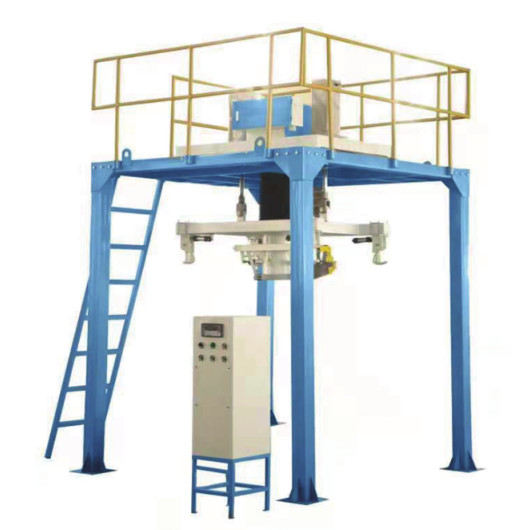

PVC Pellet Fully Automatic Bigbag Filling System 2 Ton Bulk Bag Loader Machine

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-TB

Detail Information

Name: Bulk Bag Loader Machine Type: Automatic, Semi-Automatic
Weight Range: 200kg-2000kg Packing Speed: 5-40bag/hour
Measurement Accuracy: 0.5% Application: Food, Medical, Chemical, Machinery & Hardware
Original: China Condition: Brand New
High Light:

PVC Pellet Fully Automatic Bigbag Filling System

,

automatic big bag filling system

,

2 Ton Bulk Bag Loader Machine

Product Description

5-40bag/hour 200kg-2000kg Bulk bag loader bulk bag filling equipment



Introduction:

Bulk bag loader is specialized for automatic packaging of powder and granular materials of ton bag, with high degree of automation. It has the functions of automatic filling, automatic bagging, automatic decoupling, which greatly reduces the labor cost and labor intensity.



Main features:

1. The structure is simple and not easy to be damaged.

2. High degree of automation, automatic decoupling, reduce the operation of workers.

3. Automatic bag patting function to improve loading capacity and packing density

4. Cooperate with conveyor to improve packaging efficiency





Technical parameters:

Degree of automation automatic filling, bag patting, decoupling, metering
Measurement accuracy: 0.50%
Weighing range: 200kg-2000kg
Packing speed 5-40bag/hour



Equipment structure:

Weighing mechanism, decoupling device, lifting device, outer frame, feeding device and clamping mechanism





Workflow:

Put the bulk bag on the clamping mechanism, hang the four corners of the bag on the hook device and press the "start" button. At this time, the clamping cylinder starts to work and presses the bag mouth. The cylinder will open the four corners of the bag. The controller will automatically remove the weight of the bag. The feeding mechanism will quickly fill the bag with materials. The vibration device will start to vibrate the materials in the bag, and the dust will overflow with the air in the bag When the feeding speed reaches the set value, the feeding speed will slow down and increase slowly, and the vibration will stop. When the setting value is reached, the feeding will stop. The error is less than 0.5%. At this time, the bag pressing cylinder releases the bag opening, the cylinder releases the four corners of the bag, and the forklift truck takes the bag away.



About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.

Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.

No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
