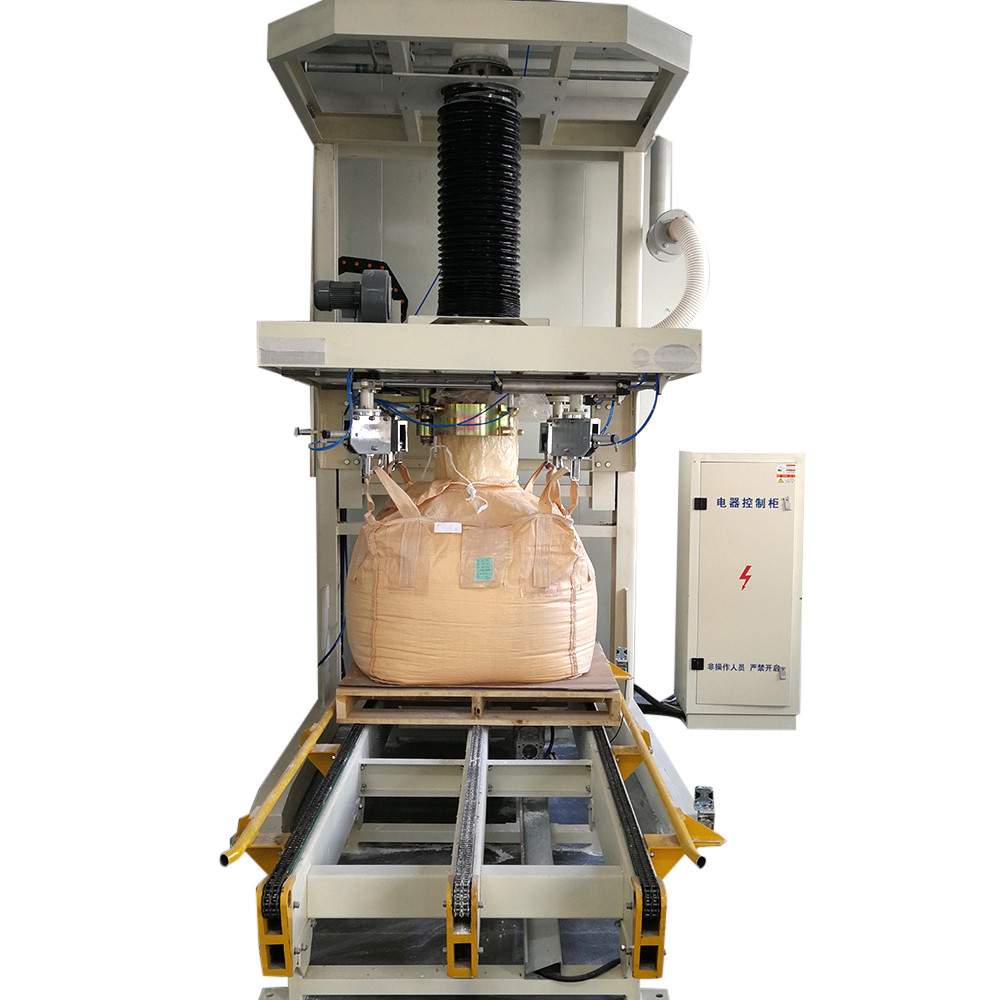

Rubber Chemical Ton Bag Filler Automatic Bag Weighing And Filling Machine 5kW

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-TB

Detail Information

Name: Big Bag Weighing Filling Machine Packing Speed: 8-40 Bag / Hour (It Depends On The Material Characteristics And Net Weight)
Packaging Error: ≤± 0.2% Weight Range: 500kg ~ 2000kg
Main Engine Power: Spiral Feeding ≤ 5kW Power Source:: AC380V, 50Hz
Marketing Type: New Product 2021
High Light:

Rubber Chemicals Ton Bag Fillers 5kW

,

Automatic Bag Weighing And Filling Machines 5kW

,

Rubber Chemicals Ton Bag Filler 5kW

Product Description

Rubber Chemicals Lime Powder Bag Big Bag Weighing Filling Machine



Jumbo bag bagging machine is suitable for quantitative packaging of powder and granular materials in bulk bags. It widely used in food, chemical, engineering plastics, fertilizer, feed, building materials and other industries.



Main features:

1. Bag clamper and hanging apparatus function:After weighing is completed, the bag is automatically released from bag clamper and hanging apparatus

2. Fast packaging speed and high precision.

3. Out-of-tolerance alarm function: if the packaging weight is no longer within the preset tolerance, an alarm indication will be output.

4. Automatic drop correction function: with the change of the material in the silo, the advance volume is automatically corrected to make the packaging accuracy more stable.

5. Automatic / manual function: It can be continuously packaged in automatic state, or it can be packed in jog mode using manual function.

6. Final counting function: it can record the quantity of finished packaging for each shift or every day.

7. Feeding method: Gravity flow feeding ; spiral feeding; vibration feeding; belt type feeding;



Main technical parameters:

Weight range 500kg ~ 2000kg
Packing speed 8-40 bag / hour (It depends on the material characteristics and net weight)
Packaging error ≤± 0.2%
Main engine power

Gravity flow feeding ≤ 2KW

Spiral feeding ≤ 5kW

Power source AC380V, 50Hz
Working air pressure 0.4 ~ 0.7MPa





Rubber Chemical Ton Bag Filler Automatic Bag Weighing And Filling Machine 5kW 0Rubber Chemical Ton Bag Filler Automatic Bag Weighing And Filling Machine 5kW 1Rubber Chemical Ton Bag Filler Automatic Bag Weighing And Filling Machine 5kW 2





Applicable materials:

Rubber Chemical Ton Bag Filler Automatic Bag Weighing And Filling Machine 5kW 3



Rubber Chemical Ton Bag Filler Automatic Bag Weighing And Filling Machine 5kW 4
