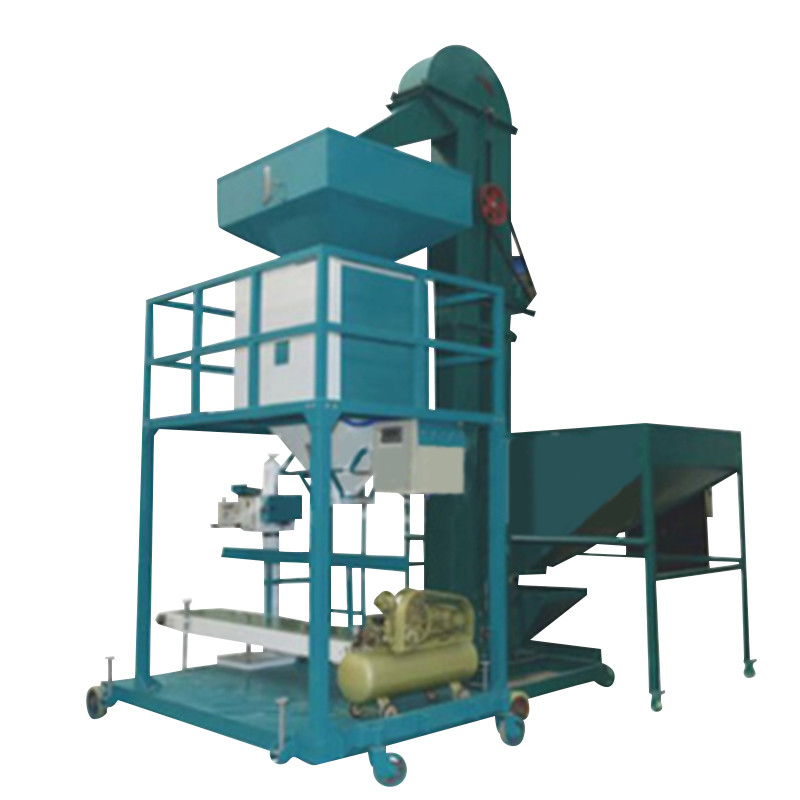

Mineral Cement Jumbo Bagging Machine Ton Bag Packing Machine Automatic

Product Description

Mineral Fertilizers Ton Bag Packing Machine,Limestone Powder Ton Bag Packing Machine

Bulk bagging machine, also known as big bag filler and sack filling machine, is a special bulk material packaging equipment with unique structure and large packaging capacity, integrating weight display, packaging sequence, process interlocking, and fault alarm. It has the characteristics of high measurement accuracy, large packaging capacity, green sealant material, high degree of automation, large production capacity, large application range, simple operation, and easy installation. There are functions such as automatic peeling, automatic zero calibration, high sensitivity, and online networking to realize network management. When filling, it is necessary to manually hang the bag, cover the bag, and after a given signal, the equipment can automatically complete the entire work cycle of bag clamping, filling, measurement, and loosening of the bag when the target weight is reached. The equipment is designed for powder and granular materials such as cement, non-metallic mineral powder, and chemical raw materials, and is suitable for industries such as building materials, chemicals, food, feed, and minerals.

Parameters

Working conditions:

◆ Power supply: 380/220V, 50HZ (adjustable)

◆ Power: 6.5KW

◆ Air source: 0.4-0.6MPA

◆ Temperature: -20-40℃

◆ Humidity: <95% (no condensation water)

 Technical features

1. The bulk bag filler adopts stepless speed motor, and its performance is stable, the packaging precision is high, and the speed is fast.

2. Integrate metering, loose bag, dust removal, control interlocking, fault alarm in one

3. Bench-scale measurement, adopts full-panel digital adjustment and parameter setting, has the functions of weight accumulation display and automatic peeling, automatic zero calibration, automatic fall correction, etc., with high sensitivity and strong anti-interference ability

4. Programmable electronic control system, the control process is highly reliable

5. The instrument is equipped with a communication interface, which is convenient for online networking, and can perform real-time monitoring and network management of the packaging machine and industrial ton bag scale, is a special bulk material packaging equipment with unique structure and large packaging capacity, integrating weight display, packaging sequence, process interlocking, and fault alarm.
