2 Ton Woven Jumbo Bag Filling Station Loading System Bulk Bagging Equipment

Product Description

1 Or 2 Tons Woven Big Bag Filling And Packing Machine, Powder Granule Ton Bag Machine

Introduction:

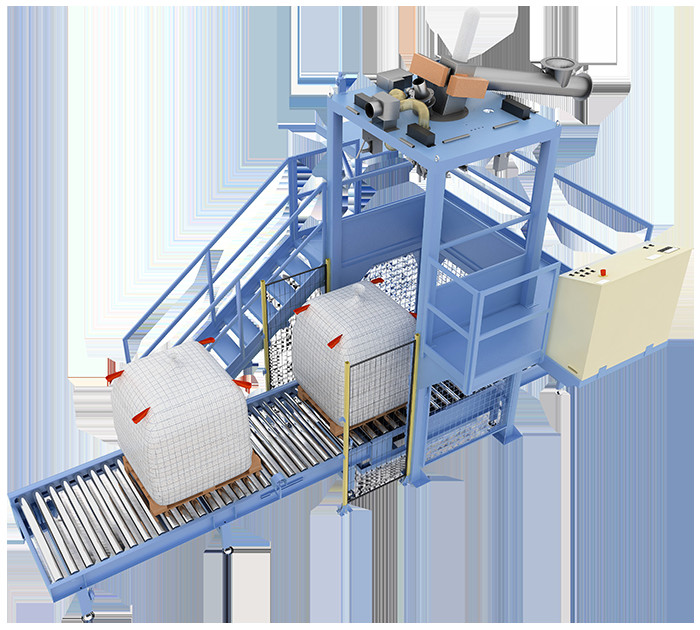

Jumbo bag filling machine is often used for fast and large-capacity professional quantitative weighing and packaging of solid granular materials and powdered materials. The main components of jumbo bag filler are: feeding mechanism, weighing mechanism, pneumatic actuator, rail mechanism, bag clamping Mechanisms, dust removal mechanisms, electronic control parts, etc., are currently necessary special equipment for large-scale soft bag packaging in the world.

Technical Parameter:

Main feature:

1. The weighing system adopts electronic weighing platform scale type measurement, imported digital weighing instrument, adopts comprehensive digital adjustment and parameter setting, with weighing cumulative display, automatic tare, automatic zero calibration, automatic drop correction, out of tolerance alarm and failure Self-diagnosis function, high sensitivity and strong anti-interference ability

2. Using PLC program control, the communication interface can be configured according to user needs, which is convenient for online networking and implements real-time monitoring and network management

3. Using gravity feeding or screw feeding method to improve working accuracy and speed

4. After the packaging is completed, it will be automatically separated from the bag clamp and bag hanging mechanism without other operations. It can be transported to the next process by a conveyor such as belt conveyor,roller conveyor or chain conveyor.

5. Advanced dust-proof and dust-removal design to reduce dust pollution in the working environment

6. It can be equipped with bag shaking function or flexibly adjust the height of bag clamping machine and hook

7. The on-site installation of this equipment is more flexible and convenient. It can be adapted to local conditions to a large extent, and the location can be arranged reasonably, and special processing and manufacturing can be combined with user requirements and actual conditions on site to meet the requirements of use conditions
