Mineral Sand Weighing Packing Machine 25-50kg, Cat Sand Packing Machine
1. Occupation Area<20m2, Height <3.5m, its capacity at 25-30t per day, just only need 2-3 person,very easy to operate.
2. It can realize Automatic Conveying Material, Automatic Mixing, Automatic Filling and Automatic Packing, high efficiency and low cost, wihch is the priority selection of small and medium dry mortar factory.
Features of dry mortar mixing machine
1) Small investment, most suitable for individuals.
2) The area is small, and factories can be built in ordinary houses.
3) The operation is simple, and it can be completed by 2-3 people. .
4) The output is high, the output is generally 3-4T/H, reaching 20-25T/day.
5) Easy to operate and maintain.
Applications of dry mortar mixing machine
1) dry mortar
2) Insulation mortar
3) the putty powder
4) Masonry mortar
5) Thin and smooth wall mortar
6) Waterproof mortar
7) gypsum powder
8) Wall plastering mortar
|Screw conveyor with hopper
|Feeding material to mixer
|to achieve uniform mixing effect in relatively short time.
|Screw conveyor 2
|Convey the finished material to finished hopper from the mixer
|End product hopper
|Store the finished material and prepare for the packing machine, which is improve the efficiency highly.
|Model: Valve type Rang: 15-50kg adjustable packing speed: 5-6s/bag.
|automatic filling and packing machine.
|balance the are pressure

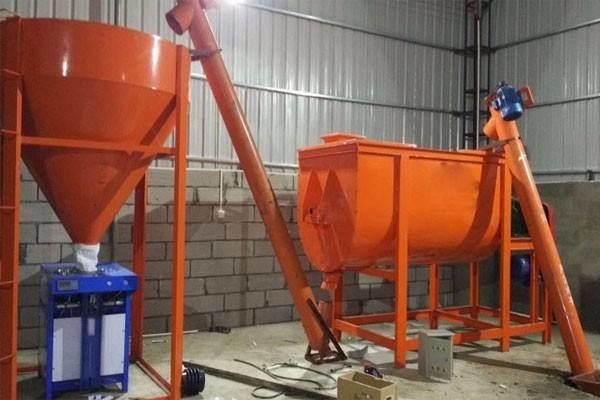

Screw Conveyor with Feeding Hopper and Spiral Ribbon Mixer
The screw conveyor is of Φ165X3500mm, feeding material to the mixer. The outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time. The mixing time:10-15min/batch
The mixer mortar is transferred from mixer to finish product bin. The spiral body design with small diameter, high rotating speed and variable pitch ensures smooth, fast and uniform feeding of the product in the working process. The lubrication and sealing are reliable and leak-free. There is no waste of materials with good working environment.
The storage silo is of 1.5m³, store the finished material and prepare for the packing machine, which improves the efficiency highly.
Valve type automatic dry mortar plant. 15-50kg/bag adjustable, the packing speed is 5-6s/bag. Fast packing speed, high weighing accuracy, high degree of automation, and simple operation.
0.12m³, balance the air pressure, provide air source for packing machine for quick packing and broken arch of finish product hopper.
