Fully Automatic Dry Mix Mortar Plant Manufacturer 30t Per Day

Product Description

Spiral Feeding Powder Packing Machine, Powder Auger Filling Machine

Production Description

Dry mix mortar machine is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives.

The demand for dry mortar has increased rapidly due to its outstanding merit compare to the mortar production in work-site.

Details:

1. Occupation Area<20m2, Height <3.5m, its capacity at 25-30t per day, just only need 2-3 person,very easy to operate.
2. It can realize Automatic Conveying Material, Automatic Mixing, Automatic Filling and Automatic Packing, high efficiency and low cost, wihch is the priority selection of small and medium dry mortar factory.

Features of dry mortar mixing machine
1) Small investment, most suitable for individuals.

2) The area is small, and factories can be built in ordinary houses.

3) The operation is simple, and it can be completed by 2-3 people. .

4) The output is high, the output is generally 3-4T/H, reaching 20-25T/day.

Applications of dry mortar mixing machine

1) dry mortar

2) Insulation mortar

3) the putty powder

4) Masonry mortar

5) Thin and smooth wall mortar

6) Waterproof mortar

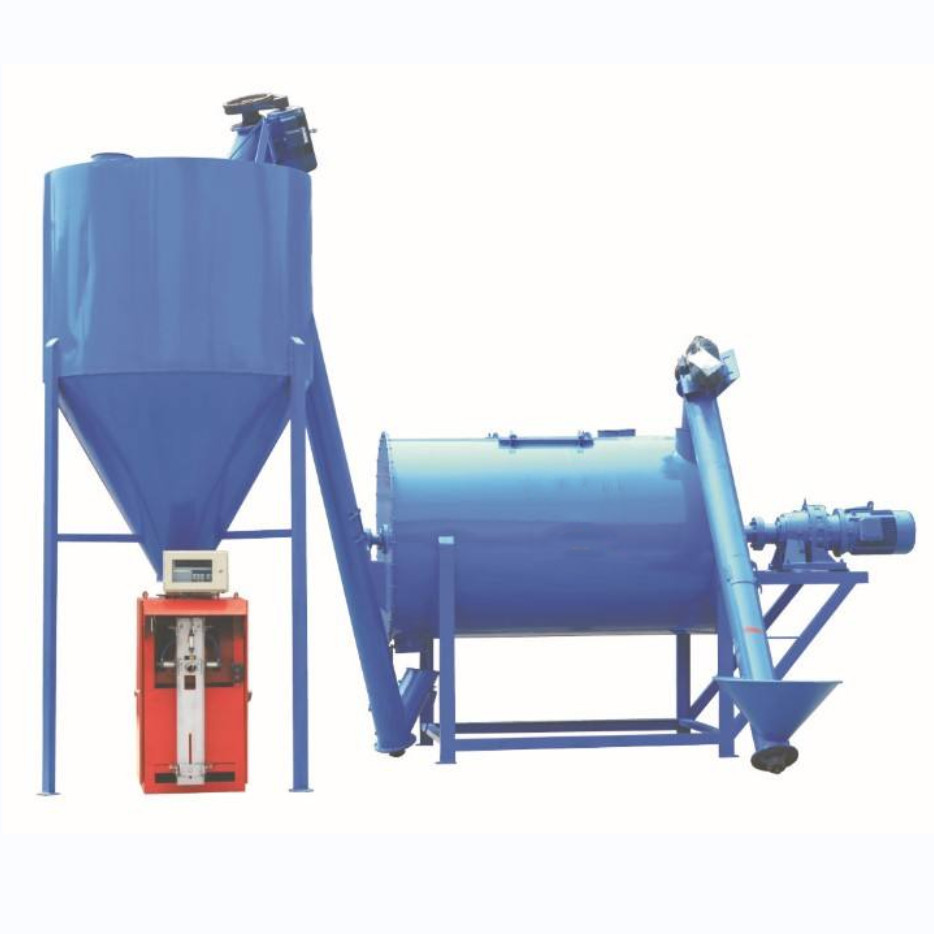

Main configuration

Screw Conveyor with Feeding Hopper and Spiral Ribbon Mixer

The screw conveyor is of Φ165X3500mm, feeding material to the mixer. The outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time. The mixing time:10-15min/batch

Screw Conveyor

The mixer mortar is transferred from mixer to finish product bin. The spiral body design with small diameter, high rotating speed and variable pitch ensures smooth, fast and uniform feeding of the product in the working process. The lubrication and sealing are reliable and leak-free. There is no waste of materials with good working environment.

Storage silo

The storage silo is of 1.5m³, store the finished material and prepare for the packing machine, which improves the efficiency highly.

Air Compressor

0.12m³, balance the air pressure, provide air source for packing machine for quick packing and broken arch of finish product hopper.
