Small Dry Mortar Plant Mix Cement Sand Pebbles Stones Quartz Sand

Product Description

Introduction

The simple dry powder mortar production line uses the upper and lower two-layer frame structure, and is equipped with double shaft weightless mixer, finished product warehouse and packaging machine and pulse dust collector.

Dry mixing mortar machine, also known as pre-mixed mortar, is made in the factory by precise ingredients, mixing evenly.Construction site just add water can be directly used.Although different additives are added, they have different properties. Compared with the mortar produced on site, the demand for dry mortar increases rapidly because of its outstanding advantages.

Features of dry mortar mixing machine
1) Small investment, most suitable for individuals.

2) The area is small, and factories can be built in ordinary houses.

3) The operation is simple, and it can be completed by 2-3 people. .

4) The output is high, the output is generally 3-4T/H, reaching 20-25T/day.

Applications of dry mortar mixing machine

1) dry mortar

2) Insulation mortar

3) the putty powder

4) Masonry mortar

5) Thin and smooth wall mortar

6) Waterproof mortar

Specification

Screw Conveyor with Feeding Hopper and Spiral Ribbon Mixer

The screw conveyor is of Φ165X3500mm, feeding material to the mixer. The outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time. The mixing time:10-15min/batch

Storage silo

The storage silo is of 1.5m³, store the finished material and prepare for the packing machine, which improves the efficiency highly.

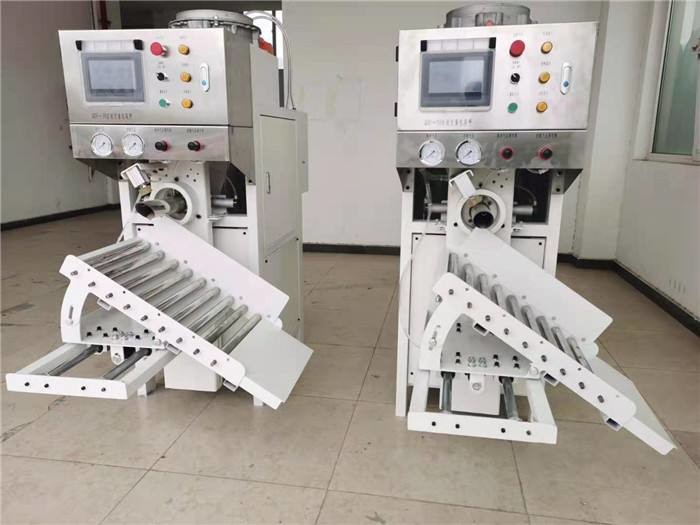

Packing Machine

Valve type automatic dry mortar plant. 15-50kg/bag adjustable, the packing speed is 5-6s/bag. Fast packing speed, high weighing accuracy, high degree of automation, and simple operation.

Air Compressor

0.12m³, balance the air pressure, provide air source for packing machine for quick packing and broken arch of finish product hopper.
