Dry Mortar Mixing Plant, Dry Mortar Complete Plants For Tiles, Silica Sand Packing Machine

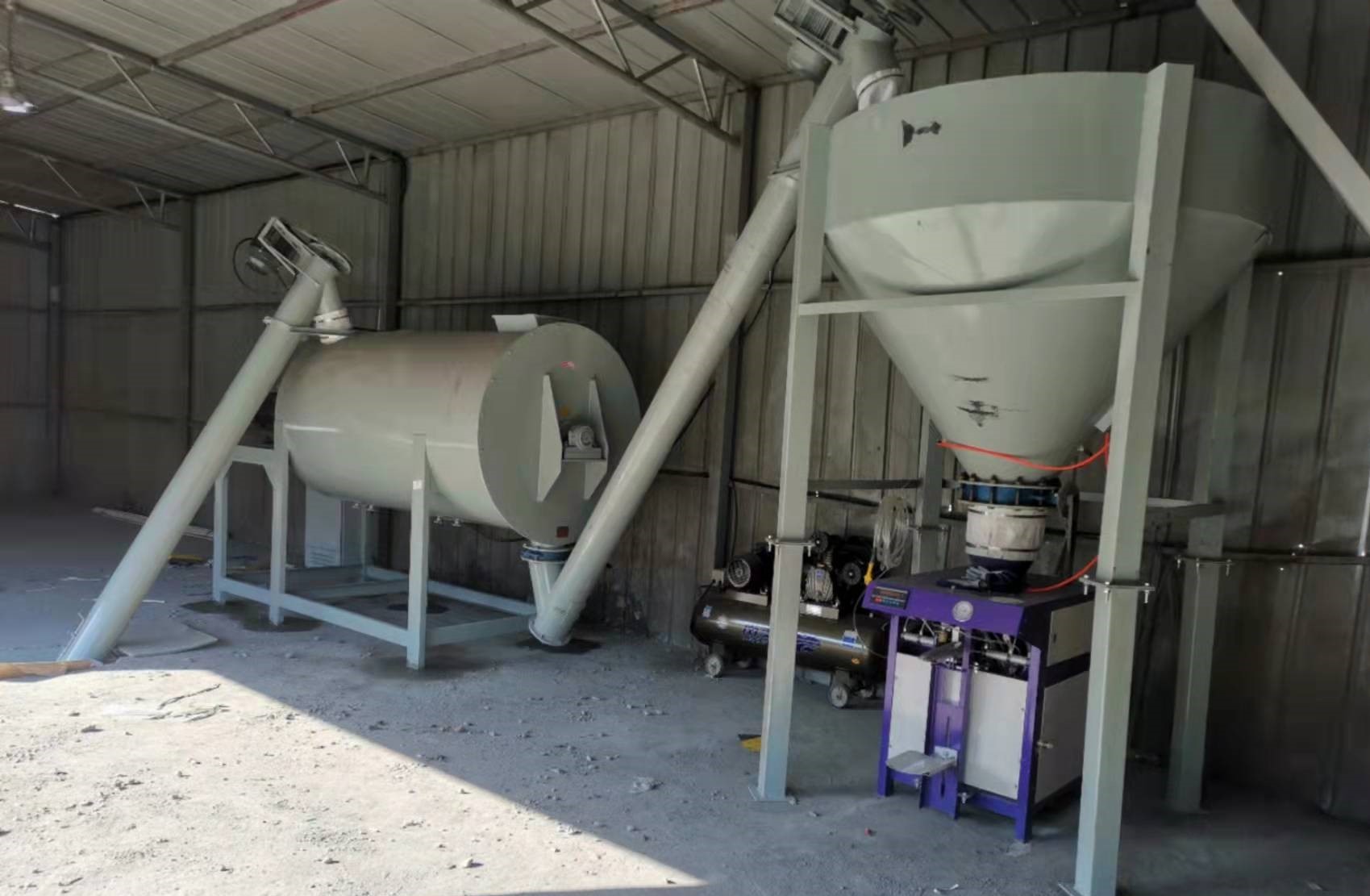

It is designed based on the traditional mixer, is added a material conveying system, a storage silo and an automatic packaging machine.It adopts the Twin-shaft Agravic mixer as its main mixing system. The well-mixed materials will go into the storage silo via material conveying pipe, and the mixer may be feed consecutively and work continuously in flow line production, but the equipment is not over 4 meters high, thus solving the problem of heightening the workshop. Moreover, it may realize automatic metering and packaging, hence, it may not merely save the time and energies but also may be more accurate. It required little investment, but it may load, weight and package the materials automatically; no wondering, it is a simple but practical production line.
Features of dry mortar mixing machine
1) Small investment, most suitable for individuals.
2) The area is small, and factories can be built in ordinary houses.
3) The operation is simple, and it can be completed by 2-3 people. .
4) The output is high, the output is generally 3-4T/H, reaching 20-25T/day.
1) dry mortar
2) Insulation mortar
3) the putty powder
4) Masonry mortar
5) Thin and smooth wall mortar
6) Waterproof mortar
7) gypsum powder
8) Wall plastering mortar
9) Ceramic tile bonding mortar
|Screw conveyor with hopper
|Feeding material to mixer
|to achieve uniform mixing effect in relatively short time.
|Screw conveyor 2
|Convey the finished material to finished hopper from the mixer
|End product hopper
|Store the finished material and prepare for the packing machine, which is improve the efficiency highly.
|Model: Valve type Rang: 15-50kg adjustable packing speed: 5-6s/bag.
|automatic filling and packing machine.
|balance the are pressure
Screw Conveyor with Feeding Hopper and Spiral Ribbon Mixer
The screw conveyor is of Φ165X3500mm, feeding material to the mixer. The outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time. The mixing time:10-15min/batch
The mixer mortar is transferred from mixer to finish product bin. The spiral body design with small diameter, high rotating speed and variable pitch ensures smooth, fast and uniform feeding of the product in the working process. The lubrication and sealing are reliable and leak-free. There is no waste of materials with good working environment.
The storage silo is of 1.5m³, store the finished material and prepare for the packing machine, which improves the efficiency highly.
Valve type automatic dry mortar plant. 15-50kg/bag adjustable, the packing speed is 5-6s/bag. Fast packing speed, high weighing accuracy, high degree of automation, and simple operation.
0.12m³, balance the air pressure, provide air source for packing machine for quick packing and broken arch of finish product hopper.
