Ready Dry Mix Mortar Plant Putty Powder Sugar Salt Sand Packing 3T H

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Putty Powder Dry Mortar Filling Machine Capacity: 25-30t Per Day
Packaging Material: Plastic, Paper, Metal Weight: 3500 KG
Driven Type: Electric Voltage: 380V (Configurable)
Origin: China Keyword: Rendering Mortar Dry Mix Plant
High Light:

Ready Mix Mortar Plant 3T H


Mix Mortar Plant Putty Powder


dry mortar machine

Product Description

Sugar Salt Sand Packing Machine, Putty Powderdry Mortar Filling Machine


Working principle:

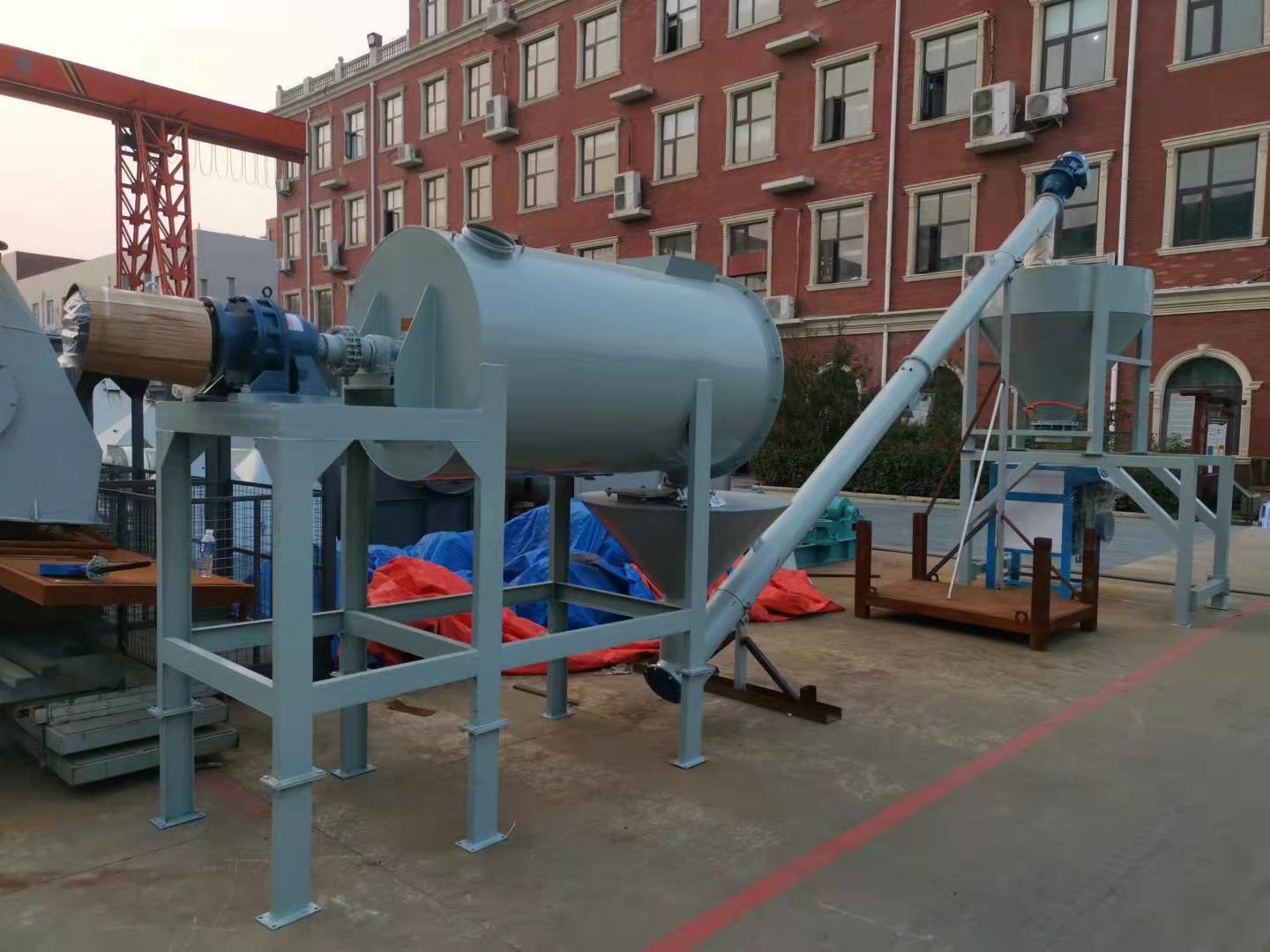

Simple and practical small type dry mortar plant is designed based on the traditional mixer, is added a material conveying system, a storage bin and an automatic filling machine. The well-mixed materials will go into the storage bin via material conveying pipe, and the mixer may be feed consecutively and work continuously in flow line production, but the equipment is not over 4 meters high, thus solving the problem of heightening the workshop. Moreover, it may realize automatic metering and filling, hence, it may not merely save the time and energies but also may be more accurate. Requiring little investment, but it may load, weight and package the materials automatically; no wondering, it is a simple but practical production line.


Brief Description:

1. Occupation Area<20m2, Height <3.5m, its capacity at 25-30t per day, just only need 2-3 person,very easy to operate.
2. It can realize Automatic Conveying Material, Automatic Mixing, Automatic Filling and Automatic Packing, high efficiency and low cost, wihch is the priority selection of small and medium dry mortar factory.


Features of dry mortar mixing machine:
1) Small investment, most suitable for individuals.

2) The area is small, and factories can be built in ordinary houses.

3) The operation is simple, and it can be completed by 2-3 people. .

4) The output is high, the output is generally 3-4T/H, reaching 20-25T/day.


Applications of dry mortar mixing machine:

1) dry mortar

2) Insulation mortar

3) the putty powder

4) Masonry mortar

5) Thin and smooth wall mortar

6) Waterproof mortar


No. Name Configuration Function
1 Screw conveyor with hopper Dia:Φ165X3500mm Feeding material to mixer
2 Ribbon mixer mixing time:10-15min/batch to achieve uniform mixing effect in relatively short time.
3 Screw conveyor 2 Dia:Φ165X3500mm Convey the finished material to finished hopper from the mixer
4 End product hopper Volume:1.5m³ Store the finished material and prepare for the packing machine, which is improve the efficiency highly.
5 Packaging machine Model: Valve type Rang: 15-50kg adjustable packing speed: 5-6s/bag. automatic filling and packing machine.
6 Air compressor 0.12m³ balance the are pressure
7 Control cabinet Full set


1T/hour to 40T/hour dry mortar producition and packaging line wall putty powder valve bag weighing  filling bagging machine



Screw Conveyor


The mixer mortar is transferred from mixer to finish product bin. The spiral body design with small diameter, high rotating speed and variable pitch ensures smooth, fast and uniform feeding of the product in the working process. The lubrication and sealing are reliable and leak-free. There is no waste of materials with good working environment.


Storage silo


The storage silo is of 1.5m³, store the finished material and prepare for the packing machine, which improves the efficiency highly.


Air Compressor


0.12m³, balance the air pressure, provide air source for packing machine for quick packing and broken arch of finish product hopper.

1T/hour to 40T/hour dry mortar producition and packaging line wall putty powder valve bag weighing  filling bagging machine
