Fully Automatic Simple Dry Mortar Production Line Cement Putty Powder 4T H

Product Description

Packing Machine For Flour Cement Motor Sand Corn Starch, Putty Powder dry Mortar Packing Line

Introduction

This equipment can meet different performance requirements of the dry mortar products production needs, such as binding mortar, plaster mortar, such as thermal insulation system of the bonding mortar required mortar, and other special mortar.

Dry mixing mortar machine, also known as pre-mixed mortar, is made in the factory by precise ingredients, mixing evenly.Construction site just add water can be directly used.Although different additives are added, they have different properties. Compared with the mortar produced on site, the demand for dry mortar increases rapidly because of its outstanding advantages.

Features of dry mortar mixing machine
1) Small investment, most suitable for individuals.

2) The area is small, and factories can be built in ordinary houses.

3) The operation is simple, and it can be completed by 2-3 people. .

4) The output is high, the output is generally 3-4T/H, reaching 20-25T/day.

5) Easy to operate and maintain.

Applications of dry mortar mixing machine

1) dry mortar

2) Insulation mortar

3) the putty powder

4) Masonry mortar

5) Thin and smooth wall mortar

6) Waterproof mortar

7) gypsum powder

8) Wall plastering mortar

9) Ceramic tile bonding mortar

Specitication

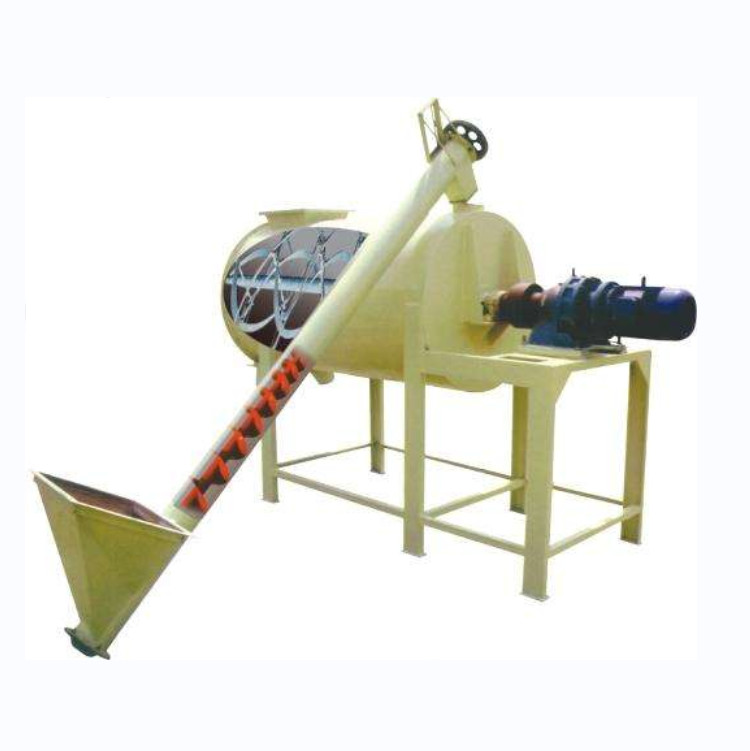

Screw Conveyor with Feeding Hopper and Spiral Ribbon Mixer

The screw conveyor is of Φ165X3500mm, feeding material to the mixer. The outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides ,outer screw ribbon blade forced sides material to inward, mix the materials back and forth. In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time. The mixing time:10-15min/batch

Screw Conveyor

The mixer mortar is transferred from mixer to finish product bin. The spiral body design with small diameter, high rotating speed and variable pitch ensures smooth, fast and uniform feeding of the product in the working process. The lubrication and sealing are reliable and leak-free. There is no waste of materials with good working environment.

Packing Machine

Valve type automatic dry mortar plant. 15-50kg/bag adjustable, the packing speed is 5-6s/bag. Fast packing speed, high weighing accuracy, high degree of automation, and simple operation.

Air Compressor

0.12m³, balance the air pressure, provide air source for packing machine for quick packing and broken arch of finish product hopper.
