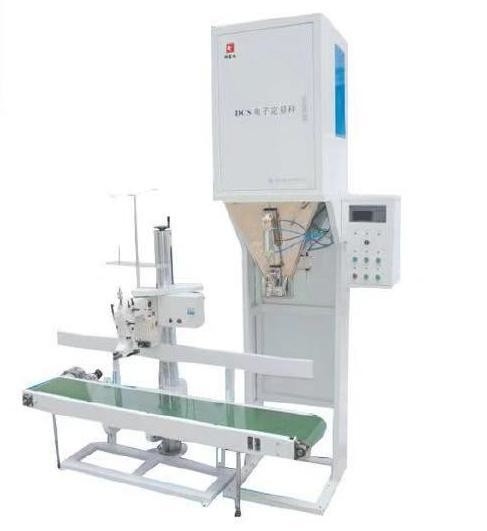

Silage Granola Bar Coffee Bean Bag Filling Machine Automated Bagging Line 4kw

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Bean Bag Filling Machine Range Of Application: Liquid,powder,granule, Small Things,etc.
Weighing Range: 1-5, 5-10, 10-25,25-50 Kg/bag, Customized Needs Packing Capacity: 180-250bag/hour
Precisions: ±0.2%FS Power Supply: 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW): 4
High Light:

Coffee Bean Bag Filling Machine 4kw

,

automated bagging machine

,

coffee bean packaging machine

Product Description

Granola Bar Packaging Machine, Coffee Bean Packing Machine, Bean Bag Filling Machine



Product introduction and features:



1. DCS-BF mixture bag filler needs manual assistance in bag loading, automatic weighing, bag clamping, automatic filling, automatic conveying and bag sewing.

2. The belt feeding mode is adopted, and the large and small gates are controlled pneumatically so as to achieve the required flow rate.

3. It can solve the problem of some special chemical raw material packaging, which has wide application range and simple operation.

4. It adopts high progress sensor and intelligent weighing controller, with high precision and stable performance.

5. The whole machine is made of stainless steel (except for electrical components and pneumatic components), with high corrosion resistance.

6. Electrical and pneumatic components are imported components, long service life, high stability.

7. The belt feeder adopts anticorrosive belt.

8. Automatic sewing and thread breaking function: photoelectric induction automatic sewing after pneumatic thread cutting, saving labor.

9. Conveyor adjustable lifting: according to different weight, different bag height, conveyor height can be adjusted.



Parameters:



Model DCS-BF DCS-BF1 DCS-BF2
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 150-200bag/hour 180-250bag/hour 350-500bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Working pressure 0.4-0.6Mpa
Weight 700kg 800kg 1500kg




The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.





Silage Granola Bar Coffee Bean Bag Filling Machine Automated Bagging Line 4kw 0



About Us:



Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
