Semi Auto Bagging Machines Automatic Bag Filling And Stitching Machine Manual

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Belt Conveyor For Finished Products Belt Material: PP Belt (Food Grade)
Power: 40W Power Supply: 220V,50HZ
Hopper Capacity: 230L Dimension: 1600mm(L)*520mm(W)*1000mm(H)
Warranty Of Core Components: 1 Year
High Light:

automatic bagger manual

,

automatic bag filling and stitching machine

,

automatic bagging and sewing machine

Product Description

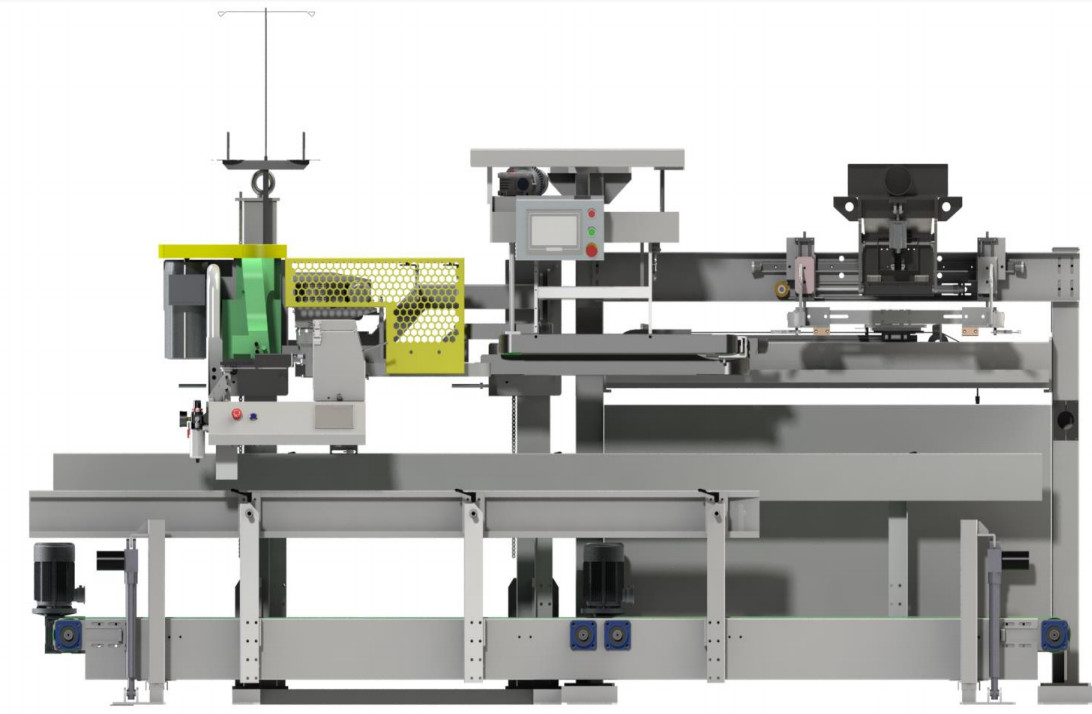

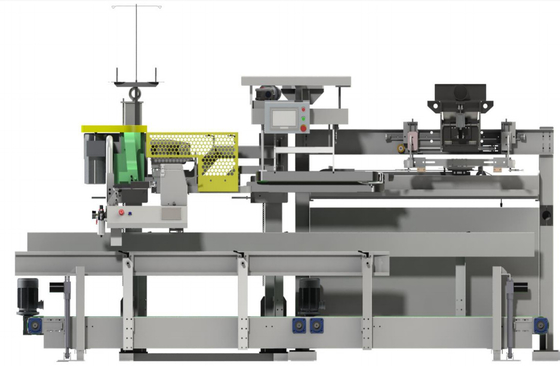

Automatic conveying and sewing machine, manual bagging and auto conveying&sewing machine



This machine is suitable for automatic packaging of granules and coarse powder, and it can work with the bag width of 400-650 mm and the height of 550-1050 mm. It can automatically complete opening pressure, bag clamping, bag sealing, conveying, hemming, label feeding, bag sewing and other actions, less labor, high efficiency, simple operation, reliable performance, and it is a key equipment to complete woven bags , Paper-plastic composite bags and other types of bags for bag sewing operations for customers with high automation level .



Technical parameters:



Working capacity 600 bags / hour
Package weight 25-50 kg
Package specification width 400-600mm; length 550-1050mm
Power supply three-phase four wire 380V / 2.0kw
Air source pressure > = 0.5MPa
Compressed air consumption 3m3 / h
Tag picking success rate > 98%
Delivery label speed 14 / min
Overall dimension 4100mm(L)*2700mm(W)*1750mm(H)



About us


Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc.

Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.


Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.


No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
