Vffs Bagging Machine Small Vffs Vertical Form Fill And Seal Packaging Machines For Powder

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Automati Vertical Powder Packing Machine Length Of Bag: 50-390mm(L)
Width Of Bag: 50-250mm(W) Width Of Film: 520mm
Packing Speed: 15-60bag/min Air Pressure: 0.65mpa
Air Consumption: 0.3m³/min
High Light:

vertical form fill seal packaging machines

,

vffs packaging equipment

,

vffs packaging machine powder

Product Description

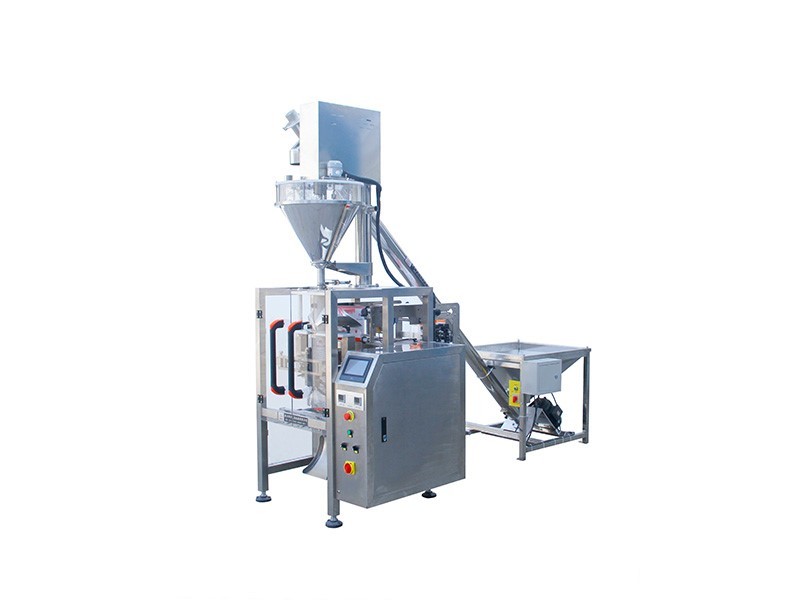

Automatic form fill sealing vffs powder packing machine with auger filler for 1-5000g/bag



Technical features:

Multi language interface, easy to understand.

Stable and reliable PLC program system.

Can store 10 recipes

Servo film pulling system with accurate positioning.

Vertical and horizontal sealing temperature is controllable, suitable for all kinds of films.

Various packaging styles.

Synchronization of filling, bag making, sealing and coding.



Technical parameters:



Model DCS-520
Length of bag 50-390mm(L)
Width of bag 50-250mm(W)
Width of film 520mm
Packing speed 15-60bag/min
Air pressure 0.65mpa
Air consumption 0.3m³/min
Power supply 220VAC/50/60Hz
Power 2.2KW
Dimension 1080(L) ×1500(W) ×1600(H)mm
Weight 650Kg

About us


Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc.

Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.


Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.


No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
