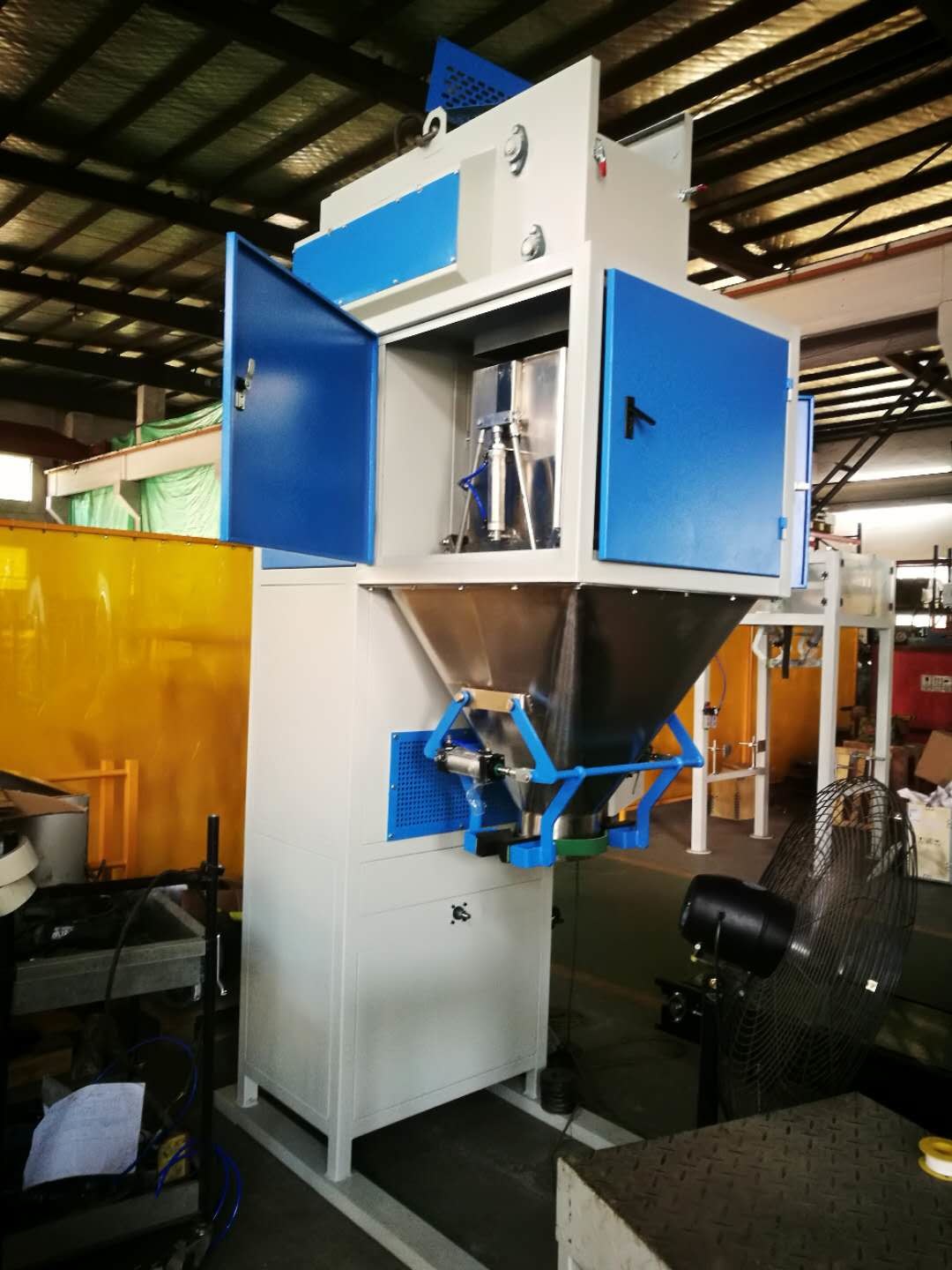

Animal Feed Bagging Equipment Mill Hardwood Charcoal Aggregate Bagger 25kg

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-2BF

Detail Information

Name: Coarse Aggregate Bagger Packing Capacity: 150-200bag/hour, 180-250bag/hour,350-500bag/hour
Precisions: ±0.2%FS Weighing Range: 1-5, 5-10, 10-25,25-50 Kg/bag, Customized Needs
Applicable Industries: Manufacturing Plant, Pharmaceutical Power Supply: 220V/380V, 50HZ, 1P/3P ( Customized)
Working Pressure: 0.4-0.6Mpa
High Light:

Charcoal Aggregate Baggers 25kg

,

animal feed bagging machine 25kg JL

,

25kg Charcoal Aggregate Baggers

Product Description

Filling Hardwood Charcoal Agriculture Feed Bagging Equipment, Coarse Aggregate Bagger 25kg 50kg



Product introduction and features:



This kind of machine is widely used for filling various of grains, hardware accessories, flower tea and so on. The machine is used for quantitative filling of uniform granular and small granular materials.



1. The whole machine is made of stainless steel (except for electrical components and pneumatic components), with high corrosion resistance.

2. Electrical and pneumatic components are imported components, long service life, high stability.

3. DCS-BF mixture bag filler needs manual assistance in bag loading, automatic weighing, bag clamping, automatic filling, automatic conveying and bag sewing.

4. The belt feeding mode is adopted, and the large and small gates are controlled pneumatically so as to achieve the required flow rate.

5. It can solve the problem of some special chemical raw material packaging, which has wide application range and simple operation.

6. It adopts high progress sensor and intelligent weighing controller, with high precision and stable performance.

7. The belt feeder adopts anticorrosive belt.

8. Automatic sewing and thread breaking function: photoelectric induction automatic sewing after pneumatic thread cutting, saving labor.

9. Conveyor adjustable lifting: according to different weight, different bag height, conveyor height can be adjusted.



Applicable materials:



briquettes, organic fertilizers, mixtures, premixes, fish meal, extruded materials, secondary powder, caustic soda flakes.



Parameters



Model DCS-BF DCS-BF1 DCS-BF2
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 150-200bag/hour 180-250bag/hour 350-500bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Working pressure 0.4-0.6Mpa
Weight 700kg 800kg 1500kg

The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.
