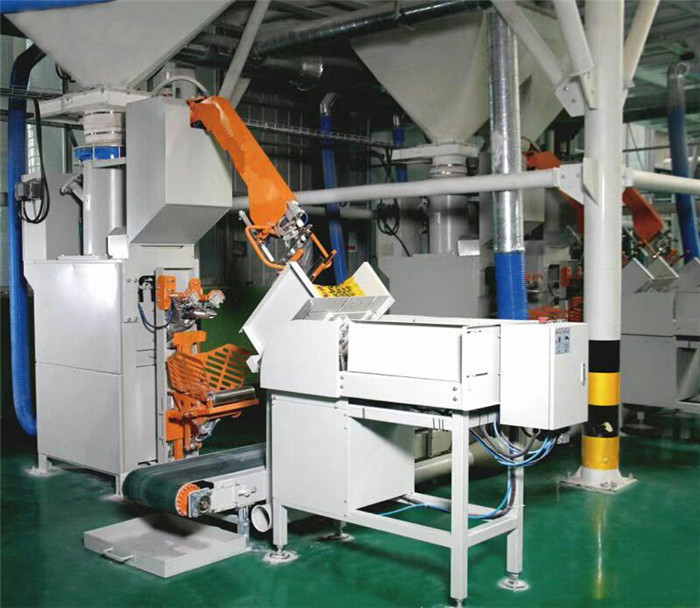

Coffee Candy Powder Auto Bagging Machines Design Auger Valve Bag Packer

Product Description

Automaiic valve bagging system, valve bag automatic bagging machine, automatic valve bag filler

Automaiic valve bagging system includes automatic bag library, bag manipulator, recheck sealing device and other parts, which automatically completes the bag loading from the valve bag to the valve bag packing machine. Manually place a stack of bags on the automatic bag library, which will deliver a stack of bags to the bag picking area. When the bags in the area are used up, the automatic bag warehouse will deliver the next stack of bags to the picking area. When it is detected that the bags in the bag library are about to be used up, the automatic alarm will remind the staff on site to supplement the bags.

The bag manipulator will pick up, open and cover the bag automatically. When the previous bag is being packed, the bag manipulator will pick up and open the next bag and wait.

After packaging, the package is pushed to the conveying system through the bag pushing device.

The control system is responsible for interlocking control of each unit equipment, and has perfect fault protection and interlocking stop function with upstream and downstream. It adopts PLC automatic control, and has the following functions:

1. In case of bag shortage in bag library, automatic alarm will be given;

2. In place detection of the bag, if there is a bag fault, automatic fault handling;

3. Packaging bag transportation in place detection;

4. The bag mouth cleaning system, the air blowing small mouth is automatically inserted into the small mouth of the packaging bag, and the back end of the small mouth is clamped, the dust at the bag mouth is cleaned through the air blowing small mouth and then exits, and the dust is sucked away through the dust removal system;

5. The whole operating system is easy to use and easy to repair and maintain.

Technical parameter

About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc.

Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.

Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.

No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
