Automatic Bag Slitting Machine Process Belt Conveyor 800bags Hour
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
|Automatic Bag Emptying Machine
|100 To 800 Bags/hour Of 25 To 50 Kg.
|Type Of Bags:
|Except Jute Made, All Other Material Bags
|Bag Sizes Up To 700mm X 400mm X 145mm (Weight – 50Kgs/bag)
|– 98% – 99% Depending On Flowing Characteristics Of The Material
50kg Bag Slitting And Emptying System,
50kg Cement Bag Unloading Machines,
50kg Bag Emptying Cement Bag Unloading Machine
25-50kg automatic bag slitting machine, bag slitting system,automatic bag emptying machine
|100 to 800 bags/hour of 25 to 50 kg.
|Type of bags
|Except Jute made, all other material bags
|Bag sizes up to 700mm x 400mm x 145mm (Weight – 50Kgs/bag)
|– 98% – 99% depending on flowing characteristics of the material

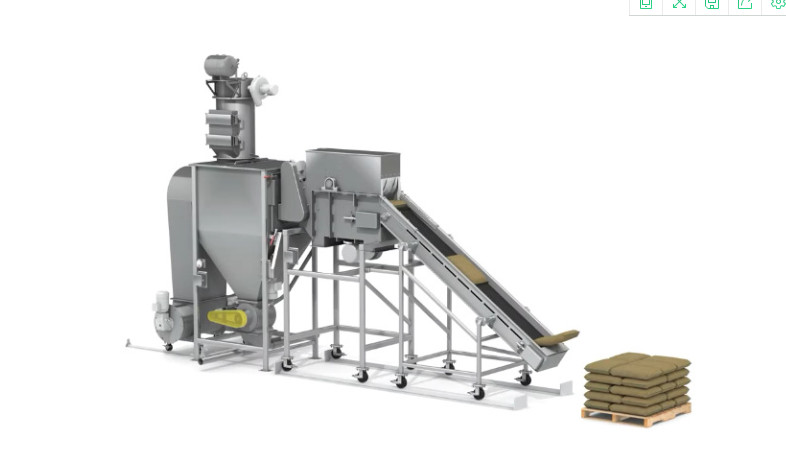

Automatic bag slitting machine is mainly composed of belt conveyor and main machine. The main machine is composed of base, cutter box, drum screen, screw conveyor, waste bag collector and dust removal device.
The bagged materials are transported to the slide plate by the belt conveyor, and slide along the slide plate by gravity. During the sliding process, the packaging bag is cut by fast rotating blades, and the cut residual bags and materials slide into the drum screen for screening. The materials dropped from the drum screen are output by screw conveyor, and the damaged packaging bags, impurities and caking materials are taken out of the body by the drum screen. The dust caused in the process of cutting knife breaking bag is collected by bag filter and shaken into screw conveyor through pulse control system (the materials output from screw conveyor can be transported to material storage tank by pipe chain conveyor or pneumatic conveying device).
MoC – Available in mild steel construction with optional coatings & stainless steel with optional finishes.
Capacity: 100 to 800 bags/hour of 25 to 50 kg.
Type of bags: Except Jute made, all other material bags
Material Retention: 2% maximum
Bag sizes up to 700mm x 400mm x 145mm (Weight – 50Kgs/bag)
Emptying efficiency – 98% – 99% depending on flowing characteristics of the material
Particle sizes: Powder & pellets of free flow characteristics.
