Automatic Powder Bag Packing Machine Weighing 5kg Detergent Washing
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
| Minimum Order Quantity : | 1 | Price : | Negotion |
|---|---|---|---|
| Packaging Details : | Plywood Box | Supply Ability : | 100 sets |
| Place of Origin: | China | Brand Name: | JL |
|---|---|---|---|
| Model Number: | DCS-TB |
|
Detail Information |
|||
| Name: | Calcium Carbonate Bagging Machine | Packaging Type: | Bags, Pouch |
|---|---|---|---|
| Precisions: | ±0.2%FS | Driven Type: | Pneumatic |
| Package: | 500-12kg | Power Supply: | 220V 50HZ, 1P/3P ( Customized) |
| Power (KW): | 3.2 | Warranty Of Core Parts: | 1 Year |
| Weighing Range: | 1-5, 5-10, 10-25, 25-50 Kg/bag, Customized Needs | Material: | Stainless Steel |
| High Light: | Calcium Carbonate Powder Bagging Machine,25Kg Powder Bagging Machine,Gypsum Powder Bagger |
||
Product Description

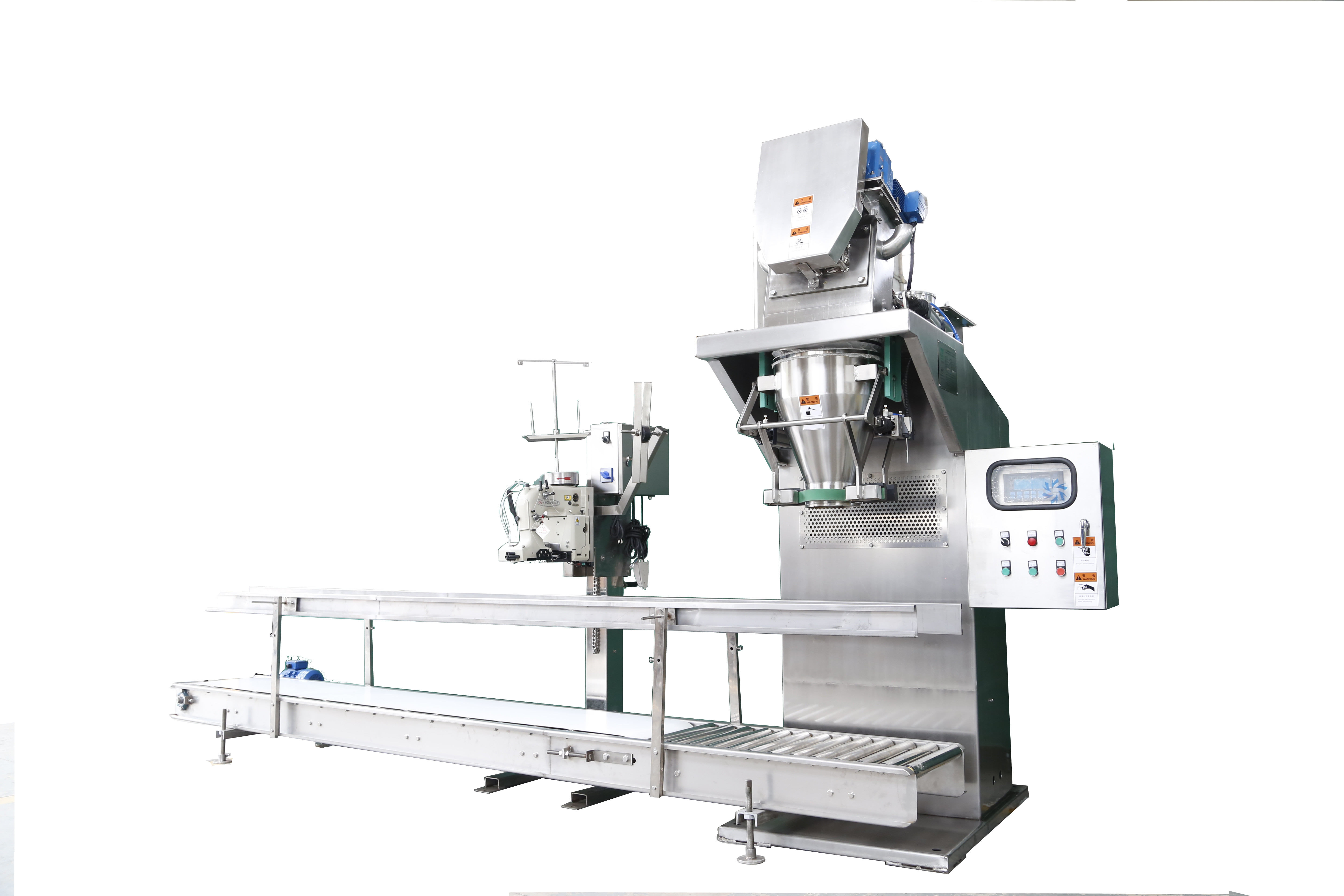

Automatic Calcium carbonate bagging machine 25 kg Gypsum powder bagger
Our packaging machine is widely used in feed, fertilizer, grain, chemical industry, building materials, starch, food, rubber and plastics, hardware, minerals,covering more than 20 industries, more than 3,000 kinds of materials.
It can suit different type of top open mouth bags such as woven bags, sacks, kraft paper bags, plastic bags etc.
Product features:
1. Gravity feeding mechanism, spiral feeding mechanism, belt feeding mechanism are optional, suitable for
quantitative weighing and packaging of different materials
2. Three-level feeding speed, fast speed and high precision
3. Install 3pcs load cells, with high accuracy and strong stability
4. PLC system and touch screen interface make the operation easier 5.
Proximity switch induction bag clamping, automatic detection, no hand clamping, safer operation 6. Fully automatic sewing bag,fast speed, beautiful stitching
Parameters:
| Model | DCS-SF | DCS-SF1 | DCS-2SF |
| Weighing Range | 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs | ||
| Precisions | ±0.2%FS | ||
| Packing Capacity | 150-200bag/hour | 250-300bag/hour | 480-600bag/hour |
| Power supply | 220V/380V, 50HZ, 1P/3P ( Customized) | ||
| Power (KW) | 3.2 | 4 | 6.6 |
| Dimension (LxWxH)mm | 3000x1050x2800 | 3000x1050x3400 | 4000x2200x4570 |
| The size can be customized according to your site. | |||
| Weight | 700kg | 800kg | 1000kg |
DCS-SF is a new type of high-performance powder bagging scale developed by our company .It is suitable for flour, starch, feed, food, chemical industry, light industry, medicine and other industries. DCS-SF is mainly equipped with weighing mechanism, feeding mechanism, body frame, control system, conveyor and sewing machine, etc.
