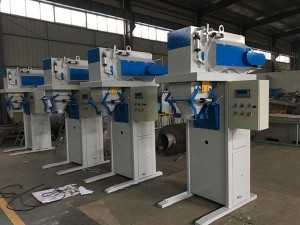

Scale Packaging Bag Filler For Powder Bagging Machine Design 25kg 50Kg Bag

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-2BF

Detail Information

Name: Belt Feeding Type Packing Machine Precisions: ±0.2%FS
Packing Capacity: 150-200bag/hour Weighing Range: 1-5, 5-10, 10-25,25-50 Kg/bag, Customized Needs
Working Pressure: 0.4-0.6Mpa Power Supply: 220V/380V, 50HZ, 1P/3P ( Customized)
High Light:

Powder Bagging Machine 50Kg Bag

,

Powder Bagging Machine 25Kg Bag

,

Scale Packaging Bag Filler For Powder

Product Description

DCS-BF MIXTURE BAG FILLER, MIXTURE BAGGING SCALE, MIXTURE PACKAGING MACHINE



The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.





Product description:

The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.

Scope of application: (poor fluidity, high moisture, powdery, flake, block and other irregular materials) briquettes, organic fertilizers, mixtures, premixes, fish meal, extruded materials, secondary powder, caustic soda flakes.

Product introduction and features:

1. DCS-BF mixture bag filler needs manual assistance in bag loading, automatic weighing, bag clamping, automatic filling, automatic conveying and bag sewing.

2. The belt feeding mode is adopted, and the large and small gates are controlled pneumatically so as to achieve the required flow rate.

3. It can solve the problem of some special chemical raw material packaging, which has wide application range and simple operation.

4. It adopts high progress sensor and intelligent weighing controller, with high precision and stable performance.

5. The whole machine is made of stainless steel (except for electrical components and pneumatic components), with high corrosion resistance.

6. Electrical and pneumatic components are imported components, long service life, high stability.

7. The belt feeder adopts anticorrosive belt.

8. Automatic sewing and thread breaking function: photoelectric induction automatic sewing after pneumatic thread cutting, saving labor.

9. Conveyor adjustable lifting: according to different weight, different bag height, conveyor height can be adjusted.



Technical Parameter:



Model DCS-BF DCS-BF1 DCS-BF2
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 150-200bag/hour 180-250bag/hour 350-500bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Working pressure 0.4-0.6Mpa
Weight 700kg 800kg 1500kg
