50 Lb Wood Pellet Bagging Machine 6.6 KW Grain Seed Packing System

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-GS

Detail Information

Name: 50 Lb Wood Pellet Bagging Machine Grain Seed Packing System Weight: 1600kg
Packing Capacity: 250-400bag/hour Weighing Range: 1-5, 5-10, 10-25 Kg/bag, Customized Needs
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms Precisions: ±0.2%FS
Power (KW): 6.6
High Light:

50Lb Wood Pellet Bagging Machine

,

automatic weighing Wood Pellet Bagging Machine

,

6.6 KW Granules Bagging Machine

Product Description

50 Lb Wood Pellet Bagging Machine Grain Seed Packing System

Introduction



Pellet packaging machine/ wood pellets package machine can measure weight and pack bags automatically , there is weight sensor and adjustor on packing machine , when adjust weight into one stable number for example 15kg/bag, bags will fall down automatically when reaches 15kg and along heat sealing machine conveyor into sealing parts. But when bags fall down to bottom conveyor, needs one person to hand it to make sure it will not oblique and pour out pellets.



Pellet packaging machine is applied to quantitative automatic weighing, filling, kneading, accumulating weigh and times, stitching and conveying with manual assistant for powder material in the flour factory or material such as pellet shape.Generally, the quantitative filling machine includes packing scales, sack closer, andbelt conveyorthese three parts.



Model DCS-GF DCS-GF1 DCS-GF2
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 200-300bag/hour 250-400bag/hour 500-800bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Dimension (LxWxH)mm 3000x1050x2800 3000x1050x3400 4000x2200x4570
The size can be customized according to your site.
Weight 700kg 800kg 1600

The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.

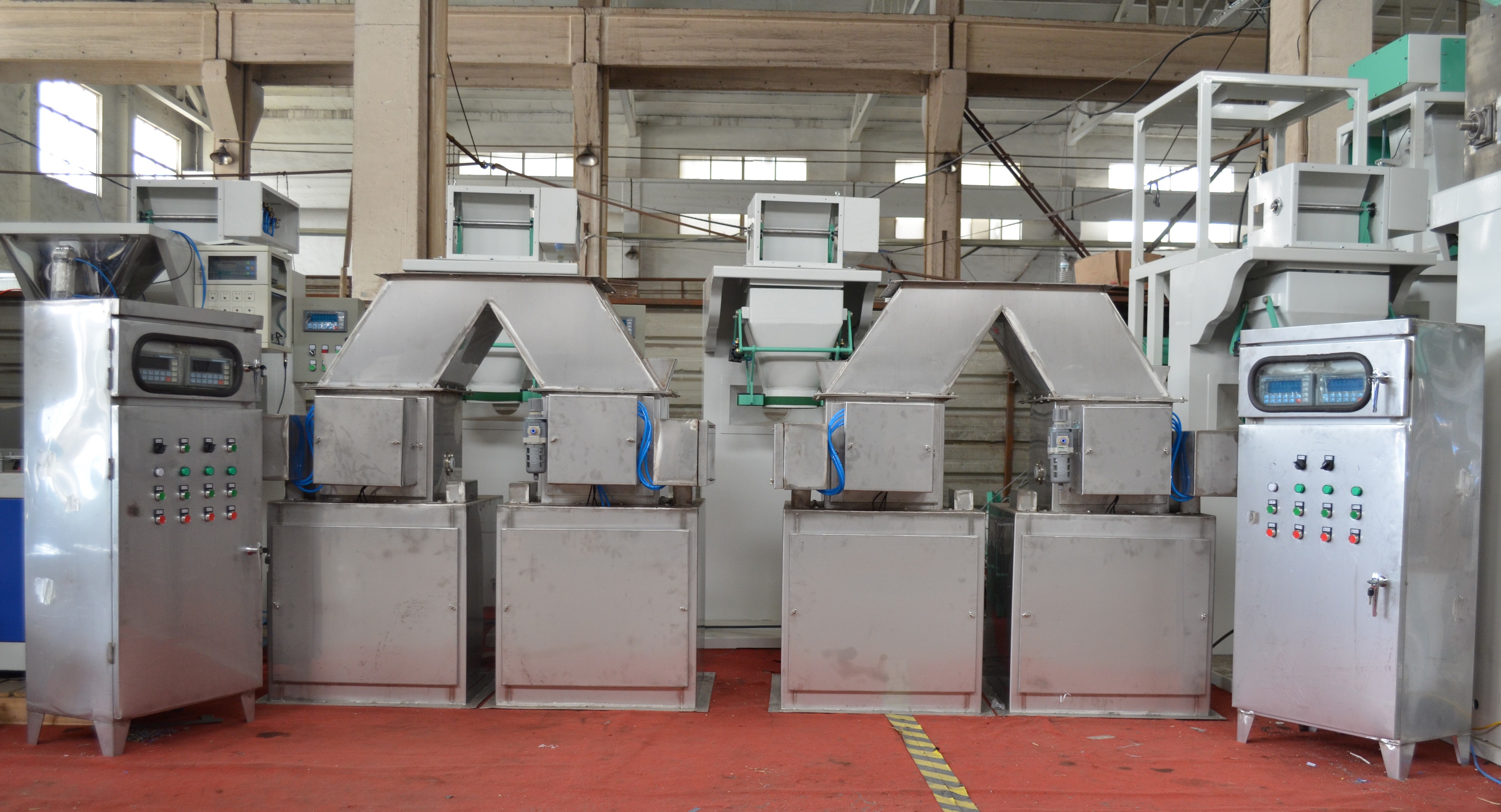

50 Lb Wood Pellet Bagging Machine 6.6 KW Grain Seed Packing System 0



About us:



Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.



Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.
