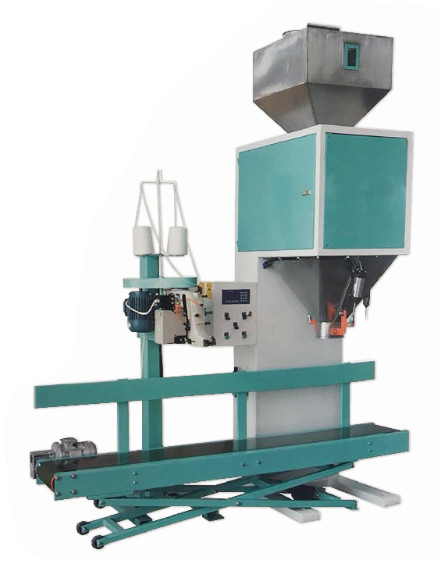

Biomass Granules Bagging Machine For 25kg Semi Auto Filling Weighing

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-GF

Detail Information

Name: Biomass Pellets Packaging Equipment Packaging Type: Film, Foil, Bags
Precisions: ±0.2%FS Weighing Range: 25-50kg (customized)
Package Capacity: 250-400bag/hour Weight: 1600
Power (KW): 6.6 Power Supply: 380V/50HZ
High Light:

biomass granules bagging machine


biomass granules bagging machine for 25kg


granule weighing machine

Product Description

Biomass Pellets Packaging Equipment, semi automatic granules filling weighing packaging machine


It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.)


This series of weighing machine is mainly used for quantitative packaging, manual bagging and inductive feeding of granular products such as washing powder, monosodium glutamate, chicken essence, corn and rice. It has high precision, fast speed and durability


The single scale has one weighing bucket and the double scale has two weighing buckets. The double scales can discharge materials in turn or in parallel. When discharging materials in parallel, the measuring range and error are doubled.


Technical parameters

Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 200-300bag/hour 250-400bag/hour 500-800bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Dimension (LxWxH)mm 3000x1050x2800 3000x1050x3400 4000x2200x4570
The size can be customized according to your site.
Weight 700kg 800kg 1600


Working principle

The granule packaging machine with single hopper needs to manually wear the bag, manually put the bag on the discharging spout of the packing machine, toggle the bag clamping switch, and the control system will drive the cylinder after receiving the bag clamping signal to drive the bag clamp to clamp the bag and start feeding at the same time The mechanism sends the material in the silo into the weighing hopper. After reaching the target weight, the feeding mechanism stops feeding, the silo is closed, and the material in the weighing hopper is filled into the packaging bag by gravity feeding. After the filling is completed, the bag clamper will automatically open, and the filled packaging bag will automatically fall onto the conveyor, and the conveyor will be transported back to the sewing machine. The bag will be manually assisted to sew and output to complete the packaging process.


Biomass Granules Bagging Machine For 25kg Semi Auto Filling Weighing 0Biomass Granules Bagging Machine For 25kg Semi Auto Filling Weighing 1Biomass Granules Bagging Machine For 25kg Semi Auto Filling Weighing 2


About us


Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
