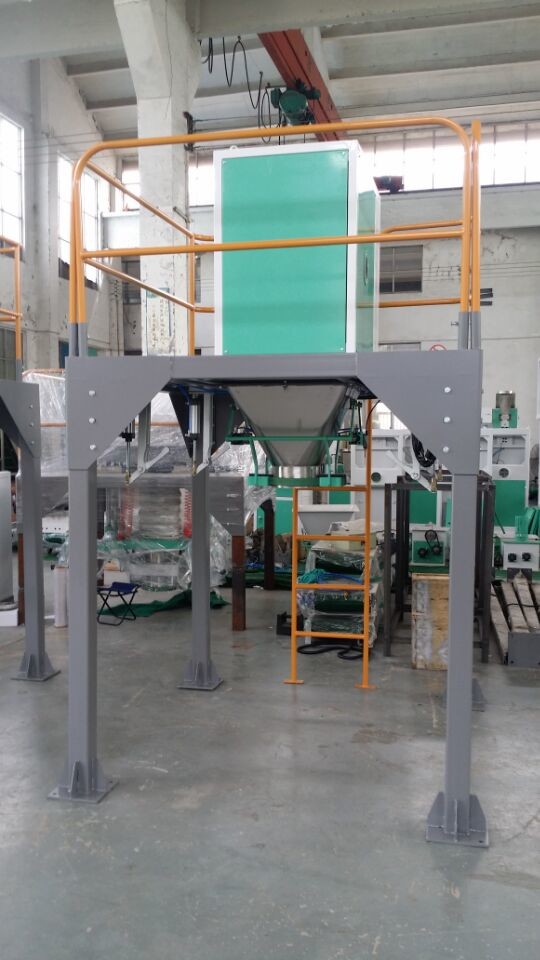

Urea Compound Fertilizer Bagging Machine Semi Automatic Stainless Steel 201

Place of Origin: China Brand Name: JL

Detail Information

Name: Semi Automatic Urea Bagging Machine Machine Material: Stainless Steel 201/304/316
Weighing Range: 1-5, 5-10, 10-25, 25-50 Kg/bag, Customized Needs Condition: New
Precisions: ±0.2%FS Packing Capacity: 200-300bag/hour,250-400bag/hour,500-800bag/hour
Dimension (LxWxH)mm: The Size Can Be Customized According To Your Site. Weight: 700-1600kg
High Light:

Compound Fertilizer Bagging Machine

,

Urea Fertilizer Bagging Machine

,

Stainless steel 201 Urea Bagging Machine

Product Description

Semi Automatic Urea Compound Fertilizer Bagging Machine



Introduction



This machine is an intelligent packaging scale specially developed by our company for granular materials and irregular materials. Using pneumatic gate feeding or belt feeding, advanced stepless frequency conversion technology.



The packaging unit is mainly composed of four parts: automatic weighing packaging machine, conveying device, sewing device and feeding machine. It has the characteristics of reasonable structure, beautiful appearance, convenient operation and accurate weighing.



This machine is mainly suitable for quantitative packaging of granular, granular powder mixed, strip, block, and other materials. Such as: fertilizer, feed, Chinese medicine pieces, Chinese medicine granules, premix, washing powder, snack food, sugar cubes, melon seeds, peanuts, dried fruits, roasted seeds and nuts, salt, monosodium glutamate, chicken essence, seeds, grains, hardware and other granular materials quantitative filling packaging.



Working principle



DCS-GF granules bagging machine needs manual bag loading. The bag is put on the discharging port of the bagger manually, and the bag clamping switch is turned on. After receiving the bagging signal, the control system drives the cylinder, and the bag gripper clamps the bag. At the same time, the feeding mechanism is started to send the materials from the silo to the packaging scale. The feeder is of gravity feeding mode. When the target weight is reached, the feeding mechanism stops and the bag clamping device opens automatically, The package bag falls onto the conveyor automatically, and the conveyor transports the bag to the sewing machine. After the sewing and sealing, the bag is output backward to complete a bagging process.



Functional features



1. Manual assistance is needed for bag loading, automatic weighing, bag clamping, filling, automatic conveying and sewing;

2. Gravity feeding mode is adopted to ensure the bagging speed and accuracy through instrument control;

3. It adopts high precision sensor and intelligent weighing controller, with high precision and stable performance;

4. The parts in contact with materials are made of stainless steel with high corrosion resistance;

5. Electrical and pneumatic components are imported components, long service life and high stability;

6. The control cabinet is sealed and suitable for harsh dust environment;

7. Material out of tolerance automatic correction, zero point automatic tracking, overshoot detection and suppression, over and under alarm;

8. Optional automatic sewing function: photoelectric induction automatic sewing after pneumatic thread cutting, saving labor.



Model DCS-GF DCS-GF1 DCS-GF2
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 200-300bag/hour 250-400bag/hour 500-800bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Dimension (LxWxH)mm 3000x1050x2800 3000x1050x3400 4000x2200x4570
The size can be customized according to your site.
Weight 700kg 800kg 1600

The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.
