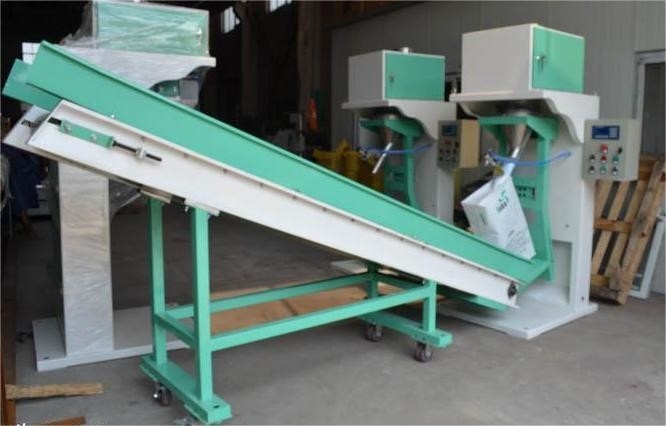

Semi Automatic Granules Packing Machine 50 Kg Pet Dog Cat Food Pellet

Product Description

25 Kg 50 Kg Pet Dog Cat Food Pellet Semi Automatic Granules Packing Machine

Introduction

Structure:

The unit consists of the ration automatic packing scale and the selecting and matching parts: conveyor, the hemming machine and the heat seal machine. It uses conveyor to feed the material and the feed gearing is suitable for a comparatively worse fluidity of powdery material and grainy material. The main component parts are conveyor, weighing and clamping box, the computer control and the pneumatic actuator.

Main using:

It is suitable for rationing package of the powdery or particulate material in the food, grain, feed and chemical industry etc. (for example the bean pulp, linter pulp, mixture, chemical powder, bran and powdery grains etc.)

Working principle

DCS-GF granules bagging machine needs manual bag loading. The bag is put on the discharging port of the bagger manually, and the bag clamping switch is turned on. After receiving the bagging signal, the control system drives the cylinder, and the bag gripper clamps the bag. At the same time, the feeding mechanism is started to send the materials from the silo to the packaging scale. The feeder is of gravity feeding mode. When the target weight is reached, the feeding mechanism stops and the bag clamping device opens automatically, The package bag falls onto the conveyor automatically, and the conveyor transports the bag to the sewing machine. After the sewing and sealing, the bag is output backward to complete a bagging process.

Functional features

1. Manual assistance is needed for bag loading, automatic weighing, bag clamping, filling, automatic conveying and sewing;

2. Gravity feeding mode is adopted to ensure the bagging speed and accuracy through instrument control;

3. It adopts high precision sensor and intelligent weighing controller, with high precision and stable performance;

4. The parts in contact with materials are made of stainless steel with high corrosion resistance;

5. Electrical and pneumatic components are imported components, long service life and high stability;

6. The control cabinet is sealed and suitable for harsh dust environment;

7. Material out of tolerance automatic correction, zero point automatic tracking, overshoot detection and suppression, over and under alarm;

8. Optional automatic sewing function: photoelectric induction automatic sewing after pneumatic thread cutting, saving labor.

The above parameters are only for your reference, the manufacturer reserves the right to modify the parameters with the development of the technology.
