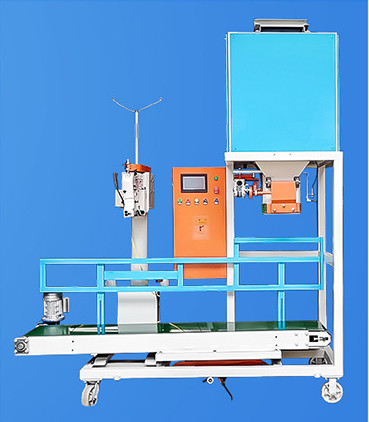

Movable Granules Bagging Machine Stand Up Zipper Pouch Packaging Machine 4kw

Minimum Order Quantity : 1
Place of Origin: China Brand Name: JL

Detail Information

Name: Movable Granule Packing Machine Warranty: 1 Year
Bag Conveyor: Mobile Packing Weight Range: 500-2000 Kg/bag
Advantage: Easy Operation High Efficiency Raw Material Shape: Powder, Granule
Voltage: 220V/380V Power: 4 Kw
High Light:

Movable granules bagging machines 4kw

,

zipper pouch bag packing machine 4kw

,

4kw zipper pouch bag packing machine

Product Description

Movable Granule Packing Machine, Automatic Stand up Zipper bag Food Weight Packing Machine



Introduction:

The organic fertilizer bulk packing machine/packaging machine for fertilizere can be divided into semi-automatic packing machine and automatic packing machine. The packing machine is composed of the automatic quantitative packing scale (including storage hopper, feeder, weighing bucket bag clamping, computer control, pneumatic components, etc.) and the optional part(including conveyor machine, sewing machine or welding machine). It adopts screw feeding, and the material is forced out by the feeding mechanism.



Features of organic fertilizer packing machine/packaging machine for fertilizer:

1. High precision: With high precision weighing controller, good stability.

2. Good integrity: Small footprint, flexible installation.

3. Adjustable speed: The feeding mode of powder materials equipment is screw feeding, fast adding and slow feeding is realized by controller, and feeding speed can be arbitrarily set.

4. Environmental protection: Closed internal circulation system, effectively prevent dust flying, improve the working environment, and protect the health of operating personnel.

5. Reasonable structure: The automatic machine has the advantages of compact structure and small size, and can be used for making fixed or moving machines according to the requirements of users.



Parameter:

Model DCS-GF DCS-GF1 DCS-GF2
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 200-300bag/hour 250-400bag/hour 500-800bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Dimension (LxWxH)mm 3000x1050x2800 3000x1050x3400 4000x2200x4570
The size can be customized according to your site.
Weight 700kg 800kg 1600



Movable Granules Bagging Machine Stand Up Zipper Pouch Packaging Machine 4kw 0





Movable Granules Bagging Machine Stand Up Zipper Pouch Packaging Machine 4kw 1Movable Granules Bagging Machine Stand Up Zipper Pouch Packaging Machine 4kw 2

Movable Granules Bagging Machine Stand Up Zipper Pouch Packaging Machine 4kw 3



About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
