Workshop Central Collector / Extractor Unit Collection System Industrial Dust Free Machine

Minimum Order Quantity : 1 set Price : $12,000.00 - $23,000.00/Pieces
Packaging Details : PLYWOOD BOX Supply Ability : 100 Set/Sets per Month
Place of Origin: China Brand Name: JL

Detail Information

Name: Dust Collector Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Food & Beverage Shops
Application: Food, Commodity, Chemical Automatic Grade: Automatic
Driven Type: Electric, Electric Voltage: 380v
Key Selling Points: Easy To Operate Marketing Type: Hot Product 2022
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Type Of Bags: Except Jute Made, All Other Material Bags Material Retention: 2% Maximum
After Warranty Service: Video Technical Support, Spare Parts, Field Maintenance And Repair Service After-sales Service Provided: Online Support, Video Technical Support
Core Components: PLC, Motor, Pressure Vessel

Product Description

Workshop Central Collector / Extractor Unit Collection System Industrial Dust Free Machine



The dust collector is a dry industrial filtering device. It is suitable for capturing tiny, dry, non-fibrous dust. The filter bag is made of textile filter cloth or non-woven felt, and the dusty gas can be filtered by the filtering effect of the fiber fabric to achieve the treatment effect of flue gas.



The dust collector can effectively reduce the dust content at the production site through the dust and gas isolation method, and can effectively increase the service life of the bag or filter cartridge through the pulse valve ,thereby reducing the maintenance cost.



Technical parameters:

Model Bag Qty. Filter area

Air volume

(m³/h)

Weight

(kg)

1m

(m²)

1.5m

(m²)

2m

(m²)

TBLMF4 4 1.6 2.5 3.3 800-1200 200
TBLMF6 6 2.5 3.7 5 1200-1500 240
TBLMF9 9 3.7 5.5 7.4 1900-2500 300
TBLMF12 12 5 7.3 9.9 2200-3000 380
TBLMF15 15 6.2 9.2 12.3 2500-3600 430
TBLMF18 18 7.4 11 14.8 3150-4500 480
TBLMF21 21 8.6 12.8 17.2 3500-5500 515
TBLMF24 24 9.9 14.7 19.7 4220-6000 600
TBLMF28 28 11.5 17.1 23 4500-7500 695
TBLMF32 32 13.1 19.6 26.1 4780-8000 720
TBLMF36 36 14.8 22 29.6 5800-8400 750
TBLMF40 40 16.3 24.5 32.7 6800-9800 820
TBLMF42 42 17.1 25.7 34.3 7000-11000 888
TBLMF48 48 19.7 29.3 39.4 6400-10800 900
TBLMF56 56 23 34.2 46 8400-12000 982
TBLMF64 64 26.1 39.2 52.2 10500-16500 1100
TBLMF72 72 29.4 44.1 58.8 11600-16800 1300
TBLMF104 104 42.5 63.7 84.9 16500-23700 1500

Each size is equipped with a different length of the different types of dust bag



Such as

TBLMF4:

Filter bag length

(M)

Filter area

(M2)

Air volume

(m3/h)

1 1.6 800
1.5 2.5 1000
2 3.3 1200

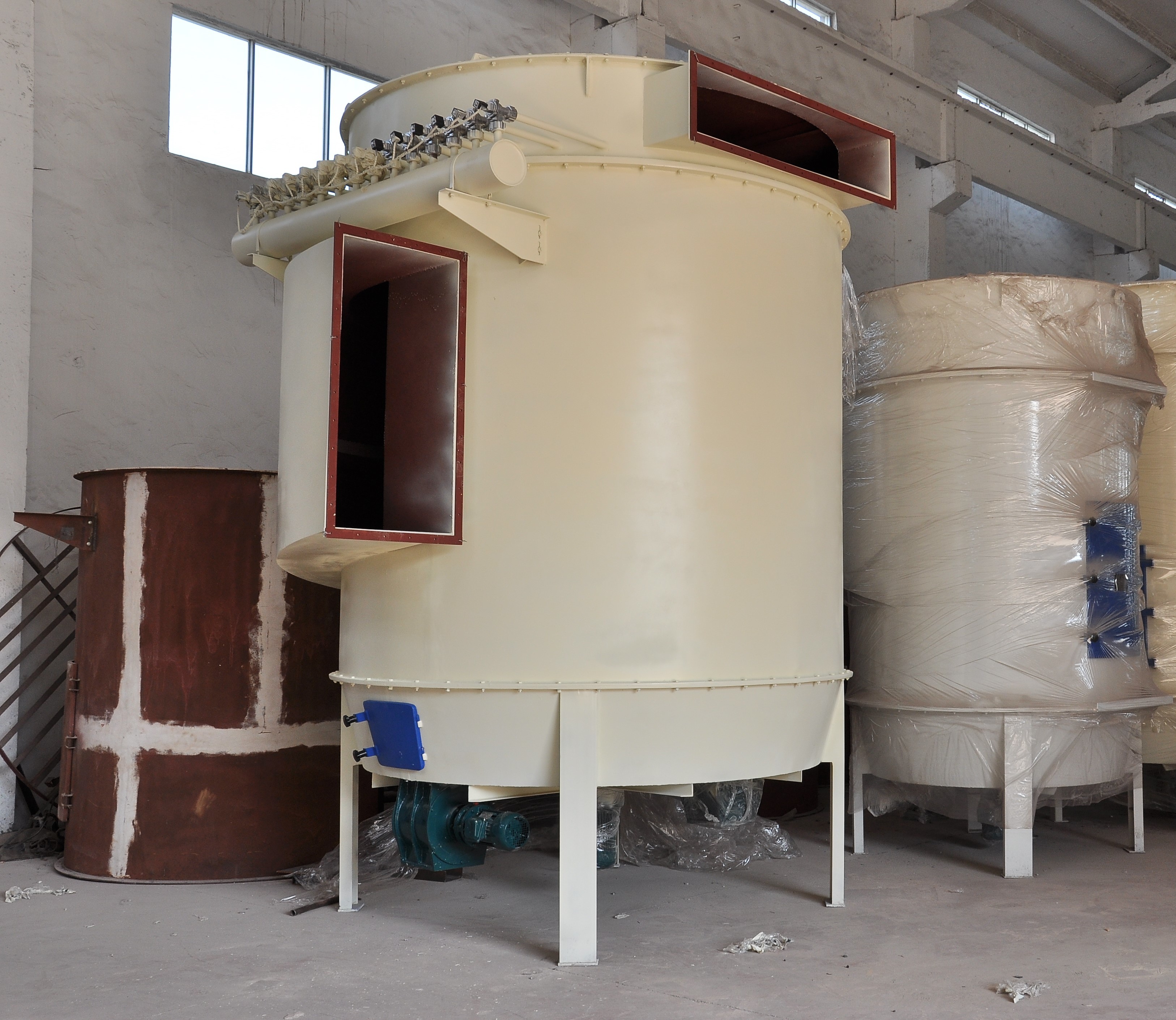

Workshop Central Collector / Extractor Unit Collection System Industrial Dust Free Machine 0
