Industrial Bag Flattener System Machine Shaping Automatic Auxiliary Equipment
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
Detail Information |
|||
Name: | Metal Detector | Automatic Grade: | Automatic |
---|---|---|---|
Warranty: | 1 Year | Total Power (KW): | 4 |
Transmission Power (KW): | 0.75 | After Warranty Service: | Video Technical Support, Spare Parts, Field Maintenance And Repair Service |
Main Material: | Stainless Steel 304 | ||
High Light: | Sea Food electronic metal detector,electronic devices metal detector,metal detector Auxiliary Equipment |
Product Description

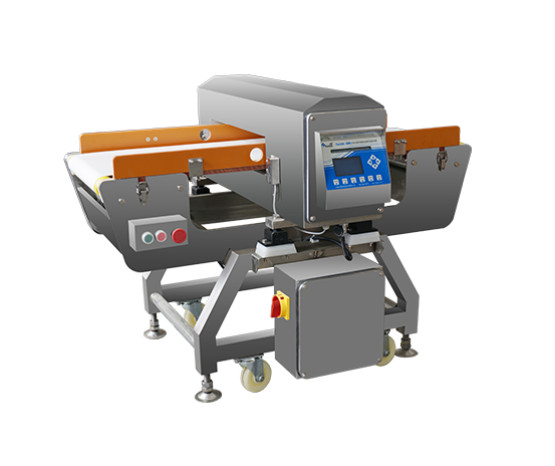

Metal Detector Sea Food Electronic Metal Detector
Product Advantages:
1. Made of 304 stainless steel, durable and nice appearance, conveyor and pallet assembly used in the U.S. standards of white non-toxic materials.
2. Digital machine, memory function for registering various products(Max: over 12 items)
3. Adopt the combine technology of double signal and detection circuit, LCD display, with Chinese and English menu, easy operation.
4. Adopt Germany professional detection technology with balanced principle, more reliable, better performance.Dual-channel and
frequency detecting ferrous, non-ferrous and stainless steel
5. DSP and MCU combination of the detection signal for data sampling and data processing, improve the detection results.
6. A new circuit design, high sensitivity, mature phase adjustment technology, can adjust the products automatically, inhibit the products effect effectively.
7. Able to detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials.
8. With the learning function of automatic identification, overcome the effect of products materials efficiently, strong anti-interference and shock proof.
9. Support 24 hours non-stop working.
10. Fairly good waterproof ability, apply to high temperature, low temperature, damp, dry, dust, dew and other poor work environment.
Brand Name | JL |
Name | Conveyorised Metal Detection Systems |
Model | IMD-I |
Specifications | 6025 |
Main Material |
Made in stainless steel 304 |
Detection sensitivity(without product) |
Fe≥1.2mm Non-Fe≥2.0mm Sus304≥2.5~3.0mm |
Effective Search coil opening Width |
600mm |
Effective Search coil opening Height |
250mm |
Conveyor Length |
1800mm |
Belt Width | 560mm(PU belt) |
Belt Speed | 25m/min |
Height from the floor to the conveyor belt |
750(+100)mm |
Product Memory | 52 kinds |
Rejector | When metal is found, alarm sounds, belt stops. |
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
