Industrial Bag Flattener System Machine Shaping Automatic Auxiliary Equipment
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
Detail Information |
|||
Name: | Sewing Machine | Automatic Grade: | Automatic |
---|---|---|---|
Voltage: | 380v | Thread Type: | 20S/5, 20S/3, Synthetic Fibre Thread |
Marketing Type: | Hot Product 2022 | After Warranty Service: | Video Technical Support, Spare Parts, Field Maintenance And Repair Service |
Max. Speed: | 1900 Rpm | Warranty: | 1 Year |
Place Of Origin: | China | Applicable Industries: | Garment Shops, Manufacturing Plant, Machinery Repair Shop |
Product Description

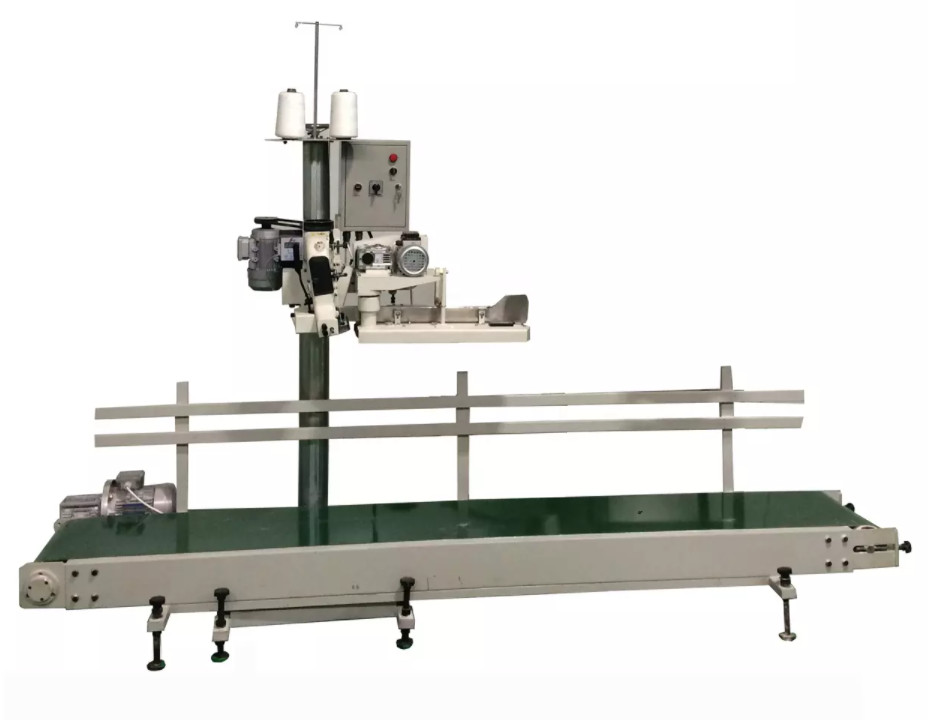

Horizontal Table Type Continuous Plastic Bag Band Sealing Machine bag sewing machine plastic bag closing machine
Sewing machine is a device for sewing the mouth of plastic woven bags, paper bags, paper-plastic composite bags, aluminum-coated paper bags and other bags. It mainly completes the stitching and seaming of bags or knitting.
Technical Parameters
Model | GK35-2C | GK35-6A | GK35-8 |
Max. Speed | 1900 Rpm | 2000 Rpm | 1900 Rpm |
Thickness of material | 8 mm | 8 mm | 8 mm |
Range of Stitch width | 6.5-11 mm | 6.5-11 mm | 6.5-11 mm |
Thread type | 20S/5, 20S/3, Synthetic fibre thread | ||
Needle | Model 80800 ×250# | ||
Thread chain Cutter | Manual | Electro-pneumatic | Electro-pneumatic |
Weight | 27 Kg | 28 Kg | 31Kg |
Size | 350×215×440 mm | 350×240×440 mm | 510X510X335 mm |
Start-stop Type | pedal switch | light-controlled switch | pedal switch |
Re-mark | Single-Needle, Two-Thread | Double-Needle, Four-Thread |
About us
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
