products beverage mineral water wine cosmetics oil food Dynamic Checkweigher online weighing machine

Minimum Order Quantity : 1
Place of Origin: China Brand Name: JL

Detail Information

Name: Weighing Rechecker Weighing Range: 0.1-60kg
Accuracy: +/-10g Scale Division: 2 Gram
Weighing Speed: 50 Pcs/min Height: 750+/-50mm
Platform Size: 1280*710mm

Product Description

Products beverage mineral water wine cosmetics oil food Dynamic Checkweigher online weighing machine weighing range 0.1-60kg





Introduction:

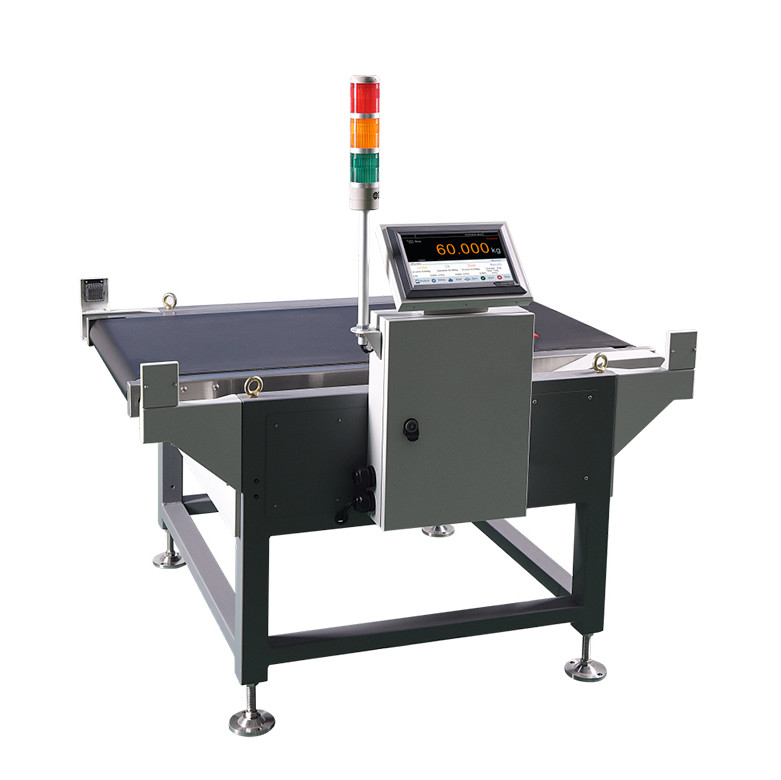

CW-60K, an automatic checkweigher integrated the new dynamic weighing technology offers a high precision solution in weighing system to a wide range of industries, such as food, grain, fertilizer and cement, especially to logistics regarding to heavy load production line. The automatic weighing and sorting machine is widely used in medicine, fine chemicals, cosmetics, light industry, batteries, health products, food and other industries that require precise weight testing.



Scope of application:
This product is mainly suitable for the weight detection of large weight and large volume items, especially suitable for the detection of missing parts in the whole box; such as: lack of bottles, lack of boxes, lack of one, missing pieces, lack of bags, lack of cans, etc.



Parameters:

Model Checkweigher CW-60K
Scale Division 2 Gram
Weighing range 0.1-60 kg
Accuracy +/- 10 g
Weighing speed 50 pcs/min
Belt speed 10-60 meter/min
Platform size 1280*710 mm
Height 750+/-50 mm
Belt size 1200*600 mm
Belt material PVC (black)
Belt thickness 2 mm
Tested object size 100~1000*50~550*50~550 mm
Display size 10 inch
Alarm light 3-color signal light
Alarm horn optional
Holder/Frame material carbon steel paint
Weigher platform material 201 stainless steel
Data storage 100 sets of parameters and 1 million weighting results
Communication RS485 (Modbus RTU)/ Modbus TCP/IP
Rejection mechanism user customized
Segments user customized
Air pressure user customized
IP grade IP54



products beverage mineral water wine cosmetics oil food Dynamic Checkweigher online weighing machine 0
