Industrial Bag Flattener System Machine Shaping Automatic Auxiliary Equipment
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
Detail Information |
|||
Name: | Weighing Rechecker | Scale Division: | 2 Gram |
---|---|---|---|
Weighing Range: | 0.1-60kg | Accuracy: | +/-10g |
Weighing Speed: | 50 Pcs/min | Platform Size: | 1280*710mm |
Product Description

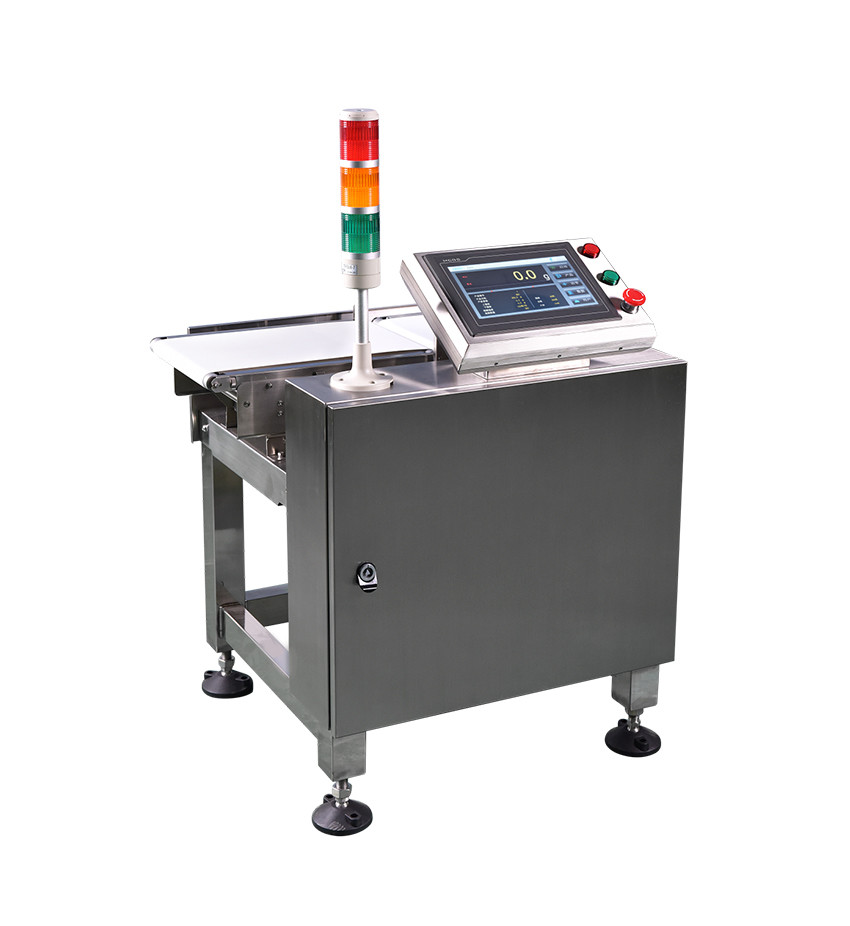

Food check weigher machine check food,pharmaceutical with good checkweigher
Introduction and features
CW-60K, an automatic checkweigher integrated the new dynamic weighing technology offers a high precision solution in weighing system to a wide range of industries, such as food, grain, fertilizer and cement, especially to logistics regarding to heavy load production line.
Features:
Apply HBM load cell ensure high accuracy and stability (original from Germany);
Reject arm, air blast or pneumatic pusher for selecting;
Belt disassembling without tools, which is easier to clean;
Install emergency switch at the size of machine, user friendly operation;
Arm device show clients clearly for the production situation (optional);
Product application:
Weighing and sorting is suitable for testing whether the weight of a single product is acceptable or the product is packaged.
Whether there are any omissions in the process, widely used in pharmaceutical, food, beverage, electronics, health care
Products, daily chemicals, light industry, agricultural and sideline products and many other industries. Such as boxed medicines, food industry
Parameters:
Model | Checkweigher CW-60K |
Scale Division | 2 Gram |
Weighing range | 0.1-60 kg |
Accuracy | +/- 10 g |
Weighing speed | 50 pcs/min |
Belt speed | 10-60 meter/min |
Platform size | 1280*710 mm |
Height | 750+/-50 mm |
Belt size | 1200*600 mm |
Belt material | PVC (black) |
Belt thickness | 2 mm |
Tested object size | 100~1000*50~550*50~550 mm |
Display size | 10 inch |
Alarm light | 3-color signal light |
Alarm horn | optional |
Holder/Frame material | carbon steel paint |
Weigher platform material | 201 stainless steel |
Data storage | 100 sets of parameters and 1 million weighting results |
Communication | RS485 (Modbus RTU)/ Modbus TCP/IP |
Rejection mechanism | user customized |
Segments | user customized |
Air pressure | user customized |
IP grade | IP54 |
About us:
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.
No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
FAQ:
Please give me more details about your requirement including material characteristics, bag material, bag size, capacity, we will give the best packaging solution for you.
Payment terms: 30% deposit, 70% before shipment
Delivery time: 25-60 days after your remittance reaches our bank account
