Fertilizer Granules Bagging Machine Nutrient Soil Volumetric Packing Machine 4kw

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-GF

Detail Information

Name: Granule Packing Machinery Weighing Range: 25-50kg (customized)
Power (KW): 4 Precisions: ±0.2%FS
Power Supply: 380V/50HZ Driven Type: Electric
Package Capacity: 250-400bag/hour Weight: 800
High Light:

Fertilizer granules bagging machines 4kw

,

Nutrient Soil volumetric packing machines 4kw

,

granule filler 4kw

Product Description

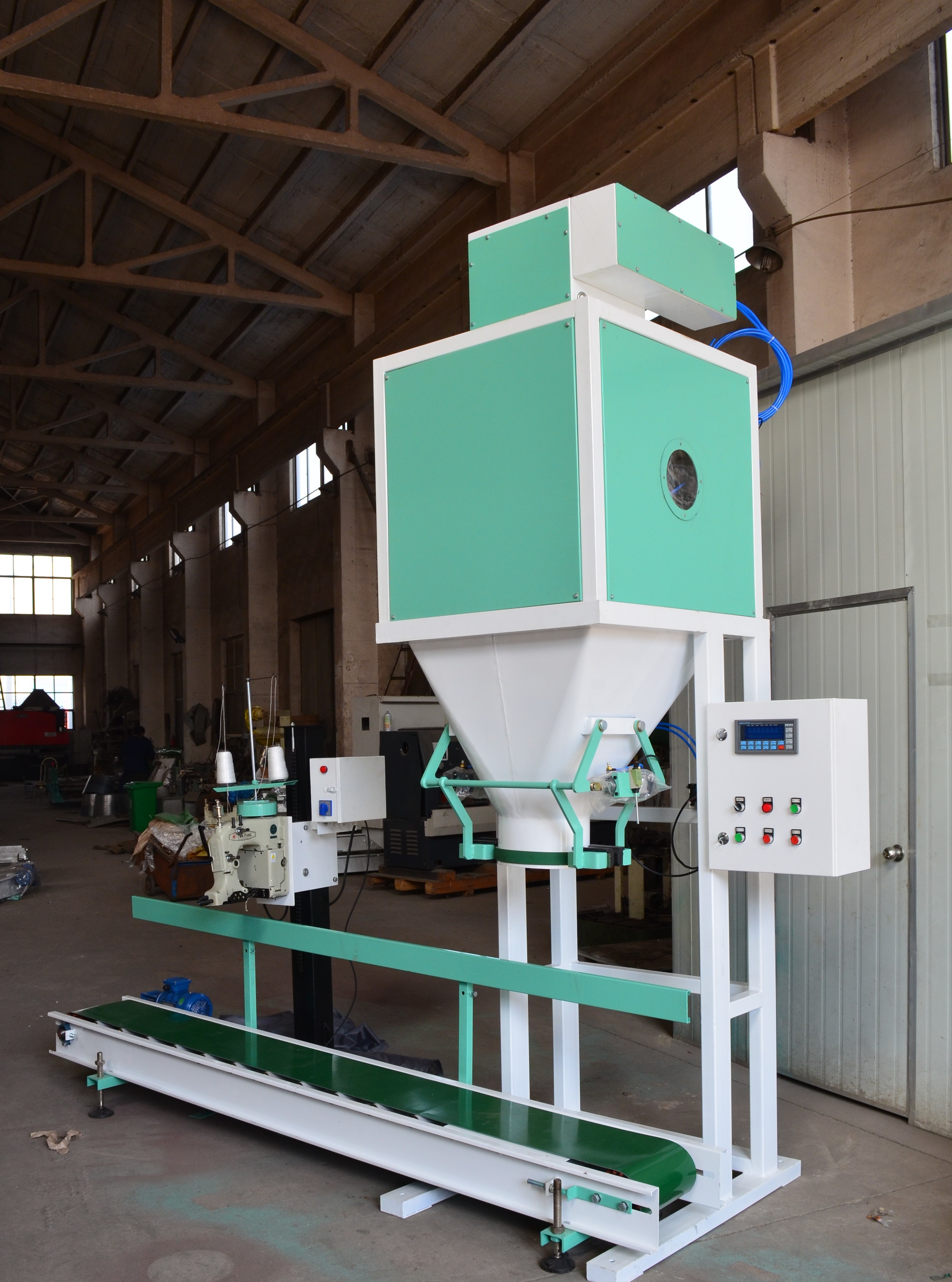

Nutrient Soil Volumetric Granule Packing Machinery, Organic Fertilizer Granul Packing Machine



It is suitable for rationing package of the powdery material in the feed, food, grain, chemical industry or particulate material. (For example the grainy material in the mixture, premix material and concentrated material, starch, chemical powder material etc.)



The single scale has one weighing bucket and the double scale has two weighing buckets. The double scales can discharge materials in turn or in parallel. When discharging materials in parallel, the measuring range and error are doubled.



Technical parameters



Model DCS-GF DCS-GF1 DCS-GF2
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 200-300bag/hour 250-400bag/hour 500-800bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Dimension (LxWxH)mm 3000x1050x2800 3000x1050x3400 4000x2200x4570
The size can be customized according to your site.
Weight 700kg 800kg 1600



Working principle



The granule packaging machine with single hopper needs to manually wear the bag, manually put the bag on the discharging spout of the packing machine, toggle the bag clamping switch, and the control system will drive the cylinder after receiving the bag clamping signal to drive the bag clamp to clamp the bag and start feeding at the same time The mechanism sends the material in the silo into the weighing hopper. After reaching the target weight, the feeding mechanism stops feeding, the silo is closed, and the material in the weighing hopper is filled into the packaging bag by gravity feeding. After the filling is completed, the bag clamper will automatically open, and the filled packaging bag will automatically fall onto the conveyor, and the conveyor will be transported back to the sewing machine. The bag will be manually assisted to sew and output to complete the packaging process.



Fertilizer Granules Bagging Machine Nutrient Soil Volumetric Packing Machine 4kw 0



About us



     Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.



Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.

No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
