Telescopic Retractable Loading Spout Truck Dustless Loading Tube

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Telescopic Truck Loading Tube Power: 0.75-3KW
Length: ≤7000mm Loading Capacity (T/H): 600-1000
Air Volume For Dust Collector: 3500 Place Of Origin: China
Control Box: Explosion-proof Mode Control Box
High Light:

retractable truck loading spout


dustless loading spout


Telescopic loading spout

Product Description

Telescopic Truck Loading Tube Container Loading and Unloading Tube


Production Description


Truck Loading (Filling) Bellows are products used to fill materials from silos where powder fluids are stored to open box trucks.When the truck to be filled approaches the bottom of the silo, the bellows opens down and goes down to the bottom of the truck chassis. The valve that will start the flow from the hand control set of the loading bellows is opened and the filling process starts.


The loading bellows guides the spilled material during the filling process and the level sensor at the lowest part of the loading bellows allows the bellows to be collected slowly upwards until the truck is full. When the filled material approaches the upper limits of the truck bed, the operator can interrupt the material flow from the hand control set.


Loading bellows are manufactured as two intertwined bellows (double walled). Thus, the air + dust mixture that is created as the material is filled into the truck finds the opportunity to exit towards the filtering system. The lower skirt of the truck loading bellows, which opens towards the filled material, prevents the dust formed during filling from spreading out and allows it to move towards the filtration system. In facilities that do not have a central dust collection system, local filters can also be manufactured to absorb only the dust emanating from the loading bellows. Thanks to the jet pulse cleaning system in these filters, the dust extracted is separated from the filter cartridges and recycled. In this way, the waste of the material by dusting and pollution by spreading to the environment is prevented. The inner buckets of the loading bellows, which are in contact with the material, can be manufactured from carbon steel, hardox material or stainless steel material (food compatible) according to the physical and chemical properties of the material to be loaded.


In case the material to be loaded is at high temperatures (such as hot ash), special textile products resistant to high temperatures are used as the bellows fabric and loading can be done successfully.



. Intelligent material level sensor, tracing material’s automatic lifting.

. manual-automatic operation.

. high reliable control system

. provide electrical interlock control signal / operation status signal connection, easy for central control.

. general / anti-exposure selection.

. telescopic chute length adjustable, less installation space.


Model Loading capacity (T/H) Power Length Air volume for dust collector
JLSG 50-100






JLSG 200-300 2000
JLSG 400-500 2800
JLSG 600-1000 3500

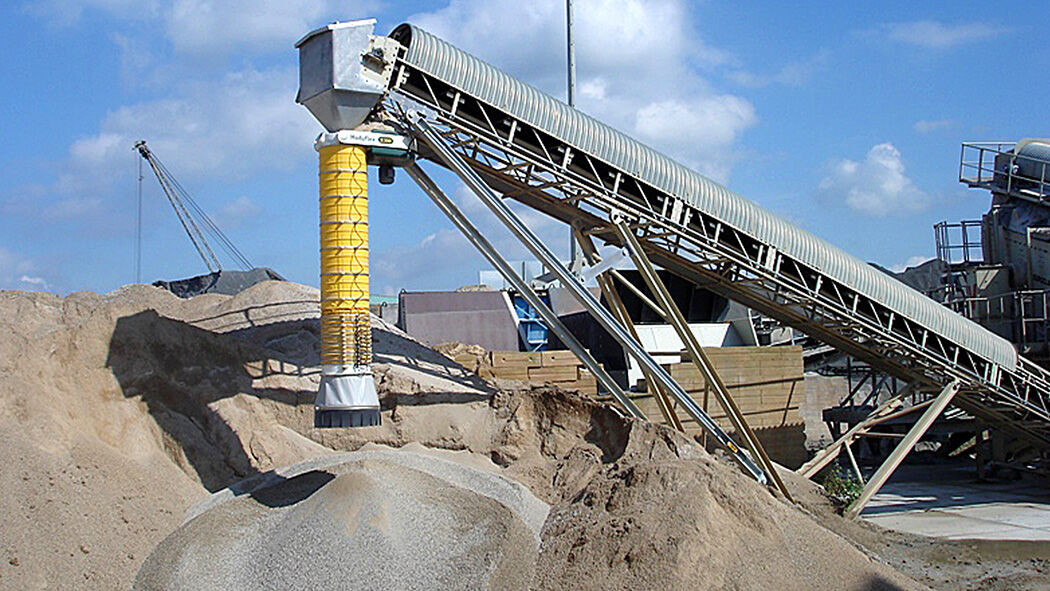

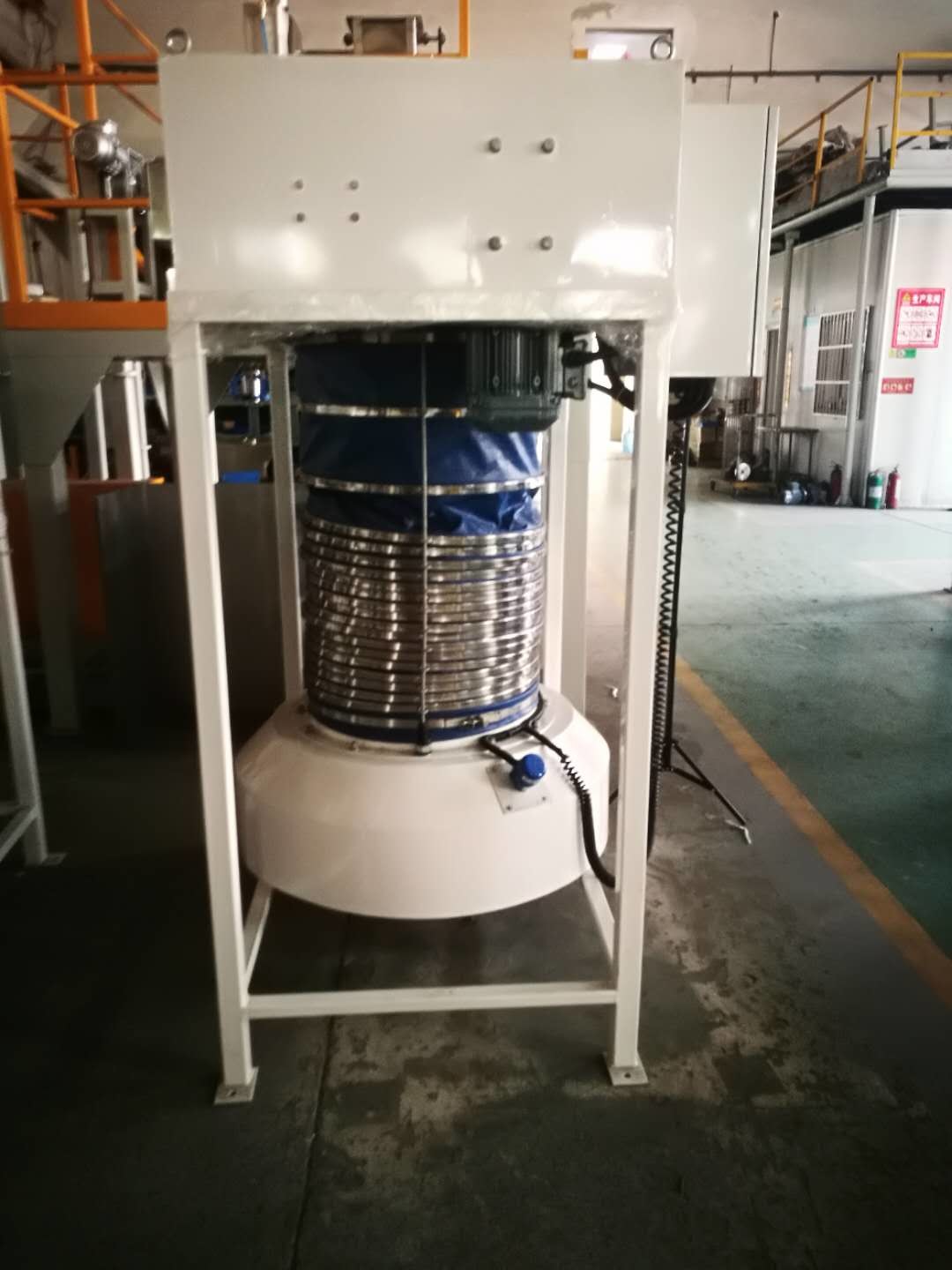

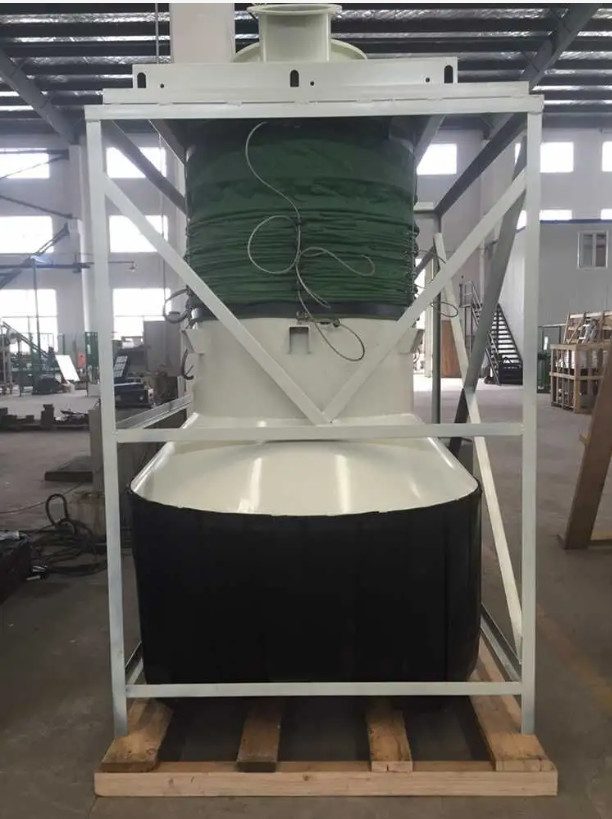

Telescopic Retractable Loading Spout Truck Dustless Loading Tube 0Telescopic Retractable Loading Spout Truck Dustless Loading Tube 1
