Retractable Telescopic Loading Chute Corn Cement Container Unloading Bulk Truck

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Telescopic Chute Marketing Type: Hot Product 2022
Loading Capacity (T/H): 400-500 Power: 0.75-3KW
Length: ≤7000mm Air Volume For Dust Collector: 2800
Place Of Origin: China
High Light:

retractable loading chute


retractable Telescopic Loading Chute


Telescopic Loading Chute Corn

Product Description

Loader Cement Container And Unloading Bulk Truck Loading Telescopic Chute For Corn


Product overview

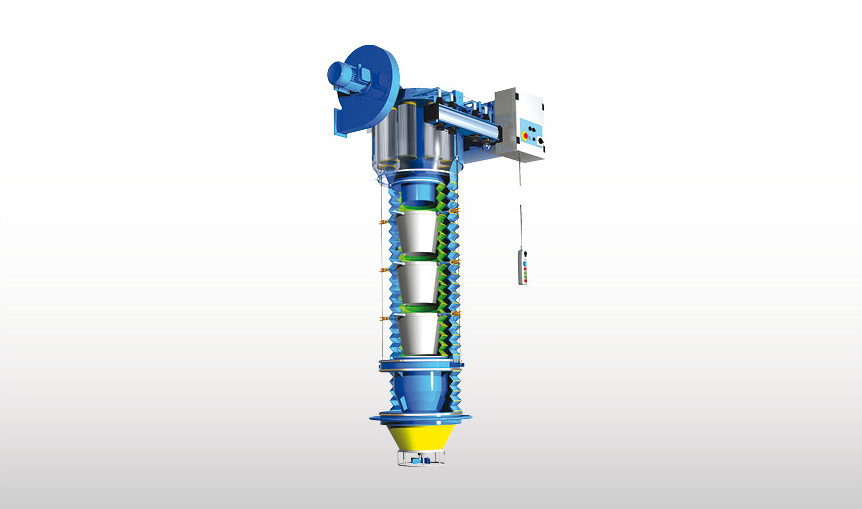

The telescopic chute adopts double casing structure, which is composed of chute and dust cover. The material passes through the chute, and the dust cover is covered on the chute. During the process, the dust suction chamber is moved. The bottom of dust-free telescopic chute will be provided with material level sensor and dust-proof group cover. The material level sensor will be set on the outside or inside, and the dust cover will be of block overlap type. In the loading process, after the material level sensor contacts the material, the dust-free telescopic chute will be lifted in time to keep a certain distance between the material top and the accumulated materials. The dust-proof group cover can cover the material pile to ensure the dust collection effect and prevent dust overflow. The chute will be made of steel plate with polyurethane wear-resistant lining plate, and the dust cover is made of chemical fiber material with anti-static soft strength. A supporting framework will be set in the dust cover, which can not only stretch up and down, but also ensure smooth air flow. At least three lifting points will be set at the bottom of the telescopic chute to ensure that the lifting mechanism drives the telescopic chute to rise and fall smoothly.



. Intelligent material level sensor, tracing material’s automatic lifting.

. manual-automatic operation.

. high reliable control system

. provide electrical interlock control signal / operation status signal connection, easy for central control.

. general / anti-exposure selection.

. telescopic chute length adjustable, less installation space.


Model Loading capacity (T/H) Power Length Air volume for dust collector
JLSG 50-100






JLSG 200-300 2000
JLSG 400-500 2800
JLSG 600-1000 3500



Retractable Telescopic Loading Chute Corn Cement Container Unloading Bulk Truck 0


Retractable Telescopic Loading Chute Corn Cement Container Unloading Bulk Truck 1
