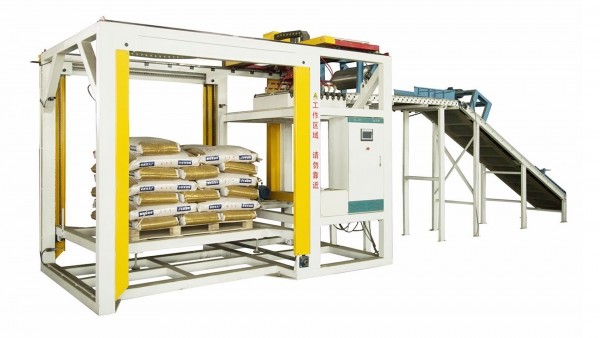

Conventional Palletizer Line Lift Bottle Depalletizer Machine Film Pack 20kg

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Low Position Palletizer Air Pressure: 0.6-1.0Mpa
Palletizing Layers: 1-12 Layers Weight Range: 20-50kg/bag
Palleting Capacity: 300-600 Bags/hour Power Supply: 380V 50HZ Three-phase Four-wire
Core Components: Gearbox, Motor Machinery Test Report: Provided
High Light:

palletizer lift 20kg

,

Conventional Palletizer Lines 20kg

,

bottle palletizer machine 20kg

Product Description

Conventional Palletizer Machine System for stacking water bottle cartons and palletizing film packs on pal



Working principle



The main components of the automatic palletizer are: Summary conveyor, climbing conveyor, indexing machine, marshalling machine, layering machine, elevator, pallet warehouse, pallet conveyor, pallet conveyor and elevated platform, etc. While each palletizer is pre-programmed for unit sizes and pallet patterns to accommodate your current requirements, it is easy to add new configurations and patterns at the operator console. A complete selection of product infeed and pallet discharge alternatives are available, as well as many orienting and accumulation options for palletizing.



The fully automatic palletizer receives palletized products at a specific height or level above the pallet. Empty pallets are sent from a silo or accumulation station to the palletizer, the machine supports the pallets and positions them under a pallet; the products are stacked into a layer or a row after being loaded into the pallet; the palletizer puts the palletizers in place Put the product layers or product columns lightly on the pallets below them, and then continue to stack the next layer of products, change the arrangement of the carton to match the pallet arrangement, and sometimes insert cardboard between layers to separate them Upper and lower layers; subsequently, the pallet and one layer of products will drop one layer so that the next layer of products can be placed on one layer of products. The pallet continues to drop, and the product layer after layer continues to be stacked until the specified quantity is reached; the pallet after the code is slowly lowered to the ground level, and a conveyor or forklift is responsible for transporting it to other workbenches. Bundling or stretching, wrapping, etc., and then transported to the factory.

High position palletizer is used behind the packaging scale. In front of the palletizer, it can be equipped with bagging machine, boxing machine, sealing machine, fully automatic bagging machine, metal detector, weight recheck and other equipment.





Low position palletizer,low position packaging and palletizing system



The low position palletizer can work for 8 hours to replace 3-4 people, which saves the company's labor cost every year. It has strong applicability and can realize multiple functions. It can encode and decode multiple lines on the production line, and the operation is simple. , People who have not operated before can get started with simple training. The packaging and palletizing system is small, which is conducive to the layout of the production line in the customer’s factory. The palletizing accuracy is high. Human-computer interaction, program gripper movement can be realized. The palletized goods are strong, which will avoid the collapse phenomenon , and helpful for product transportation and storage.



Technical description



Weight range 20-50kg/bag
Palletizing capacity 300-600bag/hour
Palletizing layers 1-12 layers
Air pressure 0.6-1.0Mpa
Power supply 380V 50HZ three-phase four-wire





Conventional Palletizer Line Lift Bottle Depalletizer Machine Film Pack 20kg 0Conventional Palletizer Line Lift Bottle Depalletizer Machine Film Pack 20kg 1



About us


Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.


Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.


No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
