Sack Conventional Bag Palletizer Drum Box Carton Palletizer Machine Water Pack

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: High Position Palletizer Palleting Capacity: 300-600bag/hour
Palletizing Layers: 1-12 Layers Air Pressure: 0.6-1.0Mpa
Weight Range: 20-50kg/bag Power Supply: 380V 50HZ Three-phase Four-wire
High Light:

Sack conventional bag palletizer


Box carton palletizer machine


carton palletiser

Product Description

Automatic Packing Machine Industry Conventional Carton Box Palletizer water packs and cartons




1.The palletizer uses a professional servo control system to make palletizing the simplest. The control system has a full menu,intuitive and easy to learn.
2.According to customer requirements, this equipment can modify the system parameters, control the number of pallets and the number of bags per pallet, combine the advantages of palletizing robots, reduce large investment costs and save costs.
3.Most of the equipment's accessories use national standard parts, which is easy to maintain and universal in use, avoiding the cost of after-sales service and equipment maintenance.


Working principle


The main components of the automatic palletizer are: Summary conveyor, climbing conveyor, indexing machine, marshalling machine, layering machine, elevator, pallet warehouse, pallet conveyor, pallet conveyor and elevated platform, etc.


The fully automatic palletizer receives palletized products at a specific height or level above the pallet. Empty pallets are sent from a silo or accumulation station to the palletizer, the machine supports the pallets and positions them under a pallet; the products are stacked into a layer or a row after being loaded into the pallet; the palletizer puts the palletizers in place Put the product layers or product columns lightly on the pallets below them, and then continue to stack the next layer of products, change the arrangement of the carton to match the pallet arrangement, and sometimes insert cardboard between layers to separate them Upper and lower layers; subsequently, the pallet and one layer of products will drop one layer so that the next layer of products can be placed on one layer of products. The pallet continues to drop, and the product layer after layer continues to be stacked until the specified quantity is reached; the pallet after the code is slowly lowered to the ground level, and a conveyor or forklift is responsible for transporting it to other workbenches. Bundling or stretching, wrapping, etc., and then transported to the factory.

High position palletizer is used behind the packaging scale. In front of the palletizer, it can be equipped with bagging machine, boxing machine, sealing machine, fully automatic bagging machine, metal detector, weight recheck and other equipment.


Low position palletizer,low position packaging and palletizing system


The low position palletizer can work for 8 hours to replace 3-4 people, which saves the company's labor cost every year. It has strong applicability and can realize multiple functions. It can encode and decode multiple lines on the production line, and the operation is simple. , People who have not operated before can get started with simple training. The packaging and palletizing system is small, which is conducive to the layout of the production line in the customer’s factory. The palletizing accuracy is high. Human-computer interaction, program gripper movement can be realized. The palletized goods are strong, which will avoid the collapse phenomenon , and helpful for product transportation and storage.


Technical description

Weight range 20-50kg/bag
Palletizing capacity 300-600bag/hour
Palletizing layers 1-12 layers
Air pressure 0.6-1.0Mpa
Power supply

380V 50HZ three-phase four-wire

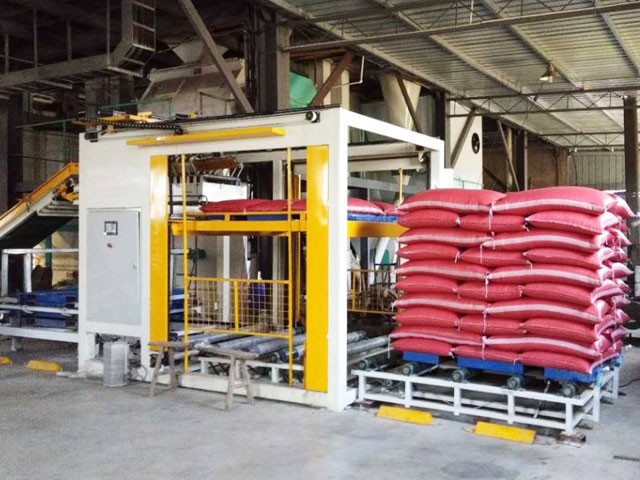

Sack Conventional Bag Palletizer Drum Box Carton Palletizer Machine Water Pack 0
