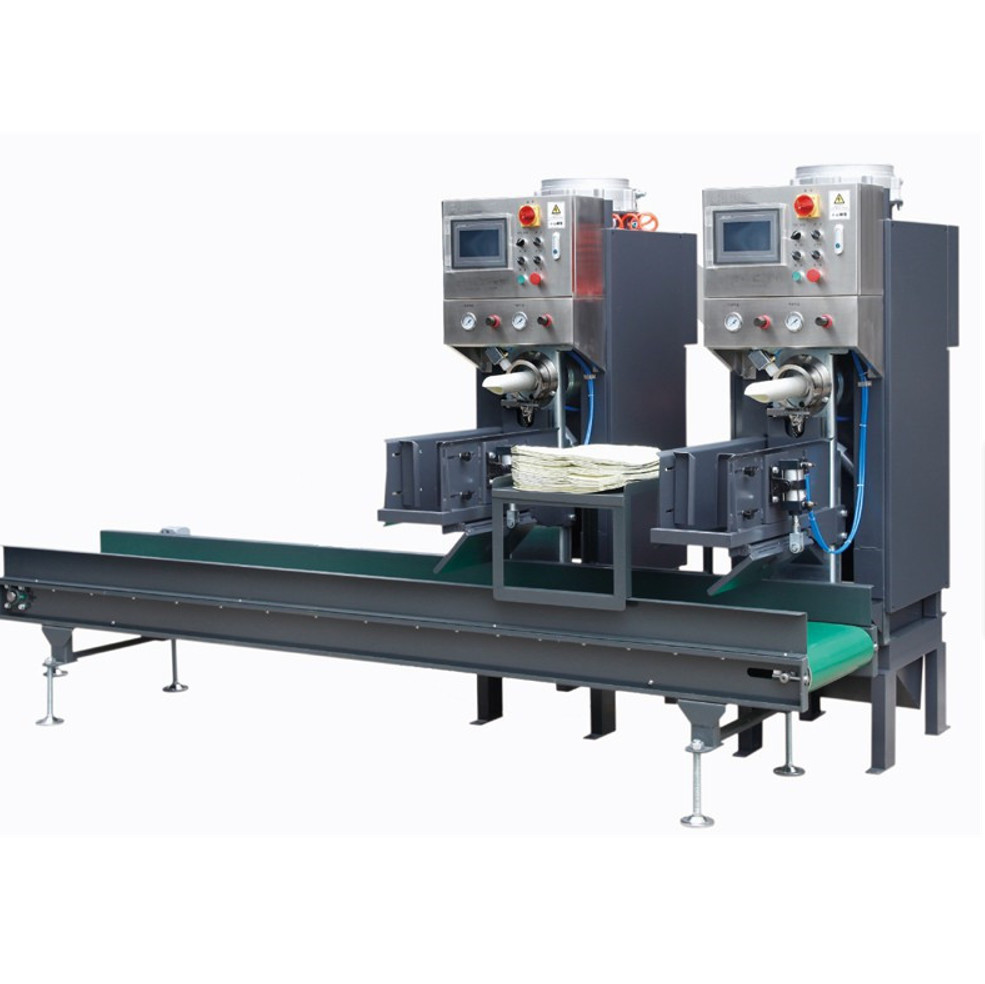

Flour Grain Valve Bag Filling Machine Automatic Powder Filling And Sealing

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Valve Bag Filling Machine Application: Food, Medical
Packing Capacity: 3-6 Bags / Min (Note: Different Material Packaging Speed Is Different) Packing Speed: 60~200 Bag/hour
Accuracy Level: ±0.2~0.5% Weighing Range: 1~50kg/Bag
Working Power Supply: 380V 50Hz 5.5Kw Aggregate In Packaging Materials: ≤Φ5mm
High Light:

flour bag filling machine


grain bag filling machine


Grain Valve Bag Filling Machine JL

Product Description

Powder Filling And Sealing Vacuum Machine, Valve Bag Filling Machine DCS-VBNP



Valve bag packing machine is mainly suitable for powders and granules, such as tile adhesive, dry mortar, titanium dioxide, flour or plastic articles, etc.

Vacuum type valve bag filling machine DCS-VBNP is specially designed and manufactured for superfine and nano powder with large air content and small specific gravity. Characteristics of the packaging process no dust spillover, effectively reduce the environmental pollution. Packaging process can achieve high compression ratio to fill materials, so that the shape of the finished packaging bag is full, the packaging size is reduced, and the packaging effect is particularly prominent. Representative materials such as silica fume, carbon black, silica, superconducting carbon black, powdered activated carbon, graphite and hard acid salt, etc.


Technical Parameters:

Weight range 1~50kg/Bag
Accuracy ±0.2~0.5%
Packing speed 60~200 bag/hour
Power 380V 50Hz 5.5Kw
Air consumption P≥0.6MPa Q≥0.1m3/min
Weight 900kg
Size 1600mmL × 900mmW × 1850mmH

Flour Grain Valve Bag Filling Machine Automatic Powder Filling And Sealing 0Flour Grain Valve Bag Filling Machine Automatic Powder Filling And Sealing 1



About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.

No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
