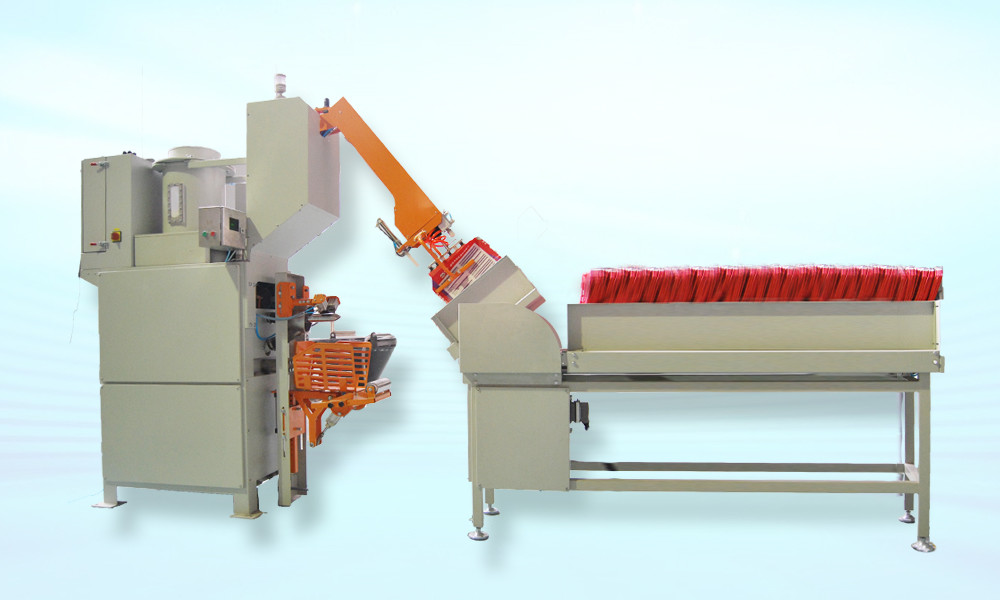

Dry Mortar Valve Bag Filling Machine 50 Kg 25 Kg 40 Kg Impeller Packer

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Valve Bag Packing Machine Packing Capacity: 3-6 Bags / Min
Weighing Range: 20-50kg Driven Type: Electric
Measuring Accuracy: ±0.2% Working Power Supply: AC 220V/50Hz 60W (Or According To The Customer's Requirement)
Voltage: 380v/50Hz Feed Port Size: Φ300mm
High Light:

bag packing machine 40kg


dry mortar packing machine


valve bagger machine

Product Description

Impeller type valve bag packing machine, Dry Mortar 25 Kg Packing Line


Application and Introduction of Valve Package Machine


Application: Dry powder mortar, putty powder, vitrified micro-beads inorganic thermal insulation mortar, cement, powder coating, stone powder, metal powder and other powder. Granular material, multi-purpose machine, small size and large function.


Introduction: The machine mainly has automatic weighing device. Display the program of setting weight, accumulative package number, working status, etc. The device adopts fast, medium and slow feeding and special feeding auger structure, advanced digital frequency conversion control technology, advanced sampling processing and anti-interference technology, and realizes automatic error compensation and correction to ensure higher weighing accuracy.


Features of Valve Package Machine

1. This machine uses computer metering device, weighing accurate, stable performance, simple operation.

2. The machine is completely sealed and equipped with dust removal port, with reasonable structure and durable, truly realizing environmental protection production.

3. Small size, light weight, convenient adjustment and maintenance.

4. Mechanical and electrical integration, energy saving, the machine can automatically realize the packaging bag pressing, loosening, the gate closing and bag lifting and other functions.

5. Widely use, this machine is not only used for fly ash packaging, but also can be used for other good fluidity powder, particle boring packaging. Dgf-50 series packaging machine mainly has two types of single mouth and double mouth, which can form 4-6 mouth packaging machine.



Applicable materials powder or granular materials with good fluidity
Material feeding method gravity flow feeding
Weighing range 5 ~ 50kg / bag
Packing speed 150-200 bags / hour
Measurement accuracy ± 0.1% ~ 0.3% (related to material uniformity and packaging speed)
Air source 0.5 ~ 0.7MPa Gas consumption: 0.1m3 / min
Power supply AC380V, 50Hz, 0.2kW


Dry Mortar Valve Bag Filling Machine 50 Kg 25 Kg 40 Kg Impeller Packer 0Dry Mortar Valve Bag Filling Machine 50 Kg 25 Kg 40 Kg Impeller Packer 1


About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.

No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
