5 Kg Pouch Packing Powder Bagging Machine Semi Automatic Corn 3.2kw

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-TB

Detail Information

Name: Powder Filling Machine Packaging Type: CANS, Bottles, Stand-up Pouch, Bags, Pouch
Precisions: ±0.2%FS Weighing Range: 1-5, 5-10, 10-25, 25-50 Kg/bag, Customized Needs
Package: 500-12kg Weight: 700kg
Power Supply: 220V/380V, 50HZ, 1P/3P ( Customized) Power (KW): 3.2
High Light:

semi automatic bagging machine

,

5 kg pouch packing machine

,

5 kg bag filling machine

Product Description

Milk Powder Filling Machinery, Semi Automatic Flour Packing Line, Powder Bagging Scale DCS-SF



Parameters:

Model DCS-SF DCS-SF1 DCS-2SF
Weighing Range 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±0.2%FS
Packing Capacity 150-200bag/hour 250-300bag/hour 480-600bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Dimension (LxWxH)mm 3000x1050x2800 3000x1050x3400 4000x2200x4570
The size can be customized according to your site.
Weight 700kg 800kg 1000kg



DCS-SF is a new type of high-performance powder bagging scale developed by our company .It is suitable for flour, starch, feed, food, chemical industry, light industry, medicine and other industries. DCS-SF is mainly equipped with weighing mechanism, feeding mechanism, body frame, control system, conveyor and sewing machine, etc.




Functional features

Simple operation: adjust the weight through the instrument, the operation is simple and fast;

High precision: select high precision weighing controller, good reliability;



Save space: small floor area, flexible and convenient installation;



Adjustable scale speed: screw feeding, fast feeding and slow feeding are realized by the controller, and the feeding speed can be set arbitrarily;



Environmental protection operation: close the internal circulation system, effectively prevent dust flying, improve the working environment and protect the health of employees;



Reasonable structure: compact enough, small size, can be made into fixed or mobile body according to user requirements;



Optional parts: bag mouth folding machine, automatic sealing machine and dust removal unit can be selected.

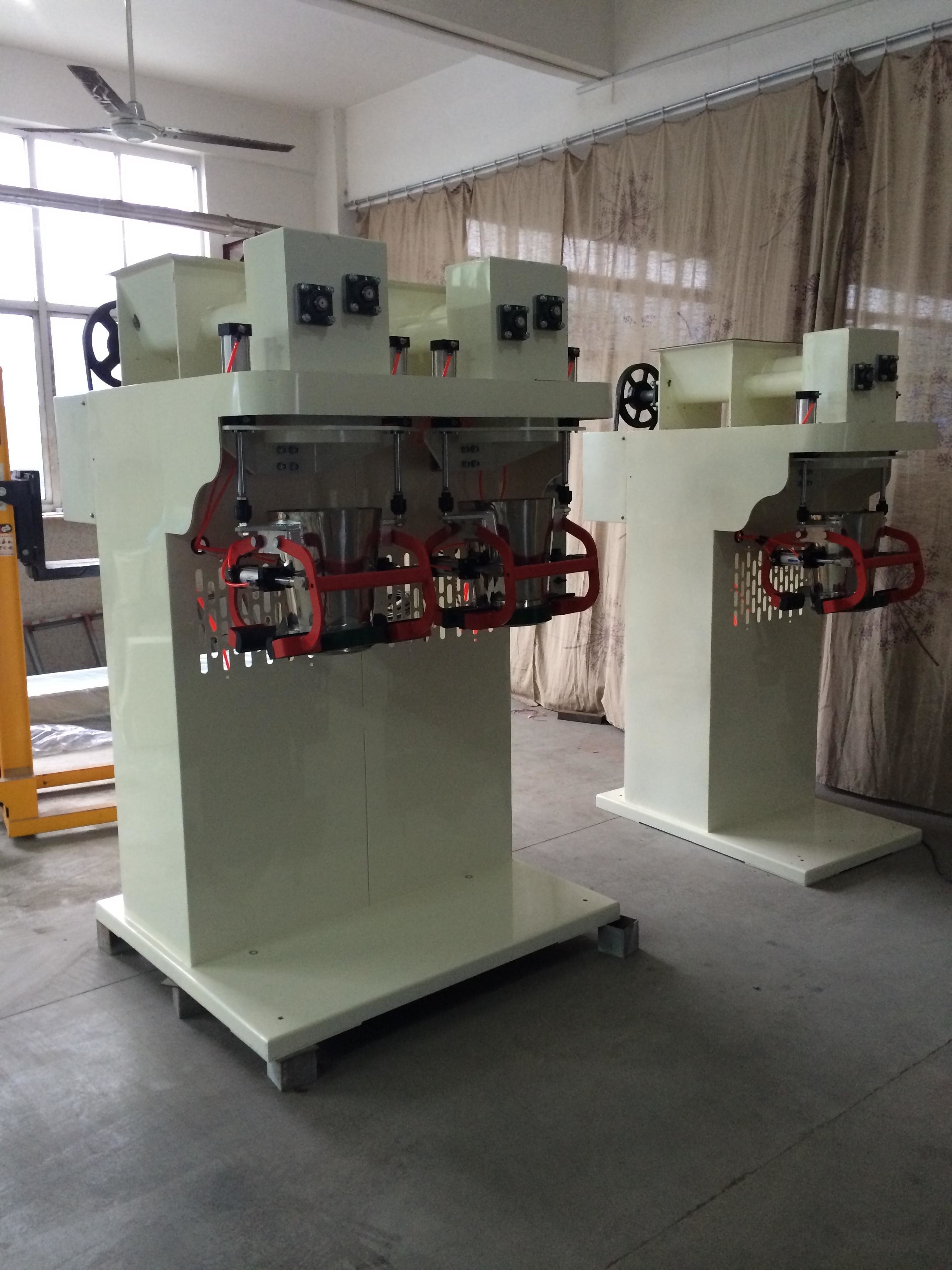

5 Kg Pouch Packing Powder Bagging Machine Semi Automatic Corn 3.2kw 05 Kg Pouch Packing Powder Bagging Machine Semi Automatic Corn 3.2kw 1



5 Kg Pouch Packing Powder Bagging Machine Semi Automatic Corn 3.2kw 2
