Potato Tapioca Starch Powder Pouch Packing Machine Scale Coffee Flour Bag Fill

Product Description

Potato Starch Bagging Equipment Packer Weigher, Coffee Powder Packing Machine, Tapioca Flour Bag Filling Equipment

This machine adopts the measuring method of the combination of screw filling and electronic weighing feedback, and has the functions of automatic quantitative, automatic filling, automatic correction error, counting, cleaning and so on.

Suitable for compound seasoning (such as spicy fresh), natural seasoning (thirteen incense), food additives, flavor spices, flour, milk powder,protein powder, solid drink, sugar, MSG, pesticides, veterinary drugs, washing powder, enzyme preparation, feed additives,
chemicals, new building materials (powder, superfine powder), quantitative filling packing, powder mixture.

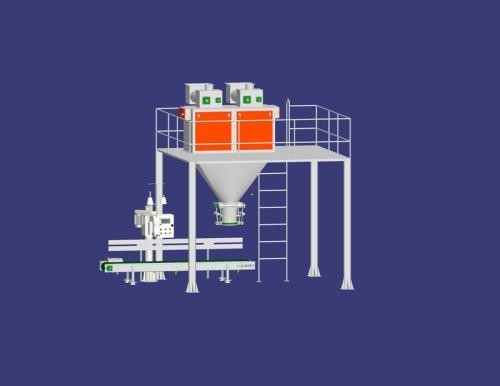

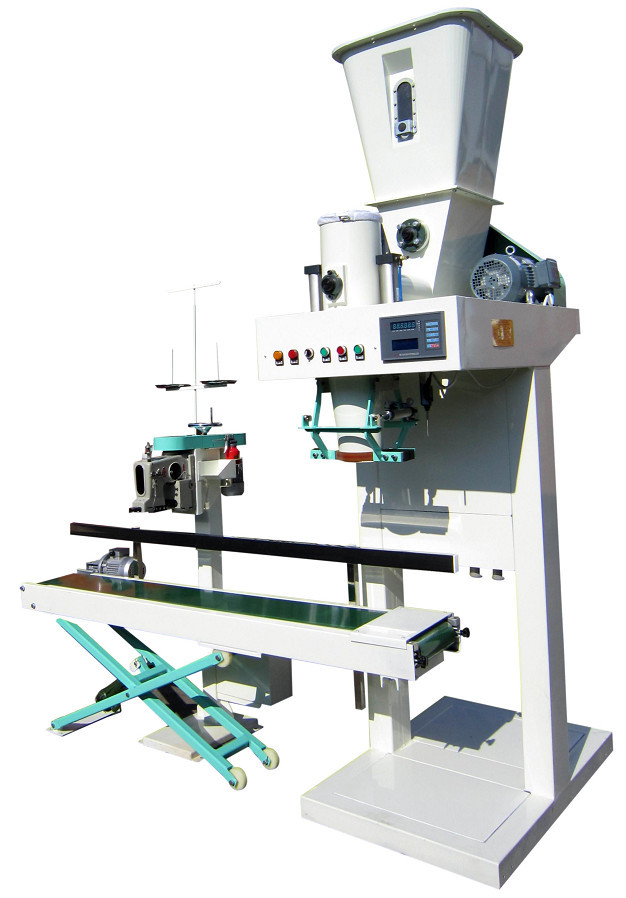

DCS-SF is a new type of high-performance powder bagging scale developed by our company .It is suitable for flour, starch, feed, food, chemical industry, light industry, medicine and other industries. DCS-SF is mainly equipped with weighing mechanism, feeding mechanism, body frame, control system, conveyor and sewing machine, etc.

Working principle

Before packaging, it is necessary to manually set the target weight on the instrument. The customer can adjust it according to the demand. Manually put the packaging bag on the blanking port, and then turn on the bag clamping switch. After receiving the bagging signal, the control system will drive the air cylinder, and the bag will be clamped by the bang holder. At the same time, the feeding mechanism will send the materials from the silo to the packing scale. The feeding mechanism is double screw feeding. When the target weight is reached, the bag clamper will automatically open. The packaging bag will fall on the conveyor, and the conveyor will be transported back to the sewing machine. The bag will be manually assisted to sew and output to complete the packaging process.

Functional features

Simple operation: adjust the weight through the instrument, the operation is simple and fast;

High precision: select high precision weighing controller, good reliability;

Save space: small floor area, flexible and convenient installation;

Adjustable scale speed: screw feeding, fast feeding and slow feeding are realized by the controller, and the feeding speed can be set arbitrarily;

Environmental protection operation: close the internal circulation system, effectively prevent dust flying, improve the working environment and protect the health of employees;

Reasonable structure: compact enough, small size, can be made into fixed or mobile body according to user requirements;

Optional parts: bag mouth folding machine, automatic sealing machine and dust removal unit can be selected.

About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
