5kg 50kg Wheat Flour Bag Packing Machines Milk Powder Filling Line

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Wheat Flour Bag Packer Auger Volume: 30/50L(can Be Customized)
Package (g): 100L(can Be Customized) Machine Material: SS 304
Power Supply: 380V (three-phase Five Wire), 50 / 60Hz Packing Speed: 20-60 BPM
Warranty: 1 Year
High Light:

50kg Wheat Flour Bag Packing Machines

,

wheat bag packing machine

,

flour bag sealing machine

Product Description

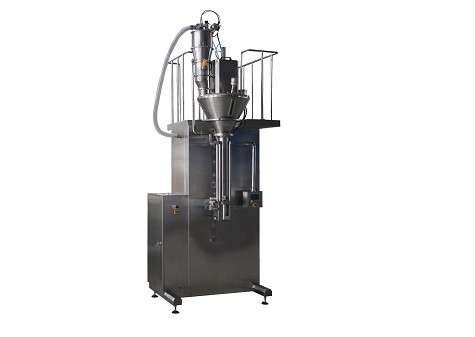

50kg Flour Packing Machines 5kg Wheat Flour Bag Packer, Milk Powder Filling Machinery

Description:



The semi-automatic filling and packaging machine can automatically complete the measurement, filling and so on. Designed according to national GMP standards, it is suitable for packaging powdery materials that are easy to flow or have poor fluidity, such as milk powder, milk tea, feed, rice flour, flour, solid beverage, glucose, rice flour, washing powder, solid medicine , pesticides, fertilizers, powdered additives, dyes, etc.



Machine model DCS-F
Filling method Screw metering (or electronic weighing)
Auger volume 30/50L(can be customized)
Feeder volume 100L(can be customized)
Machine material SS 304
Packing speed 20-60 BPM
Filling volume 1-1000g(can be customized)
Filling accuracy ±1%(different volume and material,accuracy will be little different)
Power specifications 220V 50hz
Machine weight 200kg
Outline dimension 1100*750*1750mm



Main Features:

1. Made of stainless steel 201/304, it is especially suitable for GMP certification, food hygiene certification, and packaging for anti-corrosion chemical products.

2. Touch screen machine operating system: stable operation, anti-interference, high weighing accuracy, convenient operation and intuitive. The weight of the package can be adjusted stepless at any time, and the working state can be changed at any time, and the operation is convenient.



Features:

1. Filling adopts stepping motor moving screw, which has the advantages of accurate positioning, high precision, fast speed, large torque, long life, settable speed and good stability.

2. Stirring adopts Taiwan-made maintenance-free geared motor: low noise, long life and maintenance-free life.

3. Designed to be called the feedback specific gravity tracking type, which overcomes the shortcomings of the weight change caused by the change of the specific gravity of the material.

4. Replace the screw attachment, which can adapt to a variety of materials such as ultra-fine powder to large particles.

5. Adopting domestic famous brand Electric Measurement and Electronic Scale” to control measurement and feedback.

6. Photoelectric switch control cutting, packaging containers (bags, cans) are not limited.

7. The whole machine processing adopts casting process to make the performance of the equipment more stable.

8. The host electronic control unit uses four automatic intelligent electronic fault alarm indications to provide customers with the efficiency of handling faults.



Function:

1. The powder packaging machine is a combination of machine, electricity, light and instrument, touch screen control, with automatic quantitative, automatic filling, automatic adjustment of measurement error and other functions.

2. Fast speed: using spiral cutting, light control technology.

3. High precision: using stepper motor and electronic weighing technology.

4. Wide packaging range: The same quantitative packaging machine can be adjusted and replaced by electronic scale keyboard in the range of 1g-2500g 1kg-10kg.

5. Used in conjunction with the packaging machine, controlled by the packaging machine to play a quantitative role, the equipment can be put into the material warehouse without the human operation of the self-feeding device, and the weighing of the screw is adjusted by the operation panel of the batching scale to weigh the quantity. , feeding method, indirect feeding mode, adjustable speed.

6. Wide application range: powdery and granular materials with certain fluidity can be suitable for quantitative packaging of various packaging containers such as bags, cans and bottles.

7. Tracking correction can be automatically made due to errors caused by material specific gravity and material level change.

8. Photoelectric switch control, only need manual bagging, bag mouth is clean, easy to seal.

9. The contact parts with materials are made of stainless steel, which is easy to clean and prevent cross-contamination.

10. Configurable feeding device, more convenient for users.



Packing Machine Technical Parameters
Model DCS-F DCS-SF
Packaging range 1g-2500g 1kg-10kg 5kg-25kg 20-50kg
Packing speed 200-1200 bags / hour 120-240 bags / hour
Dimensions 800* 830 *1900 830*1150*2600
Power supply AC380•50HZ 0.9KW AC380•50HZ 4.22KW
Control method Singlechip / Touch screen Touch screen
Weighing error ±1% ±0.2-2%



The above product information is for reference , according to the material properties (size, shape, fluidity, dust), speed, accuracy, specifications, output, etc., choose the appropriate model, please consult the sales staff first.
