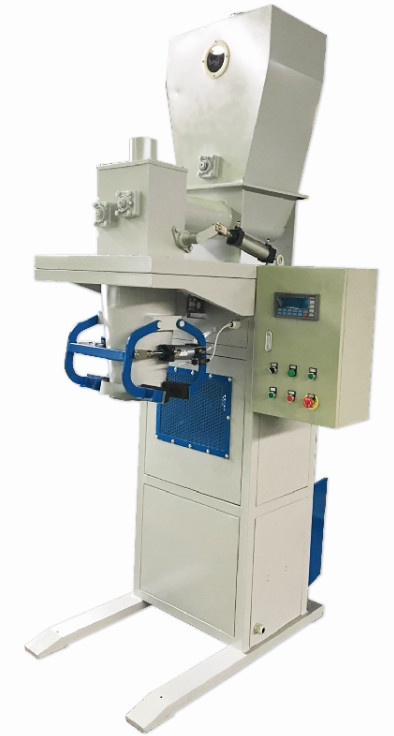

10 Kg Bag Automatic Powder Bagging Machine Scale For Compost Fishmeal Weighing

Minimum Order Quantity : 1 Price : Negotion
Packaging Details : Plywood Box Supply Ability : 100 sets
Place of Origin: China Brand Name: JL
Model Number: DCS-TB

Detail Information

Name: Fishmeal Bag Packaging Machinery Weighing Range: 1-5, 5-10, 10-25, 25-50 Kg/bag, Customized Needs
Precisions: ±0.2%FS Weight: 1000kg
Package (g): 500-12kg Packing Capacity: 480-600bag/hour
Power (KW): 6.6 Application: Food, Chemical, Machinery & Hardware
High Light:

10 kg bag packing machine

,

Bagging Machine for compost

,

10 kg bag sealing machine

Product Description

Fishmeal Bag Packaging Machinery, automatic powder weighing scale, powder bagger machine with degassing device

This packing machine is ideal for powder products (milk powder, coffee powder, flour, spice, cement , curry powder, ect.)



DCS-VSFD powder degassing bagging machine is suitable for ultra-fine powders from 100 mesh to 8000 mesh. It can complete the work of degassing, lifting filling measurement, packaging, transmission and so on.



1. The combination of vertical spiral feeding and reverse stirring makes the feeding more stable, and then cooperates with the cone bottom type cutting valve to ensure the controllability of the material during the feeding process.

2. The whole equipment is equipped with an openable silo and quick-release screw assembly, so that the parts of the whole equipment that are in contact with the materials are cleaned, simple and fast, without dead corners.

3. Lifting weighing, combined with screw vacuum degassing and filling device, there is no dust lifting place while ensuring the accuracy of packaging.

4. Touch screen man-machine interface, convenient and intuitive operation, packaging specifications can be adjusted, working status can be switched at any time.



Technical parameters



Weighing range 10-25kg / bag
Packaging accuracy ≤± 0.2%
Packing speed: 1-3 bags / min 1-3 bags / min
Power supply 380V, 50 / 60Hz
Degassing unit yes
Power 5KW
Weight 530kg





10 Kg Bag Automatic Powder Bagging Machine Scale For Compost Fishmeal Weighing 010 Kg Bag Automatic Powder Bagging Machine Scale For Compost Fishmeal Weighing 1



About us:



Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.



No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
