Industrial Bag Flattener System Machine Shaping Automatic Auxiliary Equipment
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
Detail Information |
|||
Type: | Automatic Continuous Heat Sealing Machine | Automatic Grade: | Automatic |
---|---|---|---|
Thread Type: | 20S/5, 20S/3, Synthetic Fibre Thread | Sealing Speed (M / Min): | 0-12 |
Warranty: | 1 Year | Total Power (KW): | 4 |
Transmission Power (KW): | 0.75 | Product Name: | 20-50kg Bag Slitting Machine |
After Warranty Service: | Video Technical Support, Spare Parts, Field Maintenance And Repair Service | ||
High Light: | horizontal continuous heat sealer,automatic continuous bag heat sealer sealing machine,continuous heat sealer machine |
Product Description
Introduction

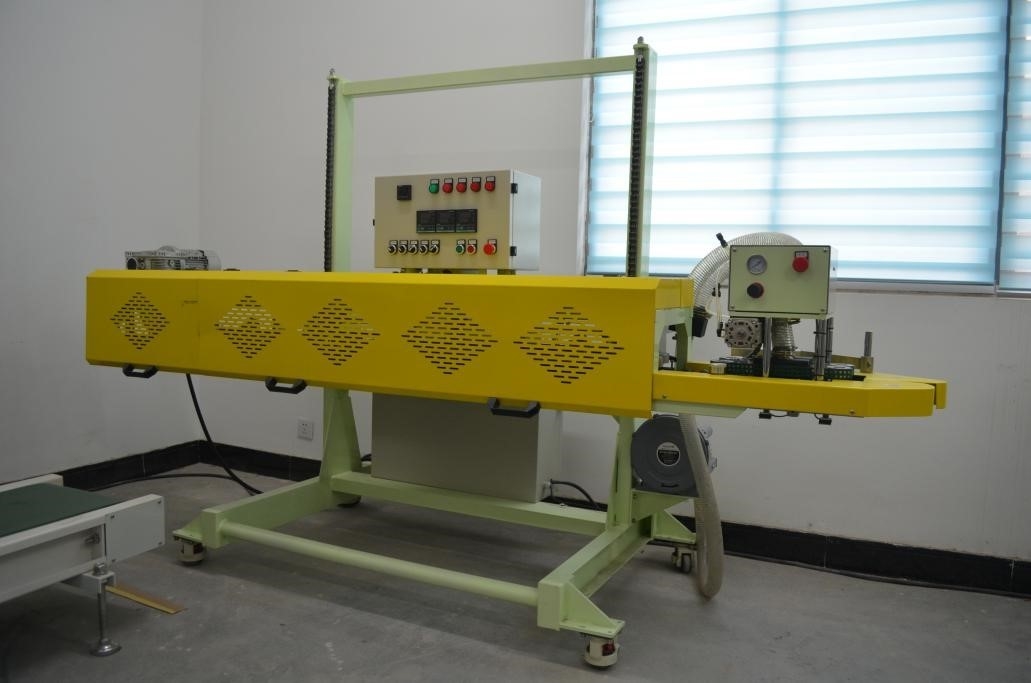

Automatic continuous heat sealing machine can heat and seal thick PE or PP plastic bags with high quality, high efficiency and continuity, as well as paper plastic composite bags and aluminum plastic composite bags; it is widely used in chemical , pharmaceutical , grain, feed and food industries.
Technical parameters
Model | DCS-32 |
Supply voltage(V/Hz) | Three phase(3PH)AC 380/50 |
Total power (KW) | 4 |
Transmission power (KW) | 0.75 |
Electric heating power (KW) | 0.5×6 |
Sealing speed (M / min) | 0-12 |
Plastic bag material (mm) | Polyethylene (PE) ,polypropylene (PP) film |
Total thickness of plastic bag (mm) | ≤1.0 |
Sealing width (mm) | 10 |
Distance from sealing center to ground (m) | 750-1450 |
Temperature control range (℃) | 0-300 |
Air supply pressure (Mpa) | 0.6 |
Cooling mode | wind cooling |
Overall dimension (L) × W × H)(mm) | 2830×950×1800 |
Net weight (kg) | 320 |
About us
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.
No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
