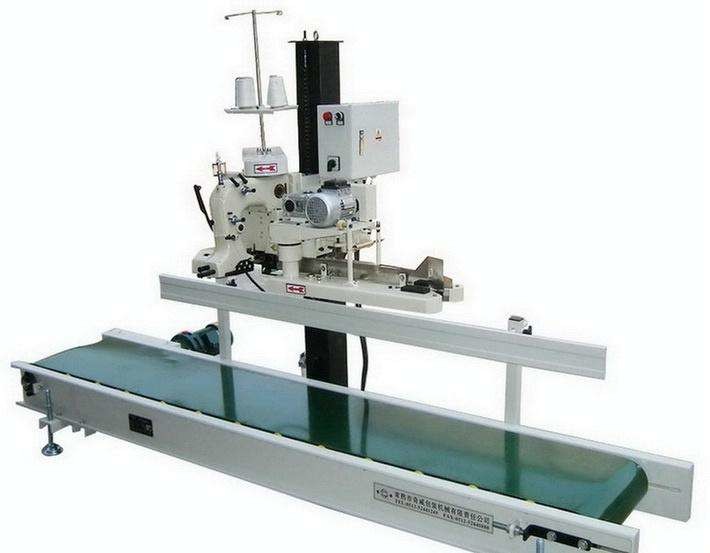

20kg 50kg Bagging Sewing Machine Stitching Seaming Bags Knitting Auxiliary Equipment

Minimum Order Quantity : 1 set Price : $12,000.00 - $23,000.00/Pieces
Packaging Details : PLYWOOD BOX Supply Ability : 100 Set/Sets per Month
Place of Origin: China Brand Name: JL

Detail Information

Type: Sewing Machine Automatic Grade: Automatic
Thread Type: 20S/5, 20S/3, Synthetic Fibre Thread Voltage: 380v
Warranty: 1 Year Marketing Type: Hot Product 2022
Max. Speed: 1900 Rpm Product Name: 20-50kg Bag Slitting Machine
After Warranty Service: Video Technical Support, Spare Parts, Field Maintenance And Repair Service
High Light:

50kg bagging sewing machine

,

20kg bagging sewing machine

,

bags knitting machine

Product Description

Sewing machine mainly completes the stitching and seaming of bags or knitting.

Sewing machine is a device for sewing the mouth of plastic woven bags, paper bags, paper-plastic composite bags, aluminum-coated paper bags and other bags. It mainly completes the stitching and seaming of bags or knitting.



Features:
1. Suitable for sewing of PP woven bags, gunny bags, cloth bags and paper bags;
2. A number of improved design: sewing bag counting, jog sewing, jog cutting;
3. Spring type presser foot pressure adjustment;
4. With automatic thread cutter function;
5. High quality sewing performance, mechanical properties;
6. 3 meters converyor belt.Its features simple structure and operation. High accuracy attaching and reliable property.



Technical parameters



Model GK35-2C GK35-6A GK35-8
Max. Speed 1900 Rpm 2000 Rpm 1900 Rpm
Thickness of material 8 mm 8 mm 8 mm
Range of Stitch width 6.5-11 mm 6.5-11 mm 6.5-11 mm
Thread type 20S/5, 20S/3, Synthetic fibre thread
Needle Model 80800 ×250#
Thread chain Cutter Manual Electro-pneumatic Electro-pneumatic
Weight 27 Kg 28 Kg 31Kg
Size 350×215×440 mm 350×240×440 mm 510X510X335 mm
Start-stop Type pedal switch light-controlled switch pedal switch
Re-mark Single-Needle, Two-Thread Double-Needle, Four-Thread




About us

Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.



Wuxi Jianlong offers a wide range of knowledge about packaging machines and related ancillary equipment, bags and products, as well as packaging automation solutions. Through the careful testing of our professional technology and R & D team, we are committed to providing perfect customized solutions for every customer. We combine the international quality with the Chinese local market to provide an ideal automatic / semi-automatic, environmental friendly and efficient automatic packaging system. We are constantly striving to provide customers with intelligent, clean and economical packaging equipment and industrial 4.0 solutions by combining rapid localization service and spare parts delivery.


No matter what solutions we offer you, such as material characteristic analysis, packaging bag analysis or feeding, conveying, filling, packaging, palletizing, automatic design and turnkey engineering, we are looking forward to be your reliable long-term partner.
