Industrial Bag Flattener System Machine Shaping Automatic Auxiliary Equipment
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
Detail Information |
|||
Type: | Filling Machine | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Food & Beverage Shops |
---|---|---|---|
Showroom Location: | None | Condition: | New, New |
Application: | Food, Commodity, Chemical | Packaging Type: | Other |
Packaging Material: | Other | Automatic Grade: | Automatic |
Driven Type: | Electric, Electric | Voltage: | 380v |
Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
Machinery Capacity: | - | Filling Material: | Other |
Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
Core Components: | Other | Product Name: | 20-50kg Bag Slitting Machine |
Capacity: | 100 To 800 Bags/hour Of 25 To 50 Kg. | Type Of Bags: | Except Jute Made, All Other Material Bags |
Material Retention: | 2% Maximum | Machine Specification(Weight ): | 50Kgs/bag |
Particle Sizes: | Powder & Pellets Of Free Flow Characteristics. | After Warranty Service: | Video Technical Support, Spare Parts, Field Maintenance And Repair Service |
Local Service Location: | None | After-sales Service Provided: | Online Support, Video Technical Support |
Port: | Shanghai |
Product Description
25-50kg automatic bag slitting machine, bag slitting system,automatic bag emptying machine
Working principle:

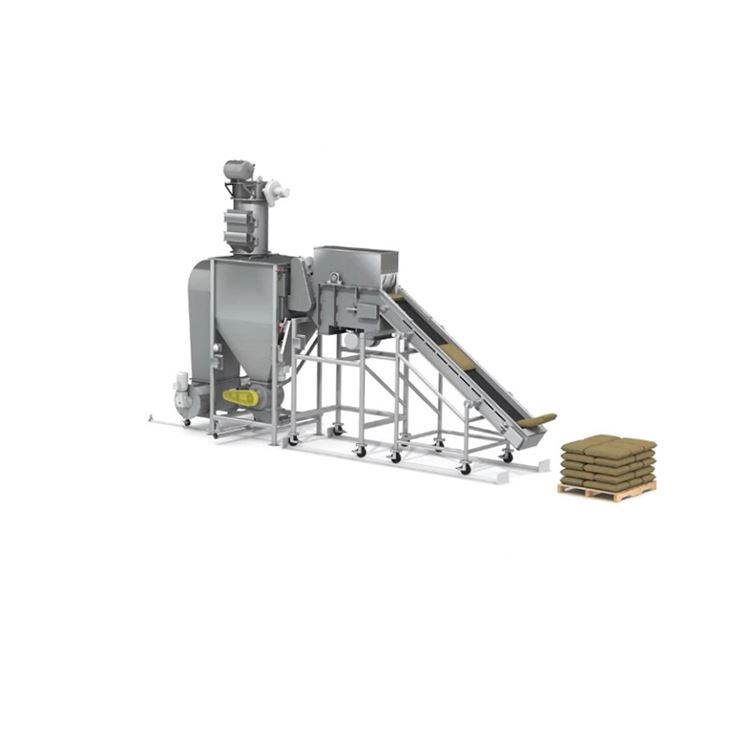

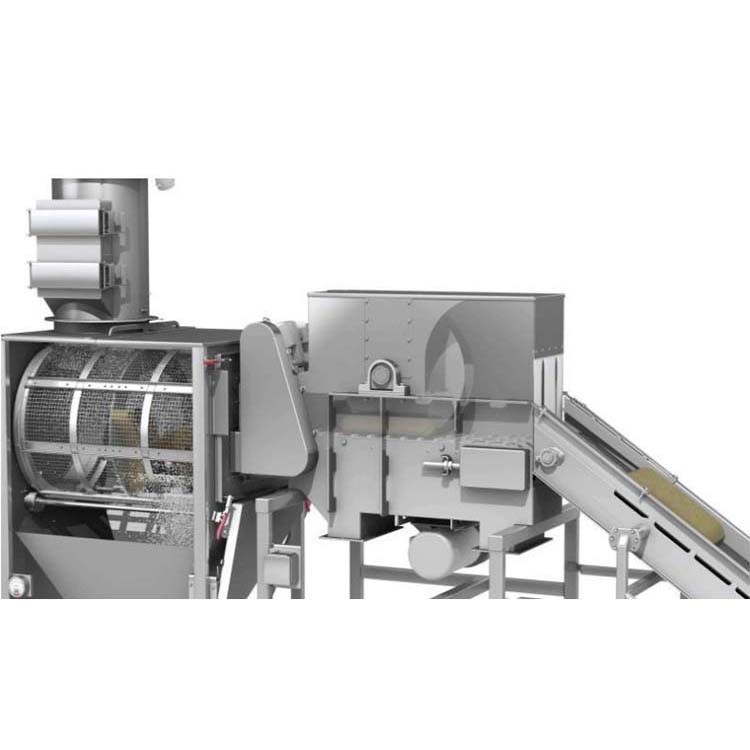

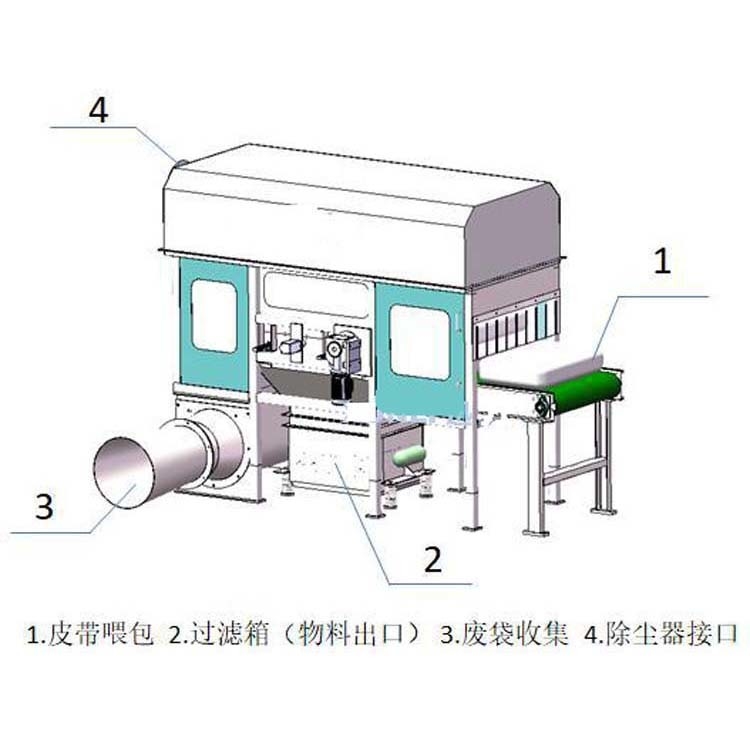

Automatic bag slitting machine is mainly composed of belt conveyor and main machine. The main machine is composed of base, cutter box, drum screen, screw conveyor, waste bag collector and dust removal device.
The bagged materials are transported to the slide plate by the belt conveyor, and slide along the slide plate by gravity. During the sliding process, the packaging bag is cut by fast rotating blades, and the cut residual bags and materials slide into the drum screen for screening. The materials dropped from the drum screen are output by screw conveyor, and the damaged packaging bags, impurities and caking materials are taken out of the body by the drum screen. The dust caused in the process of cutting knife breaking bag is collected by bag filter and shaken into screw conveyor through pulse control system (the materials output from screw conveyor can be transported to material storage tank by pipe chain conveyor or pneumatic conveying device).
Technical Specification:
MoC | Available in mild steel construction with optional coatings & stainless steel with optional finishes |
Capacity | 100 to 800 bags/hour of 25 to 50 kg |
Type of bags | Except Jute made, all other material bags |
Material Retension | 2% maximum |
Bag size | up to 700mm*400mm*145mm (weight-50kg/bag) |
Emptying efficiency | 98%– 99% depending on flowing characteristics of the material |
Particle size | Powder & pellets of free flow characteristics |
Wuxi Jianlong Packaging Co., Ltd.
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
