Industrial Bag Flattener System Machine Shaping Automatic Auxiliary Equipment
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
| Price : | $600.00/Pieces 1-4 Pieces | Supply Ability : | 1000 Set/Sets per Month |
|---|
| Place of Origin: | Jiangsu, China | Brand Name: | Jianlong |
|---|---|---|---|
| Certification: | CE |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Construction Works , Energy & Mining, Food & Beverage Shops, Other | Condition: | New |
|---|---|---|---|
| Type: | Industrial Sewing Machine | Stitch Formation: | Chain Stitch |
| Mechanical Configuration: | Flat-Bed | Max. Sewing Thickness: | 15mm |
| Stitch Length: | 8mm | Power: | 0.25kw |
| Overall Dimensions: | 500mm*500mm*500mm | Feed Mechanism: | Manual |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other, Gear, Motor |
| Weight (KG): | 30 KG | Product Name: | GK35-6 Bag Sewing Machine |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | After-sales Service Provided: | Video Technical Support, Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Marketing Type: | Ordinary Product | Port: | Shanghai |
| High Light: | 25kg bagger sewing machine,bagger sewing machine Open mouth,bagging packing machine |
||
Product Description
Introduction:

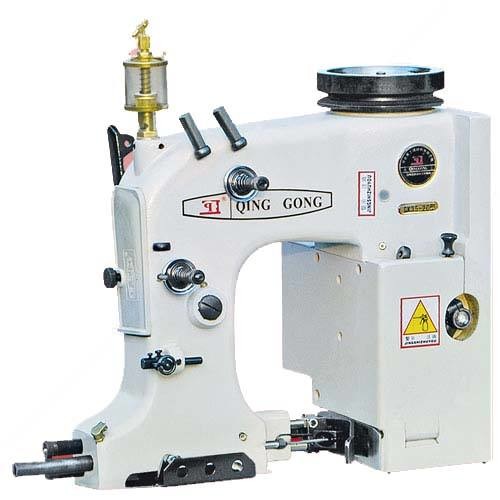

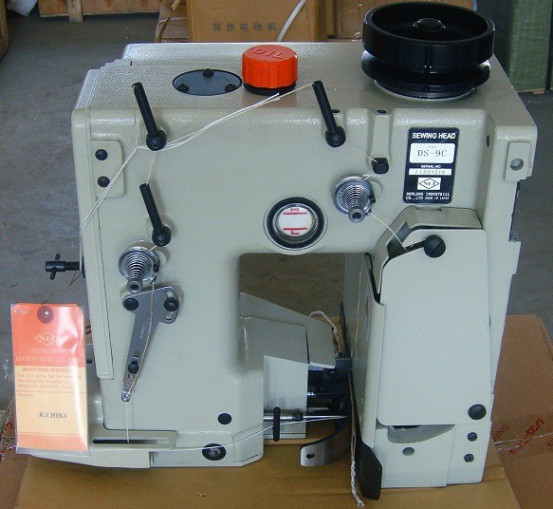

Sewing machine is a device for sewing the mouth of plastic woven bags, paper bags, paper-plastic composite bags, aluminum-coated paper bags and other bags. It mainly completes the stitching and seaming of bags or knitting.
Parameters:
| Model | GK35-2C | GK35-6A | GK35-8 |
| Max. Speed | 1900 Rpm | 2000 Rpm | 1900 Rpm |
| Thickness of material | 8 mm | 8 mm | 8 mm |
| Range of Stitch width | 6.5-11 mm | 6.5-11 mm | 6.5-11 mm |
| Thread type | 20S/5, 20S/3, Synthetic fibre thread | ||
| Needle | Model 80800 ×250# | ||
| Thread chain Cutter | Manual | Electro-pneumatic | Electro-pneumatic |
| Weight | 27 Kg | 28 Kg | 31Kg |
| Size | 350×215×440 mm | 350×240×440 mm | 510X510X335 mm |
| Start-stop Type | pedal switch | light-controlled switch | pedal switch |
| Re-mark | Single-Needle, Two-Thread | Double-Needle, Four-Thread | |
Wuxi Jianlong Packaging Co., Ltd.
Wuxi Jianlong Packaging Co., Ltd. is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. Wuxi Jianlong has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
|
