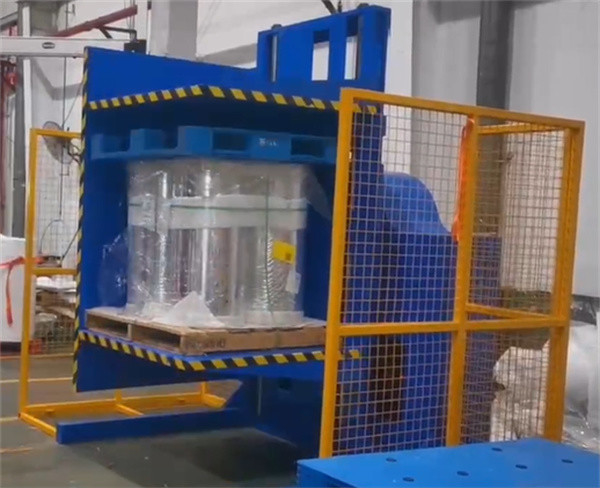

2200mm Pallet Inverter System Changing Machine Flippers Turners 2000kg

Minimum Order Quantity : 1 Packaging Details : seaworthy wooden box
Delivery Time : 30 days
Place of Origin: China Brand Name: JL
Model Number: DCS-PI

Detail Information

Driven Type: Hydraulic Height(including Goods)  : 1100-2200mm
Max Load: 2000kg Inverting Angle: 180°
Pallet Width: 1000-1100mm Pallet Length: 1000-1300mm
Inverting Speed: 45s To 50s
High Light:

Pallet inverter system changing machine


2200 mm Pallet Inverter System


2000kg Pallet Inverter Changing Machine

Product Description

Product Description:

A Pallet Rotator is the most productive and efficient way to replace broken pallets, switch from premium in-house pallets to shipping pallets, turn inventory for freshness, and replace damaged goods at the bottom of a pallet load without the need for manual restacking. The adjustable pressure clamping mechanism easily secures and rotates pallet loads a full 180°, and can be stopped at any point during rotation. Designed To Handle Uniform Loads With A Maximum Palletized Dimension of 48" clamping length x 48" clamping width x 60" clamping height..



  • Product Name: pallet rotator
  • Pallet width: 1000-1100mm
  • Max load: 2000kg
  • Height (including goods): 1100-2200mm
  • Pallet length: 1000-1300mm
  • Inverting angle: 180°
  • Features: Pallet Changing Machine, Pallet Flipper, Pallet Rotator

Technical Parameters:

Parameter Details
Inverting angle 180°
Pallet width 1000-1100mm
Height (including goods) 1100-2200mm
Driven type Hydraulic
Pallet length 1000-1300mm
Max load 2000kg
Product Name Pallet Turner/Pallet Flipper/Pallet Turner Machine

Pallet tipper:inverting and tilting method:

Pallet changers using the tilting and inverting method are particularly suitable for sacks, drums or overhanging goods – so whenever the goods are insensitive but not very stable. These machines, called pallet tipper can easily handle different pallet sizes and poor pallet quality.

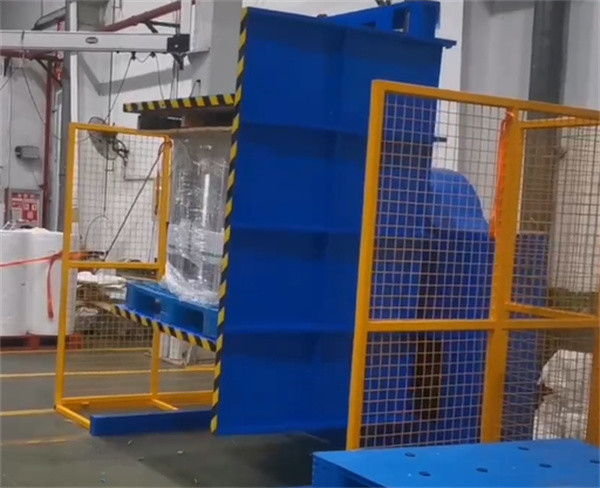

Up to 40 pallets can be changed per hour. In the tilting process, two side walls fix the goods. Then the palletizer tilts backwards up to 135 °. The pallet can be individually tilted back and easily replaced at floor level.

Both methods resemble each other and can therefore be mentioned in the same breath: Pallet changers using inverting method (so called pallet inverters) and pallet changers using the tilting method, tilt the load to a certain angle.

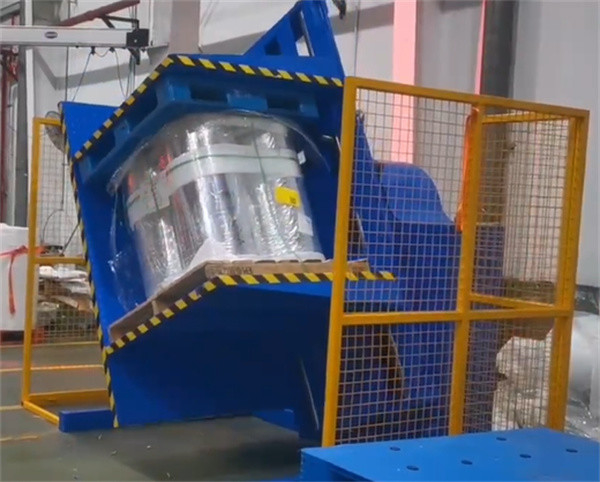

The differences between the two techniques: Pallet inverters rotate the goods 180 degrees. This means that the load is turned upside down. Pallet changers using tilting method, however, turn the loaded pallet backwards only 92 to 135°. Both methods are normally used for robust goods, such as sacks, drums or cardboard boxes. They are also ideal for the pallet changing with overhanging load.



Customized pallet inverter by JL

Our pallet changing  machine is manufactured by JL, Model Number: DCS-PI, and made in China. It is a hydraulic driven pallet flipper, pallet turner, and pallet inverter. The pallet width is from 1000-1100mm and it can support a max load of 2000kg. The height of goods including the pallet is 1100-2200mm. The inverting angle of our machine can reach 180°.
