Portable Mobile Bagging System Unit Weighing 20kg 100kg

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Mobile Containerized Bagging System Type: Multi-Function Packaging Machine
Weighing Range: 20-100kg Accuracy: +/- 0.2%
Working Temperature: -20℃-40℃ Packing Speed (bag/hour): 700
Power: 220V/380V
High Light:

Portable Mobile Bagging System 100kg


Mobile Bagging Systems 100kg


mobile bagging unit 100kg

Product Description

Wharf Dock Mobile Auto Weighing Packing Container Machine for Grain and Fertilizer Quantitative Packing Scale

Product description:

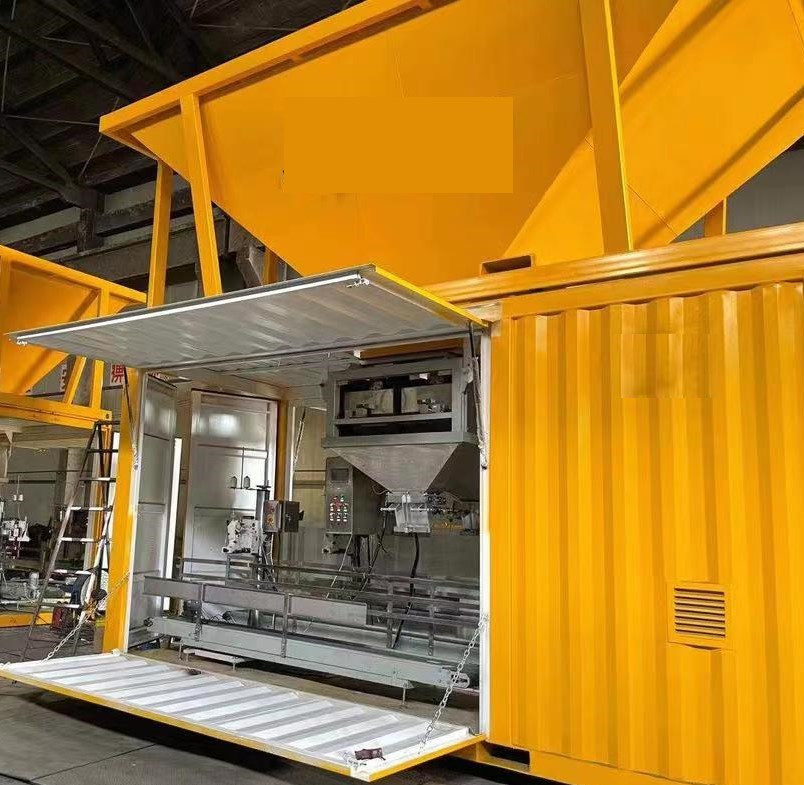

Its wall is made of corrugated steel sheet or standard container with thermal insulation material or blowing promoter and so on in between, featuring rigid construction, light weight, nice look, fire protection and vibration proof. There is Automatic packer with double or multi-stations are available, also has sealer, conveyor, and air conditioner. It can operate smoothly under negative 30 degree Celsius and improves packing efficiency and environment, and work condition of intension. It is specially designed for weight measurement of materials such as grain, feed, fertilizer, and PVC etc in the field of garner, railway station, port etc.


Mobile bagging machine is widely used for bulk packaging in the ports,docks, grain depots, mines, and will help you out of the problem,simply put which will help you in three ways.
a) Good mobility.With container structure, all devices are integrated in two containers, it is very conveniently for you to transit to anywhere you want.After it finishes its work,you can take it to next working place easily.
b) Save time and space.With container structure,all devices are integrated in two containers, which needs less space.All machines in the containers have been installed and debugged before leaving the factory, Also they don't need a base foundation,which really help you save a lot of time.
c) Less pollution and injury. Closed operation of devices can greatly reduce injury and pollution from material dusts to human beings and the environment.


Performance Characteristics
* In container structure, all devices are integrated in two containers.
* Intelligent instrument control, easy operation, maintenance and low failure rate.
* Closed operation of devices can greatly reduce injury and pollution from material dusts to human beings and environment.
* Packaging materials: various fertilizers, aluminauxide,sulphur,feedstuff, sugar,food (such as tapioca ships, soybean, wheat) etc.

Technical parameters

Production line

Weighing range

Packing speed

Air source
DSC-MC12 Single-line,
double scale
20-100kg +/- 0.2% 700 0.5-0.7Mpa
DSC-MC22 Double-line,
double scale
20-100kg +/- 0.2% 1500 0.5-0.7Mpa
Power AC380V,50HZ, or customized according to the power supply
Working temperature -20℃-40℃
Bag type Open mouth bag, valve port bag, PP woven bag, PE bag, Kraft paper bag,Paper-plastic composite bag,Aluminum foil bag
Feeding mode Gravity flow feeding,auger feeding,belt feeding,vibrating feeding
Packing mode Automatic quantitative weighing, manual bagging,automatic filling,manual assistance, machine sewing


Inside Details
Portable Mobile Bagging System Unit Weighing 20kg 100kg 0Portable Mobile Bagging System Unit Weighing 20kg 100kg 1
