Compost packing machine organic fertilizer weighing filling and bagging machine

Minimum Order Quantity : 1 set Price : Negotion
Packaging Details : plywood box Delivery Time : 30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 100 sets
Place of Origin: China Brand Name: JL

Detail Information

Name: Compost Bagging Machine Motor: 3KW
Weight Range: 10-50kg Application: Compost,organic Fertilizer
Origin: China Bag Size: 650*400*200mm
Dimension: 3500*2600*2600(mm) (it Is Detachable And Can Be Put In One 20’ Container)
High Light:

20kg bag Silage Bagger Machines

,

20kg bag Silage Bagger Machine Alfalfa

,

20kg bag alfalfa packing machine

Product Description

Compost packing machine organic fertilizer weighing filling and bagging machine



What is compost packing machine ?

Compost packing machine is a kind of mechanical equipment for packaging compost. It is mainly used for automatic packaging of bulk compost to improve packaging efficiency and accuracy. Compost packaging machine is usually composed of conveying system, weighing system, filling system,packaging system, sewing/sealing system. It can automatically load the compost into the bag according to the preset weight target, and seal it, and finally output the finished bag. The use of compost packaging machine can greatly improve the efficiency of fertilizer packaging, reduce manual operation, reduce labor intensity, and ensure the consistency of packaging quality.



How it works?

Weighing system: The compost enters the weighing hopper from the feeding port, and the weighing system will automatically weigh the bulk fertilizer until the weight reaches the preset value



Bagging system: Once the weighing is completed, the bagging system will load the correct weight of fertilizer into the packaging bag. This is usually done through an opening device to guide the fertilizer into the packaging bag.



Sealing system: After bagging is completed, the sealing system (sewing machine or heating sealer) will seal the packaging bag to ensure that the fertilizer does not leak.



Output system: After sealing is completed, the finished packaging bags will be conveyed through a belt conveyor for further processing or transportation.



The entire process is usually controlled by a control system, greatly improving packaging efficiency and accuracy, and reducing the need for manual operations



Structure

Compost packaging machine is usually composed of conveying system, weighing system, filling system,packaging system, sewing/sealing system



Compost packing machine organic fertilizer weighing filling and bagging machine 0

Technical parameters



Model DCS-BF DCS-BF1 DCS-2BF
Weighing Range 5-10, 10-25, 25-50 Kg/bag, customized needs
Precisions ±3-5pcs/bag
Packing Capacity 150-200bag/hour 180-250bag/hour 350-500bag/hour
Power supply 220V/380V, 50HZ, 1P/3P ( Customized)
Power (KW) 3.2 4 6.6
Working pressure 0.4-0.6Mpa
Weight 700kg 800kg 1500kg

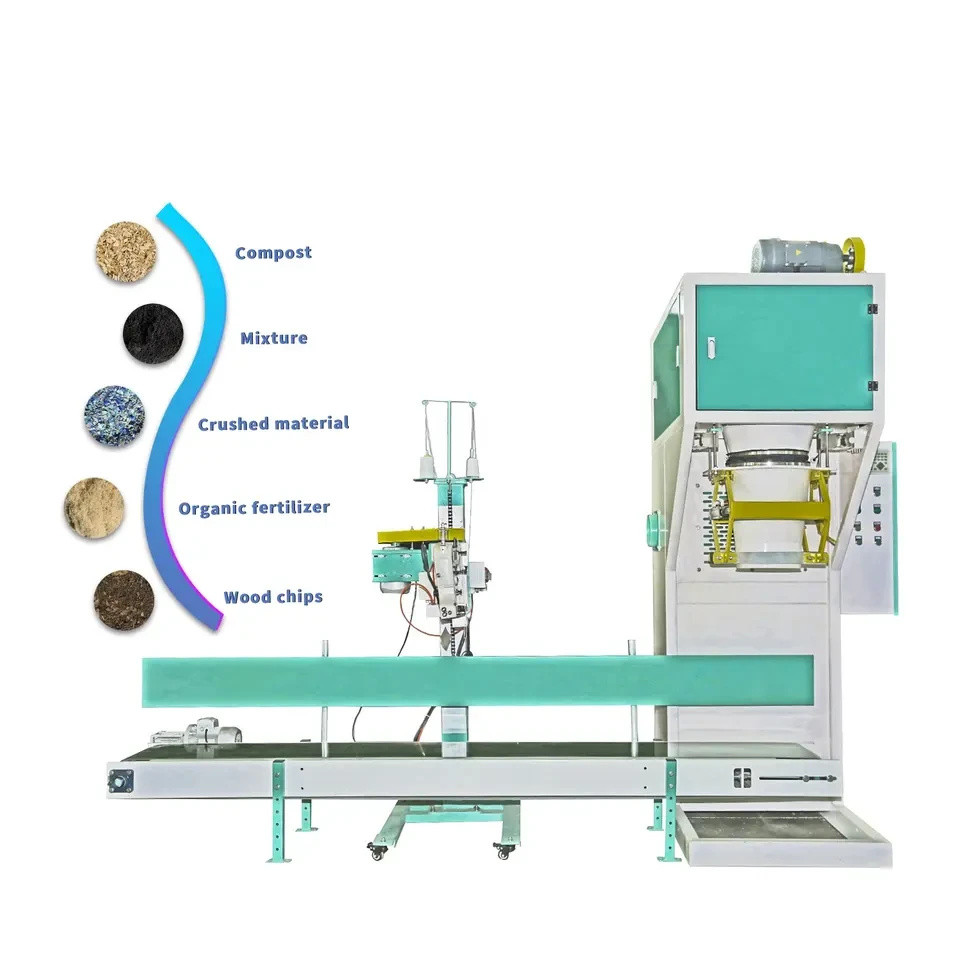

Applicable materials:

Compost.organic fertilizer, soil, sand,gravel,lime block,coal briquette,river sand,charcoal ball and soon

Compost packing machine organic fertilizer weighing filling and bagging machine 1

Bag type:

5kg-50kg open mouth bag including PP woven bag, PE bag, Kraft Paper Bag



Drawing:

Compost packing machine organic fertilizer weighing filling and bagging machine 2

Configurations

Compost packing machine organic fertilizer weighing filling and bagging machine 3



Production Process

1: Raw Materials
2: Drilling
3: Cutting
4: Folding
5: Welding
6: Programming
7: Assembling and Debug
8: Inspection
9: Packing
10: Container loading

Compost packing machine organic fertilizer weighing filling and bagging machine 4
