Automatic Big Bag Unloader Powder Food Jumbo Big Bag Discharge Systems
Contact Person : Yark Wang
Phone Number : 86-18020515386
WhatsApp : +8618020515386
Detail Information |
|||
Name: | Manual Bag Dump Stations | Capacity: | 100 To 800 Bags/hour Of 25 To 50 Kg. |
---|---|---|---|
Type Of Bags: | Except Jute Made, All Other Material Bags | Material Retention: | 2% Maximum |
Machine Specification: | Bag Sizes Up To 700mm X 400mm X 145mm (Weight – 50Kgs/bag) | Emptying Efficiency: | – 98% – 99% Depending On Flowing Characteristics Of The Material |
High Light: | powder bag unloader,sausage bag unloader,tote bag unloader |
Product Description

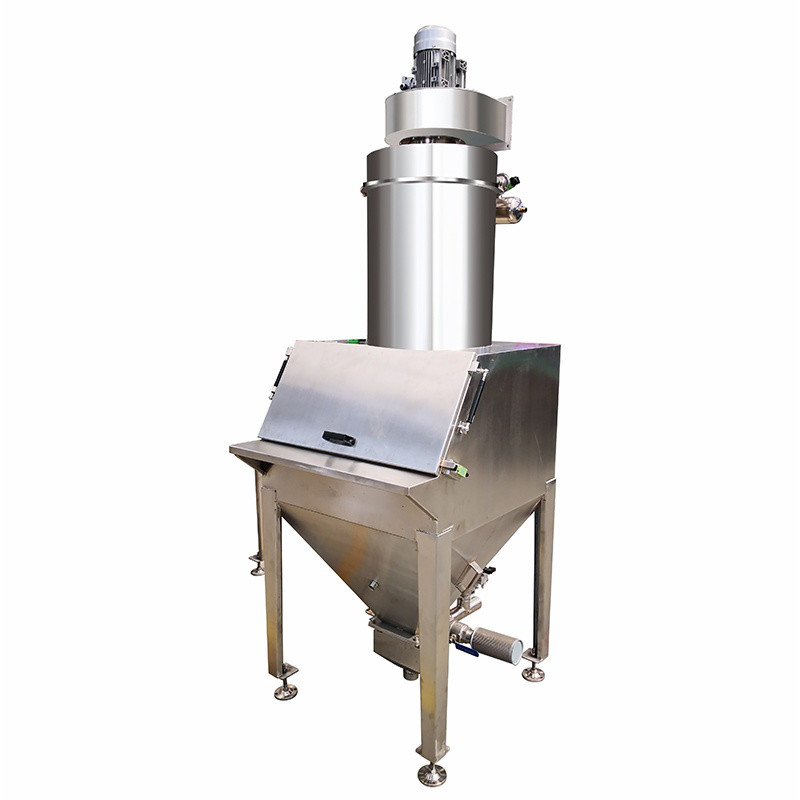

20-50kg manual bag dumping station (also known as manual bag dump station ) is a manual equipment used for the manual unpacking and unloading of small bag (range from 5kg bag to 100kg bag) material to the next working process. The equipment is equipped with built-in filter and dust collector, which will free the workers from the polluted working environment.
Bulk bag unloading station,big bag unloading station,jumbo bag unloading station
Bulk bag unloading station is mainly to solve the impact of flying dust on the environment during the bag opening process, and reduce labor intensity of the workers. This system not only effectively protects the environment and reduces the working intensity, but also improves the production efficiency, and solves the phenomenon that materials in the bulk bags are caking and difficult to discharge due to moisture absorption during the bag opening process.
Technical Parameters
Bag removal specification | ≤ 1000x1000x1600 |
Working power supply | AC380V ± 5% 50Hz |
Air source pressure | ≥ 0.6MPa |
Air consumption | 0.6m ³/ min |
Dust removal air volume | 800-2500m ³/ h |
Bag removal capacity | 10-15 bags / hour (manual bag removal) |
